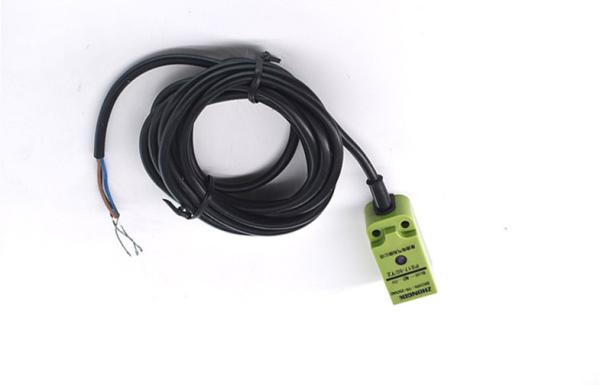

Compact Safety Proximity Switch , Inductive Type Proximity Sensor Two - Wire
Compact Safety Proximity Switch , Inductive Type Proximity Sensor Two - Wire
Specifications
Model Number :
PS17-5DY2
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000only 8day
Place of Origin :
China
Brand Name :
Zhongde
Certification :
CE
Name :
Inductive Type Proximity Sensor
Feature :
Compact
Material :
ABS
Voltage :
AC
Output Method :
NPN/PNP
Induction Method :
Normally closed
Description

Compact Safety Proximity Switch , Inductive Type Proximity Sensor Two - Wire

Description

Safety Proximity Switch is designed as per chemical industry standard.

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Features

Easy to install

High durability

High strength

Details

Two-wire

NPN/PNP

Normally closed

AC

Parameter

Lag distance Less than 10% of the detection distance
Detecting objects Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage DC : DC 12~24 (6~36V) pulse (p-p) below 10%
AC : AC 110~220V (36~250V) 50/60Hz
Current consumption N.P : ≤13mA
D : ≤0.8mA
A : ≤1.7mA
Control output N.P : ≤300mA
D : ≤200mA
A : ≤400mA
Loop protection N.P.D : reverse connection protection, surge absorption, load short circuit protection
A : surge absorption
Ambient temperature -30~+65°C (no icing, no condensation)
Ambient humidity -35~95%RH
Insulation resistance 50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect -30~+65°C: detection distance error ±15% at +23°C
-25~+60°C: detection distance error ±10% at +23°C
Voltage effect 6-36V (90-250V) : ±15% of detection distance error
10-30V (220V) : ±10% of detection distance error
Protection level IP67 (IEC)
Material Housing: ABS
Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.
