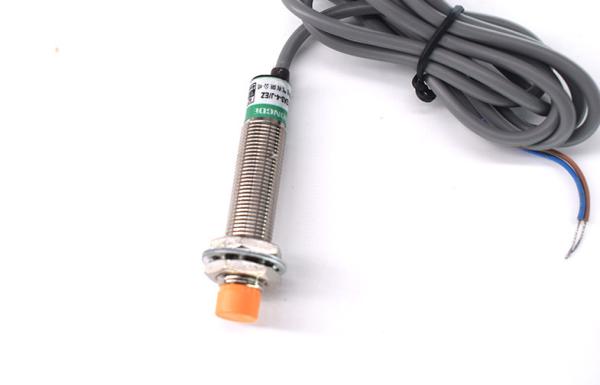

Cylinder Normally Open Proximity Switch , Normally Open Sensor Good Stability
Cylinder Normally Open Proximity Switch , Normally Open Sensor Good Stability
Specifications
Model Number :
LJ12A3-4-J/EZ
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000only 8day
Place of Origin :
China
Brand Name :
Zhongde
Certification :
CE
Feature :
Good Stability
Name :
Normally Open Sensor
Size :
M12
Voltage :
AC
Output Method :
NPN/PNP
Induction Method :
Normally Open
Description

Cylinder Normally Open Proximity Switch , Normally Open Sensor Good Stability

Introduction

DC VDC: When the sensor indicates that the power supply for the VDC, it is strongly recommended to use switching power supply.

AC VAC: When the sensor is marked for VAC, it can be used within the indicated AC voltage range

Two-line NPN/PNP normally open AC

Parameter

Lag distance Less than 10% of the detection distance
Detecting objects Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage DC : DC 12~24 (6~36V) pulse (p-p) below 10%
AC : AC 110~220V (36~250V) 50/60Hz
Current consumption N.P : ≤13mA
D : ≤0.8mA
A : ≤1.7mA
Control output N.P : ≤300mA
D : ≤200mA
A : ≤400mA
Loop protection N.P.D : reverse connection protection, surge absorption, load short circuit protection
A : surge absorption
Ambient temperature -30~+65°C (no icing, no condensation)
Ambient humidity -35~95%RH
Insulation resistance 50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect -30~+65°C: detection distance error ±15% at +23°C
-25~+60°C: detection distance error ±10% at +23°C
Voltage effect 6-36V (90-250V) : ±15% of detection distance error
10-30V (220V) : ±10% of detection distance error
Protection level IP67 (IEC)
Material Housing: ABS
Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.
