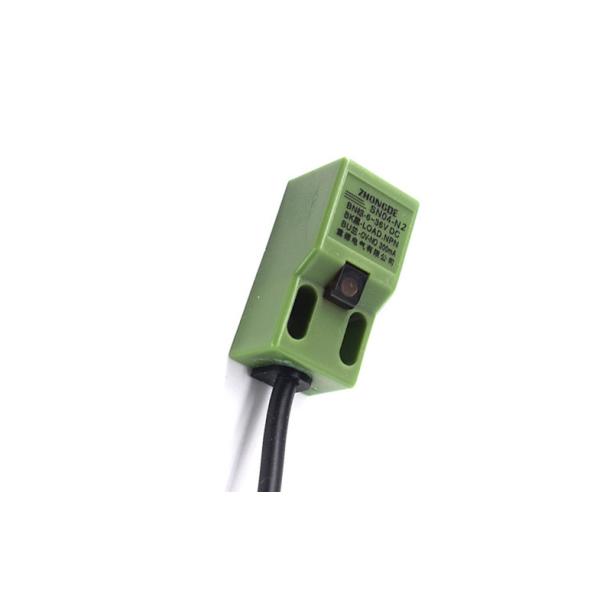

Portable Electronic Proximity Switch , Inductive Proximity Sensor Square Shape
Portable Electronic Proximity Switch , Inductive Proximity Sensor Square Shape
Specifications
Model Number :
SN04-Y
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000only 8day
Place of Origin :
China
Brand Name :
Zhongde
Certification :
CE
Name :
Inductive Proximity Sensor
Feature :
Portable
Material :
ABS
Voltage :
AC
Output Method :
NPN/PNP
Induction Method :
Normally open
Description

Portable Electronic Proximity Switch , Inductive Proximity Sensor Square Shape

Details

Two-wire

NPN/PNP

Normally open

AC

About maintenance and overhaul

In order to keep the proximity sensor to work stably for longtime, the following regular examinations should be performed just like general control

1. Check the installation position of detected object and proximity sensor if any deviation,loosening or deformation exists.

2. Check the attached wires and connecting parts if any loosening,bad contact or wire breaking off exists.

3. Check if there is any metallic powder accumulation or not.

4. Check if the temperature condition and surrounding environment condition are normal or not.

Parameter

Lag distance Less than 10% of the detection distance
Detecting objects Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage DC : DC 12~24 (6~36V) pulse (p-p) below 10%
AC : AC 110~220V (36~250V) 50/60Hz
Current consumption N.P : ≤13mA
D : ≤0.8mA
A : ≤1.7mA
Control output N.P : ≤300mA
D : ≤200mA
A : ≤400mA
Loop protection N.P.D : reverse connection protection, surge absorption, load short circuit protection
A : surge absorption
Ambient temperature -30~+65°C (no icing, no condensation)
Ambient humidity -35~95%RH
Insulation resistance 50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect -30~+65°C: detection distance error ±15% at +23°C
-25~+60°C: detection distance error ±10% at +23°C
Voltage effect 6-36V (90-250V) : ±15% of detection distance error
10-30V (220V) : ±10% of detection distance error
Protection level IP67 (IEC)
Material Housing: ABS
Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.
