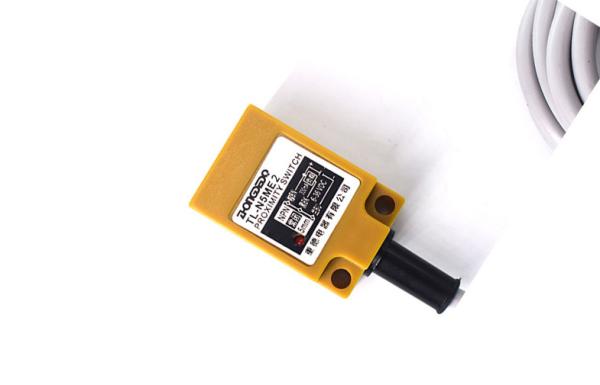

ABS Material Inductive NPN NC Proximity Switch Reliable With CE Certification
ABS Material Inductive NPN NC Proximity Switch Reliable With CE Certification
Specifications
Model Number :
TL-N5ME2
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000only 8day
Place of Origin :
China
Brand Name :
Zhongde
Certification :
CE
Name :
NPN NC Proximity Switch
Feature :
Reliable
Material :
ABS
Voltage :
DC
Output Method :
NPN
Induction Method :
Normally Closed
Description

ABS Material Inductive NPN NC Proximity Switch Reliable With CE Certification

Description

NO or NC refers to the way that a sensor is wired and in what state its output signal will be when the sensor is “made.” A sensor is “made” when an object is present that the sensor has been set up to detect. The characteristics of the sensor determine whether or not an object will detected. These characteristics can include its detection type (inductive, capacitive, ultrasonic, photoelectric, etc.), sensing range (how far away the part can be from the sensor), and other factors. The point of a proximity sensor, or “prox,” is to know that an object is there or not there. When a sensor detects an object, its output state changes.

Details

Three-wire

NPN

Normally closed

DC

Parameter

Lag distance Less than 10% of the detection distance
Detecting objects Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage DC : DC 12~24 (6~36V) pulse (p-p) below 10%
AC : AC 110~220V (36~250V) 50/60Hz
Current consumption N.P : ≤13mA
D : ≤0.8mA
A : ≤1.7mA
Control output N.P : ≤300mA
D : ≤200mA
A : ≤400mA
Loop protection N.P.D : reverse connection protection, surge absorption, load short circuit protection
A : surge absorption
Ambient temperature -30~+65°C (no icing, no condensation)
Ambient humidity -35~95%RH
Insulation resistance 50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect -30~+65°C: detection distance error ±15% at +23°C
-25~+60°C: detection distance error ±10% at +23°C
Voltage effect 6-36V (90-250V) : ±15% of detection distance error
10-30V (220V) : ±10% of detection distance error
Protection level IP67 (IEC)
Material Housing: ABS
Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.
