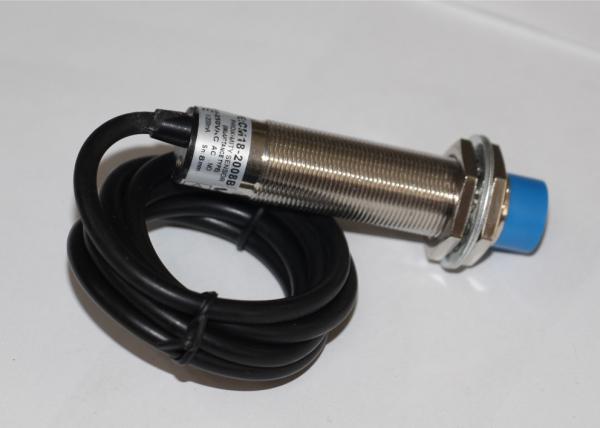

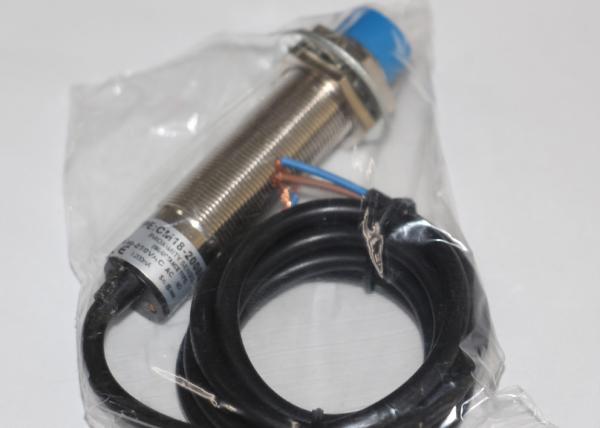

CM18 ABS Resin Detection Capacitive Type Proximity Sensor IP54 Non - Flush
CM18 ABS Resin Detection Capacitive Type Proximity Sensor IP54 Non - Flush
CM18 ABS Resin Detection Capacitive Type Proximity Sensor IP54 Non - Flush
CM18 ABS Resin Detection Capacitive Type Proximity Sensor IP54 Non - Flush
CM18 ABS Resin Detection Capacitive Type Proximity Sensor IP54 Non - Flush
CM18 ABS Resin Detection Capacitive Type Proximity Sensor IP54 Non - Flush
Specifications
Brand Name :
Winston/OEM
Model Number :
CM18
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
OEM :
YES
ODM :
YES
Aviation connector :
YES
Output state: :
NO/NC/NO+NC
Condition :
Original new
Protection grade :
IP54
Insulation resistance :
50MΩ
Wording temperature :
-25℃~+70℃
DC/AC :
50Hz/10Hz
Detection object :
Conductor and dielectric body
Description

ABS Resin Detection IP54 Non-Flush Type Capacitive Proximity Sensor

Features:

1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) High on-off frequency commonly 600Hz
7) Wide voltage range
8) Dustproof, vibration-proof, waterproof and oil-proof

Model explanation of proximity switch

CM 12 30 02 N A □ / L
—— —— - —— —— —— —— —— —
1 2 3 4 5 6 7 8

1.Switch category:Lm: Inductance type

Cm: Capacitance type

Sm: Hall type

Am: Safety Explosion-proof type

Xm: Mimic Linear type

Hm: Reed type

Ru: Ultrasonic type

2.Diameter of the sensor:M12
3.Working voltage:
30: 6-36VDC 310:5-24VDC 320:12-60VDC
330: 10-30VDC 340:10-55VDC 350:10-60VDC
360: 5-36VDC 20:90-250VAC 210:24-250VAC
220: 380VAC40:12-240VDC/24-240AC
50: Special voltage
4.Detection distance:01: 1mm 05: 5mm 10: 10mm ......
5.Output form:N: Three-wire Dc NpN Output
P: Three-wire Dc PnP Output
L: Two-wire Dc Output
: Ac Two-wire Output
J: Relay Contact Output
Np: NpN+PnP Double Output
6.Output state:A: (no) normally Open (no)
B: (nc) Normally Close (nc)
C: (no-nc) normally Open-Normally Close (no+nc)
Mu: Mimic Voltage
Mi: Mimic Current
Mui: Voltage+Current
7.Subsidiart functions:T: with aviation connector
Y: water proof,oil proof
I: special requirement
H: high temp resistance
R: ring type
8.L: Long-distance
Technique parameter

Outward appearance code CM18
Flush Detection distance 0-5mm
DC10~30VDC NPN NO CM18-D1NA05
NC CM18-D1NB05
NO+NC CM18-D1NC05
PNP NO CM18-D1PA05
NC CM18-D1PB05
NO+NC CM18-D1PC05
AC90~250 VAC SCRControl- lable silicon NO CM18-A2A05
NC CM18-A2B05
Non- Flush Detection distance 0-8mm
DC10~30VDC NPN NO CM18-D1NA08
NC CM18-D1NB08
NO+NC CM18-D1NC08
PNP NO CM18-D1PA08
NC CM18-D1PB08
NO+NC CM18-D1PC08
AC 90~250 VAC SCR Control- lable silicon NO CM18-A1A08
NC CM18-A1B08
Detectable object

conductor and dielectric body
Consumption current

DC (NPN, PNP) type 8 mA at 12V, 15 mA at 24V, AC type: 10 mA the following DC < 15 mA, AC < 10 mA
Output current DC:≤200mA AC:≤200mA
Output voltage dropDC/AC DC (NPN, PNP) 3 V the following,AC type: 7 V the following, DC < 3 V, AC < 7 V
Shell material ABS Resin,Metal
Protection grade IEC standard IP65
Altemative model at home and abroad LJC18A3-

Application illustration of capacitive proximity switch

1 . Liquid level measurement-plastic or glass container
2 . Material level measurement

3 . checking for broken board

4 . Count the bottles

5 .detect the tightness of conveyor belt

6 . Counter and detect the material level

CM18 ABS Resin Detection Capacitive Type Proximity Sensor IP54 Non - Flush

Dimension
CM18 ABS Resin Detection Capacitive Type Proximity Sensor IP54 Non - Flush
