S-350-12 Over Voltage Protection Power Supply
S-350-12 Over Voltage Protection Power Supply
S-350-12 Over Voltage Protection Power Supply
S-350-12 Over Voltage Protection Power Supply
S-350-12 Over Voltage Protection Power Supply
S-350-12 Over Voltage Protection Power Supply
S-350-12 Over Voltage Protection Power Supply
S-350-12 Over Voltage Protection Power Supply
Specifications
Brand Name :
Winston/OEM
Model Number :
S-350W
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD18.26 to USD20.9
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
215*115*50mm
Condition :
Original New
Weight :
1KG
Working temperature :
-10℃~+50℃
Input voltage range :
90-132VAC/180-264VAC 47-63Hz
Description

S-350-12 Over Voltage Protection Power Supply


Summary

  • Single output: power 350w
  • Input voltage: 90-132VAC/180-264VAC

Technique parameter:

Model

S-350

-5

S-350

-9

S-350

-12

S-350

-15

S-350

-18

S-350

-24

S-350

-27

S-350

-36

S-350

-48

S-350

-60

S-350

-70

S-350

-110
DC output voltage current 5V 0-50A 9V 0-38A 12V 0-29A 15V 0-23.3A 18V 0-19.4A 24V 0-14.6A 27V 0-13A 36V 0-9.7A 48V 0-7.3A 60V 0-6A 70V 0-5A 110V 0-3.2A
Wave and noise

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

200

mVp-p

200

mVp-p

240

mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency 73% 78% 83% 83% 84% 85% 85% 85% 86% 86% 86% 86%
Adjustable range for DC voltage ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
Inpact current Cold start current 50A/230VAC 25A/115VAC
Overload proctection 105%-135% cut off the output, automatic recovery
Over-voltage protection 115%-150% shut down O/P voltage, re-power on to recover
Setup rise hold up time 200ms, 50ms, 20ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Weight 1kg
Packing 45.5*31.5*26cm/20PCS/20kg



The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms

FOB ,CIF ,CFR,EXW,DDP

Payment terms

T/T,L/C,Western union,Paypal,Escrow,MoneyGram

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery

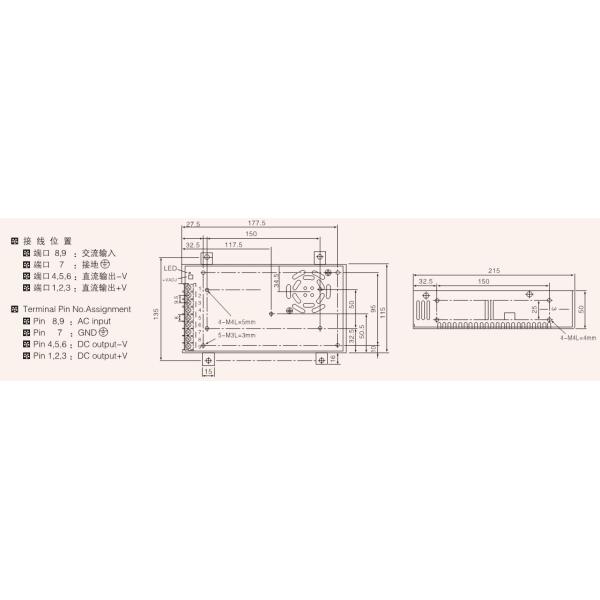

Dimensions

S-350-12 Over Voltage Protection Power Supply
