WST-8000 Mechanical Room Thermostat 5W Air Conditioner Adjustable
WST-8000 Mechanical Room Thermostat 5W Air Conditioner Adjustable
Specifications
Brand Name :
Winston/OEM
Model Number :
WST-8000
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD8 to 10
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Switch discrepancy :
1K±0.8K
Single product Dimension :
70*70*33.5mm
Accuracy :
100%
Temperature range :
20-70℃
Single product weight :
approx.105g
Power Consumption :
5 W
Description

WST-8000 Mechanical Room Thermostat Air Conditioner Adjustable

Application

Especially used for controlling fan filter, heater and heat exchanger, also can monitor the electric cabinet innertemperature when working as signal arouser

1. sensor as heat sensitivity set to feedback of heat


2. Contact point scheme: single switchover contact point as instant switch component


3. Allowed load of contact point


4. Time-saving connection terminal block could be installed with scrow from outside


5. Easy installation could be installed to 35mm din rail vertically or horizontally according to EN50022,it could be clipped to NS/35-ES cabinet profile with its accessory adapter

Technical paraments

Description WST-8000 controller, increasing output
Function Proportional plus Integral Positive or Negative
Models See below chart
Supply Power 24VAC+15%-10%, 50-60HZ
Output Signal 24VAC through 3-end,2-way silicon controlled rectifier
Consumption 2VA(0.8A)No load
Proportional Band 1K-7K/4%-40% adjustable, 4K/20% set by the factory
Resetting time 5 or 2.5 minutes. adjusted by the inner jumper.
Set-point re-adjust(only used in concentrated model) 0V-10V DC correspond -8K-8K
Stand by set-point 2k by closing the external connector
Setting range Chart
Sensitive element NTC- thermistor
Wiring Terminal wiring/fit for max.1.5mm thread wires
Casing Flameproof and self-extinguished ABS-plastic, yellow
Working Temp 0oC~50oC
Storage Temp -40oC~70oC
Net Weight 0.120Kg
Accessories(order separately) Built-out long distance temperature sensor.

Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!

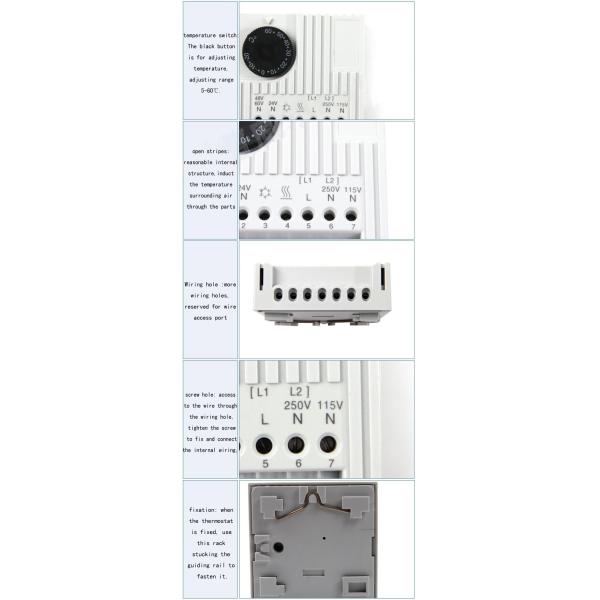

Overall dimension

WST-8000 Mechanical Room Thermostat 5W Air Conditioner Adjustable
