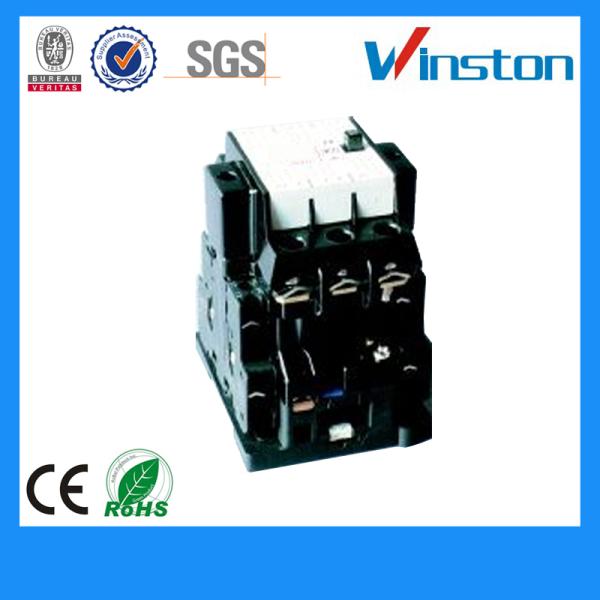

3TB Series 660 Voltage Ac Contactor Electrical 3TB40 3TB43 3TB44
3TB Series 660 Voltage Ac Contactor Electrical 3TB40 3TB43 3TB44
Specifications
Brand Name :
Winston/OEM
Model Number :
3TB
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD8 to 20
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Current :
630A
Max voltage :
660vac
Frequency :
60Hz
Model type :
3TB40 3TB41 3TB42 3TB43 3TB44
Description

3TB Series 660 Voltage Ac Contactor Electrical 3TB40 3TB43 3TB44

Application

The contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz 60Hz, rated current 630A, for making and breaking, and for frequent starting and controlling the motor. After combined with the mechanical interlocking device, it becomes 3TD Series convertible contactor for controlling, starting, breaking and reversing of motor. The products comply with IEC60947-4.

Technical paraments

Type Rated
thermal
current (A)		 Rated operating
current at
AC 3 380V (A)		 Rated
operating
current at
660V (A)		 The power of controlled
motor (KW)		 Type of
auxiliary
contact
380V 660V
3TB40 20 9 3.3 4 5.5 1NO
1NC
1NO+1NC
2NO+2NC
3TB41 20 12 4.3 5.5 7.5
3TB42 30 16 7.8 7.5 11
3TB43 30 22 8.5 11 11
3TB44 45 32 12 15 23 2NC+2NO
