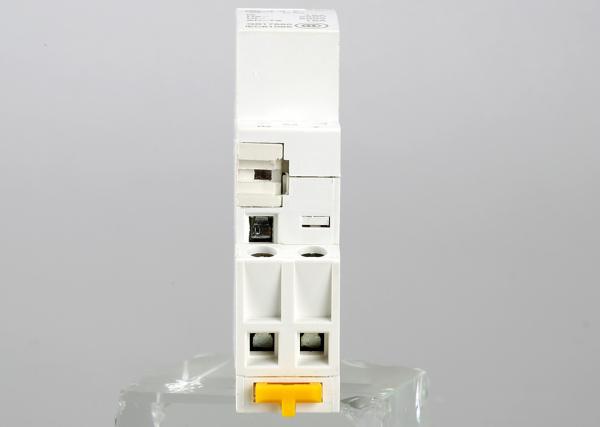

Household Electric AC Contactor 24v WCT NC 16A 2 Pole Mini IP40
Household Electric AC Contactor 24v WCT NC 16A 2 Pole Mini IP40
Household Electric AC Contactor 24v WCT NC 16A 2 Pole Mini IP40
Household Electric AC Contactor 24v WCT NC 16A 2 Pole Mini IP40
Specifications
Brand Name :
Winston/OEM
Model Number :
WCT 16A 2P 2NC
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD3 to USD8.5
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Main Circuit Rating Voltage :
220VAC
Phase :
2 phase
Application :
Household
OEM :
Yes
Degree of protection :
IP40
Frequency :
50Hz
Main Circuit Rating Current :
3.8VA
Width :
18mm
Description

Chinese Electric Magnetic 24v WCT NC 16A 2 Pole Mini Contactor

Product description

WCT contactors can be used to remote control applications in alternative networks:

* mechanical ventilation systems, etc

* load-shedding of non-priority circuits

Technical data

Rating(In) AC7a

Control voltage

(VAC)(50Hz)

 Contact Width modul
2P 16A 12 2NO 2
24 2NO 2
48 2NO 2
220 2NO 2
230...240 2NO 2
Power circuit
Voltage Rating(Ue) 1P, 2P
250VAC
3P, 4P
400VAC
Endurance(O-C)
Electrical
100000 cycles
Maximum number of switching operation a day
100
Additional characteristics
Insulation voltage(Ui)
500VAC
Pollution degree
2
Rated impulse withstand voltage(Uimp)
2.5kV(4 kV for 12/24/48V AC)
Degree of protection

(IEC 60529)
Device only
IP20
Device in modular enclosure
IP40
Tropicalization (IEC 60068-1)
Treatment 2(relative humidity 95% at 55℃)

Advantage

  • Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
  • The fast and flexible production form aim at the customer require;
  • The deliveries exactly in accordance with customer orders
  • The fast transportation.

Consumption

WCT contactors-50Hz
Raring(In)
Control voltage(V AC)(50Hz)
Consumption
Max.
power
AC7a
AC7b
Holding
Inrush
2P
16A
5A
12
3.8VA
15VA
1.3W
24
3.8VA

15VA
1.3W
48
3.8VA
15VA
1.3W
220
3.8VA
15VA
1.3W
230....240
2.7VA
9.2VA
1.3W

Dimension

Household Electric AC Contactor 24v WCT NC 16A 2 Pole Mini IP40

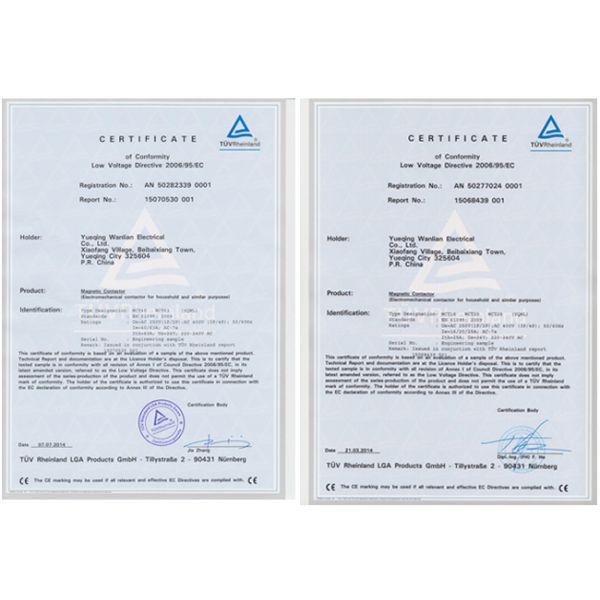

Certification

Household Electric AC Contactor 24v WCT NC 16A 2 Pole Mini IP40
