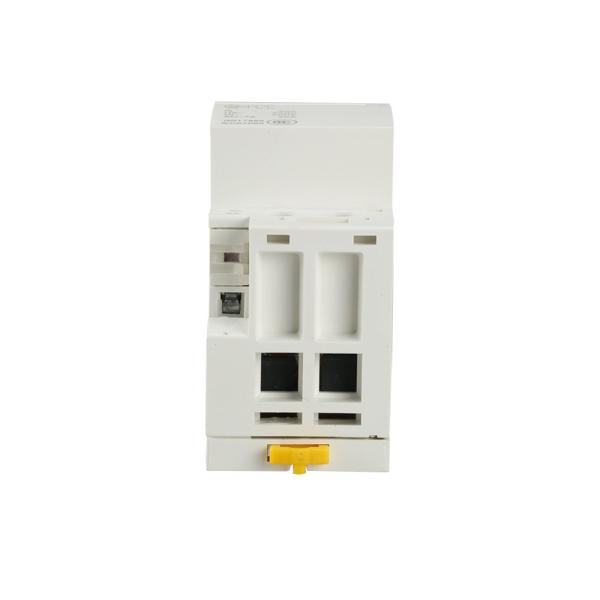

FWiring Diagram 240V Coil Electrical 2NO Mini Contactor for Household
FWiring Diagram 240V Coil Electrical 2NO Mini Contactor for Household
FWiring Diagram 240V Coil Electrical 2NO Mini Contactor for Household
FWiring Diagram 240V Coil Electrical 2NO Mini Contactor for Household
Specifications
Brand Name :
Winston/OEM
Model Number :
WCT 40A 2P 2NO
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD 5.68 TO USD 8.68
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Electricity Type :
AC
Rated Current :
40A
Electric Life (times) :
50000h
Frequency :
50Hz
Number of Pole :
2
Rating Current :
100a
Width :
36mm
Application :
Household
Mechanical life :
100000h
Description

From China Wiring Diagram 240V Coil Electrical 2NO Mini Contactor

Description

WCT series household AC contactors are suitable for controlling household appliances & similar usages low micro-load,also controlling household motors loading, whose controlling power shall be reduced, The products are used for family ,hotel ,apartment etc. places, And, it can be realized automatic function.

Conditions of Working & Installations

Temperature: 5℃~+40℃,AVG not over within 24h+35℃
Altitude: not over 2000m.
Atmospheric conditions: RH+40℃ not over 50% under,RH can be for 90% under +20℃, In dewing,it should be taken special precautious.
Class of pollution: 2
Installation type: II
Mode of installations: TH35-7.5 types steel DIN-RAIL
IP Grade: IP20

Attention

1. Confirm whether the product voltage, current, frequency and use category meet the requirements before use;

2. Connect the control circuit first for no-load operation test and then connect the load in case of no abnormality;

3. Regularly tighten the terminals and remove the deposited dust;

4. Don't make the foreign matters fall into the product

Consumption

WCT contactors-50Hz

Type

Raring(In)

Control voltage

(VAC)(50Hz)

Consumption

Max.

power

AC7a

Holding

Inrush

4P

40A

220...240

6.5 VA

53 VA

2.1 W

Dimension

FWiring Diagram 240V Coil Electrical 2NO Mini Contactor for Household

FWiring Diagram 240V Coil Electrical 2NO Mini Contactor for Household
