LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type
LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type
LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type
LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type
LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type
LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type
LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type
LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type
Specifications
Brand Name :
Winston/OEM
Model Number :
LMF11
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Standard detected object :
A3 iron
DC/AC :
500Hz
OEM :
YES
ODM :
YES
Aviation connector :
YES
Repeated precision :
0.05
Output state: :
NO/NC/NO+NC
Protection degree :
IP 67
Shell Material :
ABS Resin
Condition :
Original new
Insulation resistance :
50MΩ
Working environment temperature :
-25℃—+70℃
Description
LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type
Technique parameter

DETECTION DISTANCE 5MM
Flush DC 10-30V NPN NO LMF11-3005NA
NC LMF11-3005NB
NO+NC LMF11-3005NC
PNP NO LMF11-3005PA
NC LMF11-3005PB
NO+NC LMF11-3005PC
two wire system NO LMF11-3005LA
NC LMF11-3005LB
AC 90-250V SCR Control-lable silicon NO
NC
NO+NC
Relay output
DETECTION DISTANCE
Non-Flush DC 10-30V NPN NO
NC
NO+NC
PNP NO
NC
NO+NC
two wire system NO
NC
AC 90-250V SCR Control-lable silicon NO
NC
NO+NC
Relay output
Controloutput DC 200mA
SCR/ Relay
Output voltagc dropDC/AC NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current DC< 15mA, AC< 10mA
Standard detected object 20*20*1(A3 iron)
Repeated precision 0.05
DC/AC 500HZ
Working environment temperature -25~+70º C
Insulation resistance 50MΩ
Shell material ABS Resin
Protection grade IP67
Altemative model at home and abroad PL-05N, PL-05P

Features:


1 . High precision of repeated location

2 . Diversified exterior structures
3 . High on-off frequency.
4 . Wide voltage range
5 . Dust proof, vibration proof, water proof and oil proof

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category Output form

Lm: Inductance type

Cm: Capacitance type

Sm: Hall type

Am: Safety Explosion-proof type

Xm: Mimic Linear type

Hm: Reed type

Ru: Ultrasonic type

N: Three-wire Dc NpN Output

P: Three-wire Dc PnP Output

L: Two-wire Dc Output

: Ac Two-wire Output

J: Relay Contact Output

Np: NpN+PnP Double Output
Outward appearance code Output state

□: Cylinder type

F□: Angular Colum Type And Plane Installation Type

A: (no) normally Open (no)

B: (nc) Normally Close (nc)

C: (no-nc) normally Open-Normally Close (no+nc)

Mu: Mimic Voltage

Mi: Mimic Current

Mui: Voltage+Current
Working voltage Subsidiart functions

30:6-36VDC 310:5-24VDC 320:12-60VDC

330:10-30VDC 340:10-55VDC 350:10-60VDC

360:5-36VDC 20:90-250VAC 210:24-250VAC

220:380VAC40:12-240VDC/24-240AC

50:Special voltage

T: with aviation connector

Y: water proof,oil proof

I: special requirement

H: high temp resistance

R: ring type
Detection distance Long-distance

01: 1mm 05: 5mm 10: 10mm ......

 L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Arm location detection of robot

5. Spacing detection

Dimension

LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type

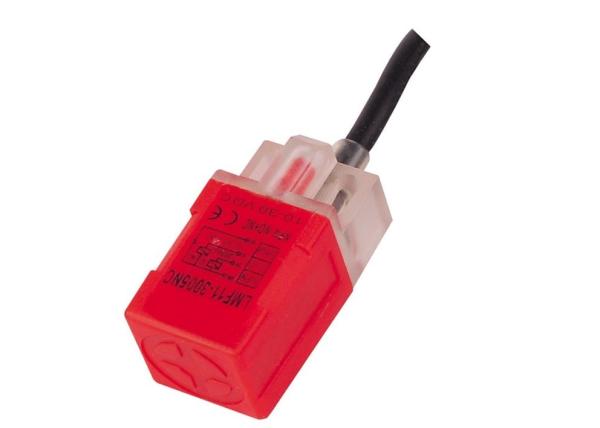

Product Picture

LMF11 Inductive Proximity Sensor Oilproof , IR Proximity Switch 5MM Angular Column Type

​
