IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V
IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V
IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V
IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V
IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V
IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V
IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V
IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V
Specifications
Brand Name :
Winston/OEM
Model Number :
LM14
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Current :
200-300mA
Operating temperature :
-25 ~ +75 ℃
Protection degree :
IP 67
Diameter :
12mm
OEM :
YES
ODM :
YES
Aviation connector :
Yes
Shell Material :
Stainless steel
Rated voltage :
6-36V DC
DC/AC :
400Hz/25Hz
Connection type :
2 wire leads type
Description
IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

Technique parameter
DETECTION DISTANCE 3mm
Flush DC 10-30V NPN NO LM14-3003NA
NC LM14-3003NB
NO+NC LM14-3003NC
PNP NO LM14-3003PA
NC LM14-3003PB
NO+NC LM14-3003PC
two wire system NO LM14-3003LA
NC LM14-3003LB
AC 90-250V SCR Control-lable silicon NO LM14-2003A
NC LM14-2003B
NO+NC
Relay output
DETECTION DISTANCE 5mm
Non-Flush DC 10-30V NPN NO LM14-3005NA
NC LM14-3005NB
NO+NC LM14-3005NC
PNP NO LM14-3005PA
NC LM14-3005PB
NO+NC LM14-3005PC
two wire system NO LM14-3005LA
NC LM14-3005LB
AC 90-250V SCR Control-lable silicon NO LM14-2005A
NC LM14-2005B
NO+NC
Relay output
Controloutput DC 200mA
SCR/ Relay 300mA
Output voltagc dropDC/AC NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current DC< 15mA, AC< 10mA
Standard detected object 15*15*1(A3 iron)
Repeated precision 0.02
DC/AC 300Hz/25Hz
Working environment temperature -25~+70º C
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
Altemative model at home and abroad LJ14A3

Product Description:

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category Output form

Lm: Inductance type

Cm: Capacitance type

Sm: Hall type

Am: Safety Explosion-proof type

Xm: Mimic Linear type

Hm: Reed type

Ru: Ultrasonic type

N: Three-wire Dc NpN Output

P: Three-wire Dc PnP Output

L: Two-wire Dc Output

: Ac Two-wire Output

J: Relay Contact Output

Np: NpN+PnP Double Output
Outward appearance code Output state

□: Cylinder type

F□: Angular Colum Type And Plane Installation Type

A: (no) normally Open (no)

B: (nc) Normally Close (nc)

C: (no-nc) normally Open-Normally Close (no+nc)

Mu: Mimic Voltage

Mi: Mimic Current

Mui: Voltage+Current
Working voltage Subsidiart functions

30: 6-36VDC 310:5-24VDC 320:12-60VDC

330: 10-30VDC 340:10-55VDC 350:10-60VDC

360: 5-36VDC 20:90-250VAC 210:24-250VAC

220: 380VAC40:12-240VDC/24-240AC

50: Special voltage

T: with aviation connector

Y: water proof,oil proof

I: special requirement

H: high temp resistance

R: ring type
Detection distance Long-distance

01:1mm 05:5mm 10:10mm ......

 L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Arm location detection of robot

5. Inspection of the exiating of milk inside the paper package

6. Spacing detection

7. Mounting non screw type pillar switch

8. Gusrd of switch lead-wire

Product Dimension

IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

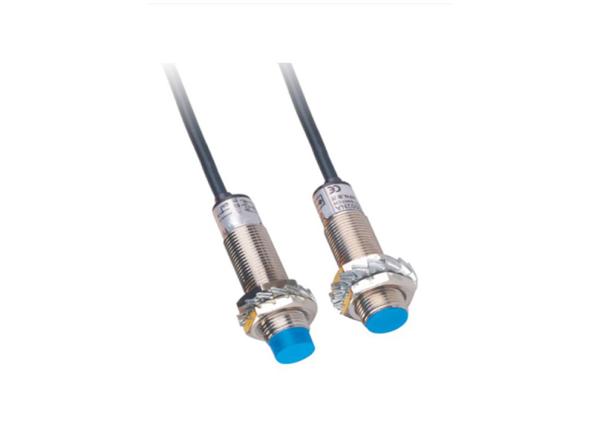

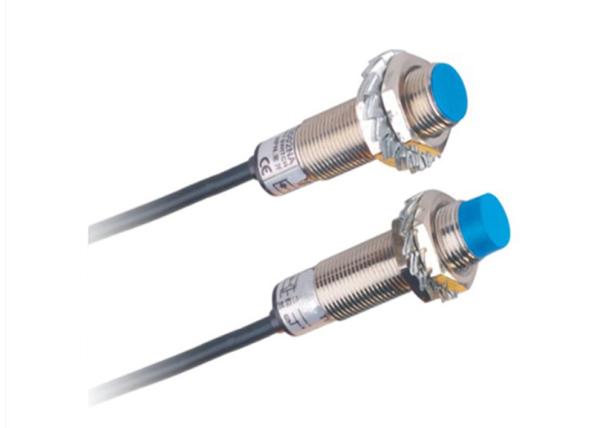

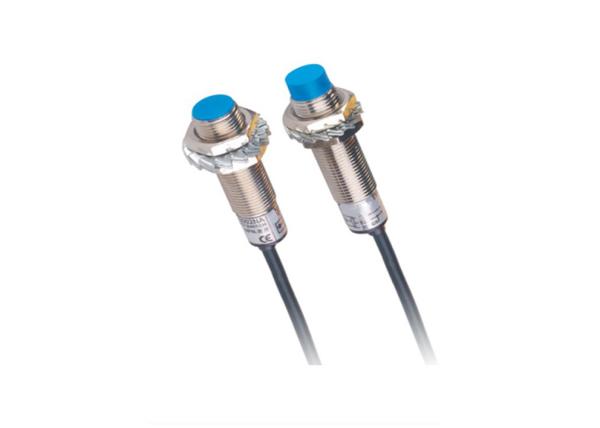

Product Picture

IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

​

FAQ

Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

Q 2. how's the delivery time ?

A. usually it will take about 15 days for production

Q 3. tell me the standard of package?

A. Export standard carton box

Q 4. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 5. Would you accept to use our logo ?

A. If you have good quantity,it absolute no problem to do OEM.

Q 6. We want to know month capacity.

A. It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

Q 7. Where is your market?

A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
