Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
Specifications
Brand Name :
Winston/OEM
Model Number :
LM35
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Repeated precision :
0.1
Standard detected object :
A3 iron
DC/AC :
100Hz/15Hz
OEM :
YES
ODM :
YES
Aviation connector :
yes
Quality grade :
World class
Output state: :
NO,NC,NO_NC
Operating temperature :
-25 ~ +75 ℃
Protection degree :
IP 67
Shell Material :
ABS Resin
Insulation resistance :
50MΩ
Description
Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
Technique parameter
Cylinder Type


LM35

Inductive Proximity Switch		 Flush Detection Distance
DC6-36V NPN NO
NC
NO+NC
PNP NO
NC
NO+NC
Two Wire System NO
NC
AC90-250V Controllable
Silicon		 NO
NC
NO/NC
Relay output
Non-Flush Detection Distance 17mm
DC6-36V NPN NO LM35-3017NA
NC LM35-3017NB
NO+NC LM35-3017NC
PNP NO LM35-3017PA
NC LM35-3017PB
NO+NC LM35-3017PC
Two Wire System NO LM35-3017LA
NC LM35-3017LB
AC90-250V Controllable
Silicon		 NO LM35-2017A
NC LM35-2017B
NO/NC LM35-2017C
Relay output

Features:
1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . With short-circuit protection and inverted connecting protection.

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category Output form

Lm: Inductance type

Cm: Capacitance type

Sm: Hall type

Am: Safety Explosion-proof type

Xm: Mimic Linear type

Hm: Reed type

Ru: Ultrasonic type

N: Three-wire Dc NpN Output

P: Three-wire Dc PnP Output

L: Two-wire Dc Output

: Ac Two-wire Output

J: Relay Contact Output

Np: NpN+PnP Double Output
Outward appearance code Output state

□: Cylinder type

F□: Angular Colum Type And Plane Installation Type

A: (no) normally Open (no)

B: (nc) Normally Close (nc)

C: (no-nc) normally Open-Normally Close (no+nc)

Mu: Mimic Voltage

Mi: Mimic Current

Mui: Voltage+Current
Working voltage Subsidiart functions

30: 6-36VDC 310:5-24VDC 320:12-60VDC

330: 10-30VDC 340:10-55VDC 350:10-60VDC

360: 5-36VDC 20:90-250VAC 210:24-250VAC

220: 380VAC40:12-240VDC/24-240AC

50: Special voltage

T: with aviation connector

Y: water proof,oil proof

I: special requirement

H: high temp resistance

R: ring type
Detection distance Long-distance

01:1mm 05:5mm 10:10mm ......

 L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Arm location detection of robot

5. Inspection of the exiating of milk inside the paper package

6. Spacing detection

7. Mounting screw switch

Dimension

Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE

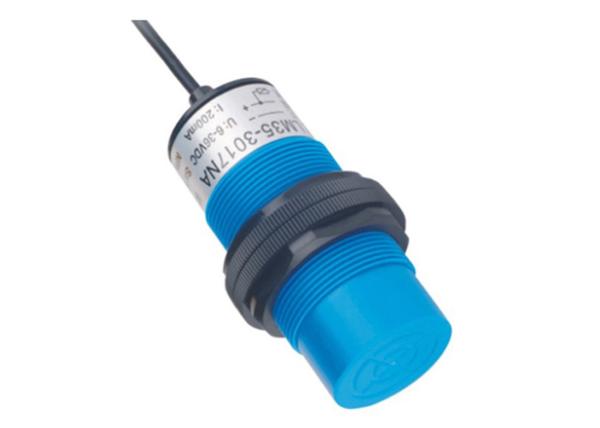

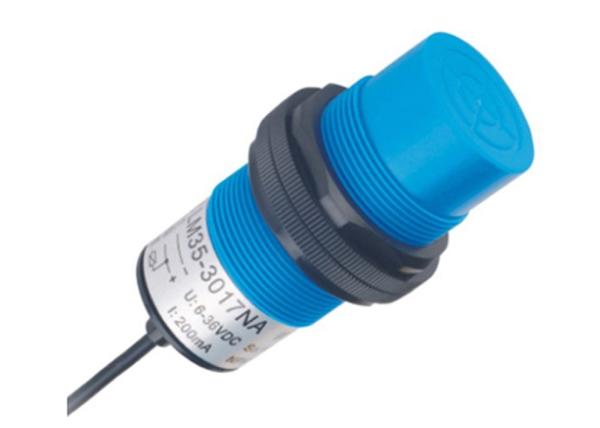

Product Picture

Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE

​

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms

FOB ,CIF ,CFR,EXW,DDP

Payment terms

T/T,L/C,Western union,Paypal,Escrow,MoneyGram

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery
