Specifications
Brand Name :
Winston/OEM
Model Number :
HV031 without FAN,HVL031 with Fan
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Material :
Plastic,AL
Power :
100W 150W 200W 300W 400W
Voltage :
230VAC 120VAC
Installtion :
Din Rail
OEM :
Yes
Description

AC 120V Industrial Electric Heaters Space Saving , Industrial Fan Heaters CE

● Compact

● Flat design

● High air through-flow

● Temperature safety cut-out

● Clip fixing

The compact high-performance fan heater prevents formation of condensation in control or switch systems and provides an evenly distributed interior air temperature in enclosures. This fan heater is available without fan (HV 031) as well as with fan (HVL 031).

TECHNICAL PARAMETER

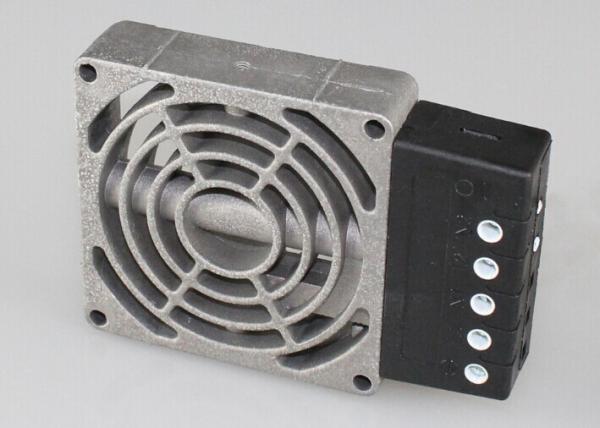

HV 031 Heater without fan (fan mounting kit included)

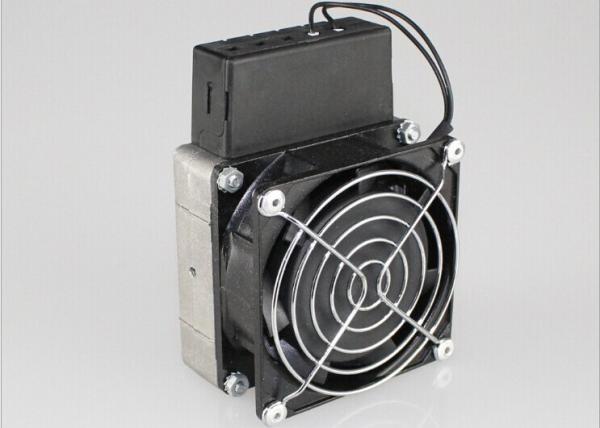

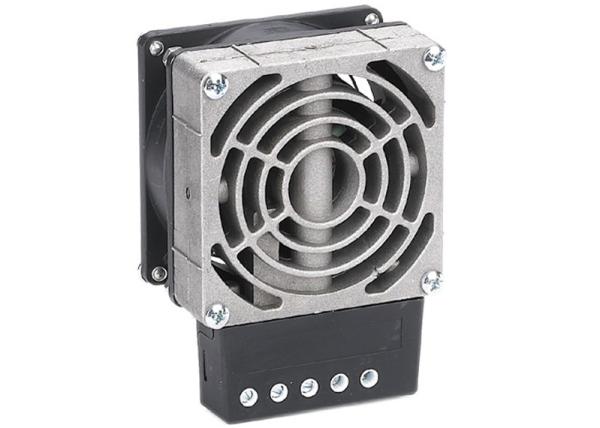

HVL 031 Heater with fan
Heating element high performance cartridge
Temperature safety cut-out to protect against overheating in case of fan failure,
automatic reset
Heater body die-cast aluminium (glass bead blasted)
Connection 3-pole screw connector 2.5mm⊃2;, clamping torque 0.8Nm max.
Connection casing plastic according to UL94 V-0, black
Mounting clip for 35mm DIN rail, EN 60715
Fitting position vertical airflow (air outlet up)
Operating/Storage temperature -45 to +70°C (-49 to +158°F)
Operating/Storage humidity max. 90% RH (non-condensing)
Protection type/Protection class IP20 / I (earthed)
Approvals
HVL 031 only:
Axial fan, ball bearing airflow see table
service life 50,000h at 25°C (77°F)
Connection (axial fan) 2-pole screw connector 2.5mm⊃2; (L2/N2)

Important! Heater may only be operated together with fan. Danger of overheating!

Art. No. HV 031 230VAC, 50/60Hz Art. No. HV 031 120VAC, 50/60Hz Heating capacity Pre-fuse T (time-delay) 230VAC / 120VAC Dimensions Weight (approx.)
03100.0-00 03100.9-00 100W 1A / 1.4A 80 x 112 x 22mm 0.4kg
03101.0-00 03101.9-00 150W 1.25A / 2A 80 x 112 x 22mm 0.4kg
03110.0-00 03110.9-00 200W 1.4A / 2.5A 119 x 151 x 22mm 0.5kg
03111.0-00 03111.9-00 300W 2A / 4A 119 x 151 x 22mm 0.5kg
03112.0-00 03112.9-00 400W 4A / 5A 119 x 151 x 22mm 0.5kg

Art. No. HVL 031 230VAC, 50/60Hz Art. No. HVL 031 120VAC, 50/60Hz Heating capacity Pre-fuse T (time-delay) 230VAC / 120VAC Airflow min., free flow Dimensions Weight (approx.)
03102.0-00 03102.9-00 100W 1A / 1.4A 35m3/h 80 x 112 x 47mm 0.6kg
03103.0-00 03103.9-00 150W 1.25A / 2A 35m3/h 80 x 112 x 47mm 0.6kg
03113.0-00 03113.9-00 200W 1.4A /2.5A 108m3/h 119 x 151 x 47mm 0.9kg
03114.0-00 03114.9-00 300W 2A / 4A 108m3/h 119 x 151 x 47mm 0.9kg
03115.0-00 03115.9-00 400W 4A / 5A 108m3/h 119 x 151 x 47mm 0.9kg

WIRING DIAGRAM

AC 120V Industrial Electric Heaters Space Saving , Industrial Fan Heaters CE Plastic,AL
