Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Specifications
Brand Name :
Winston/OEM
Model Number :
LMF1
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Standard detected object :
A3 iron
DC/AC :
400Hz/25Hz
OEM :
YES
ODM :
YES
Aviation connector :
YES
Repeated precison :
0.02
Output state: :
NO/NC/NO+NC
Operating temperature :
-25 ~ +75 ℃
Protection degree :
IP 67
Shell Material :
ABS Resin
Insulation resistance :
50MΩ
Condition :
Original new
Description
Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Technique parameter
DETECTION DISTANCE 5MM
Flush DC 10-30V NPN NO LMF1-3005NA
NC LMF1-3005NB
NO+NC
PNP NO LMF1-3005PA
NC LMF1-3005PB
NO+NC
two wire system NO LMF1-3005LA
NC LMF1-3005LB
AC 90-250V SCR Control-lable silicon NO
NC
NO+NC
Relay output
DETECTION DISTANCE 5MM
Non-Flush DC 10-30V NPN NO
NC
NO+NC
PNP NO
NC
NO+NC
two wire system NO
NC
AC 90-250V SCR Control-lable silicon NO LMF1-2005A
NC LMF1-2005B
NO+NC
Relay output
Controloutput DC 200mA
SCR/ Relay 300mA
Output voltagc dropDC/AC NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current DC< 15mA, AC< 10mA
Standard detected object 20*20*1(A3 iron)
Repeated precision 0.02
DC/AC 400HZ/25HZ
Working environment temperature -25~+70º C
Insulation resistance 50MΩ
Shell material ABS Resin
Protection grade IP67
Altemative model at home and abroad SN04-N

Features:
1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . Dust proof,vibration proof,water proof and oil proof.
7 . With short-circuit protection and inverted connecting protection.
8 . Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category Output form

Lm: Inductance type

Cm: Capacitance type

Sm: Hall type

Am: Safety Explosion-proof type

Xm: Mimic Linear type

Hm: Reed type

Ru: Ultrasonic type

N: Three-wire Dc NpN Output

P: Three-wire Dc PnP Output

L: Two-wire Dc Output

: Ac Two-wire Output

J: Relay Contact Output

Np: NpN+PnP Double Output
Outward appearance code Output state

□: Cylinder type

F□: Angular Colum Type And Plane Installation Type

A: (no) normally Open (no)

B: (nc) Normally Close (nc)

C: (no-nc) normally Open-Normally Close (no+nc)

Mu: Mimic Voltage

Mi: Mimic Current

Mui: Voltage+Current
Working voltage Subsidiart functions

30: 6-36VDC 310:5-24VDC 320:12-60VDC

330: 10-30VDC 340:10-55VDC 350:10-60VDC

360: 5-36VDC 20:90-250VAC 210:24-250VAC

220: 380VAC40:12-240VDC/24-240AC

50: Special voltage

T: with aviation connector

Y: water proof,oil proof

I: special requirement

H: high temp resistance

R: ring type
Detection distance Long-distance

01:1mm 05:5mm 10:10mm ......

 L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Inspection of the exiating of milk inside the paper package

5. Spacing detection

Dimension

Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell

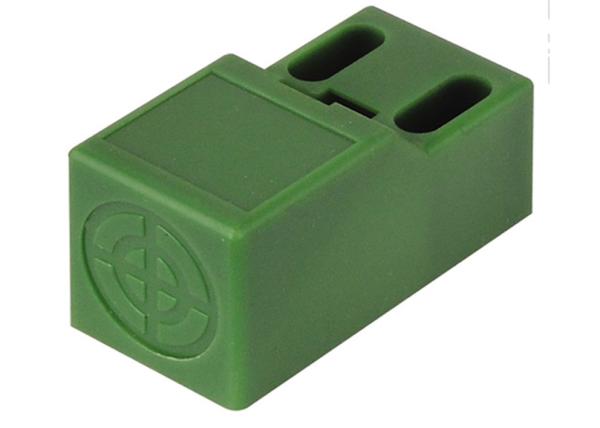

Product Picture

Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell

​

Why choose us:

1. Quality guaranteed:

Special supervision team to control quality

All the products will be inspected carefully before delivery

2. quality and finish time guaranteed, Deliver the goods accredit to negotiation or within 7 days after we get your payment.

3. Competitive price with high quality.

4. After service guarantee. Assure you the best services at all times.

5. OEM & ODM available; Large quantities of the same specifications, quality standards, the time control is our strength.

6. Favorable and professional shipping,Worldwide shipping available
