100Watt / 200Watt Black Industrial Electric Heaters Large Convection Surface IP65 230-240VAC/110-120VAC
100Watt / 200Watt Black Industrial Electric Heaters Large Convection Surface IP65 230-240VAC/110-120VAC
100Watt / 200Watt Black Industrial Electric Heaters Large Convection Surface IP65 230-240VAC/110-120VAC
100Watt / 200Watt Black Industrial Electric Heaters Large Convection Surface IP65 230-240VAC/110-120VAC
Specifications
Brand Name :
Winston/OEM
Model Number :
CREX020 50W 100W 200W
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Voltage :
230-240VAC/110-120VAC
Heating element :
high performance cartridge
Protection class :
IP65 / I (earthed)
Power :
50W 100W 200W
OEM :
Yes
Operating/Storage temperature :
-40 to +40°C (-40 to +104°F) / -45 to +70°C (-49 to +158°F)
Description

100 Watt / 200 Watt Black Industrial Electric Heaters Large Convection Surface

APPLICATION

● Large convection surface

● Clip fixing

● Ready for use

● Maintenance free

Compact convection heater for use in areas with explosion hazard for prevention of formation of condensation, temperature fluctuations and for protection against frost in transmitter housings, switch cabinets and measuring equipment.

TECHNICAL PARAMETER

Explosion protection according to EN

LCIE(Laboratoire Central des Industries Electriques)

Conformity certificate

01 ATEX 6073/03, LCIE NO ATEX Q8011, IECEx LCI 07.0020

Heating element

High performance cartridge

Heater body

aluminium profile , black anodised

Connection

Si HF-JZ 3 × 0.75mm² cable, length 1m

Connection PE

4mm2

Mounting

clip for 35mm DIN rail, EN 60715

Fitting position

Vertical

Operating/Storage temperature

-20 to +40 °C (-4 to +104 °F) / -45 to +70 °C (-49 to +158 °F)

Protection type/Protection class

IP65 / I (earthed)

Art. No.

Operating voltage

Heating capacity

Pre-fuse T (time-delay)

Ex protection type

Surface temperature

Length (L)

Weight (approx.)

02010.0-00

230-240VAC

50W

0.5A

d IIC T5 - Ex tD A21 IP6X T100°C

100°C

150mm

1.3kg

02011.0-00

230-240VAC

100W

1A

d IIC T4 - Ex tD A21 IP6X T135°C

135°C

180mm

1.5kg

02010.0-01

110-120VAC

50W

0.5A

d IIC T5 - Ex tD A21 IP6X T100°C

100°C

150mm

1.3kg

02011.0-01

110-120VAC

100W

1.25A

d IIC T4 - Ex tD A21 IP6X T135°C

135°C

180mm

1.5kg

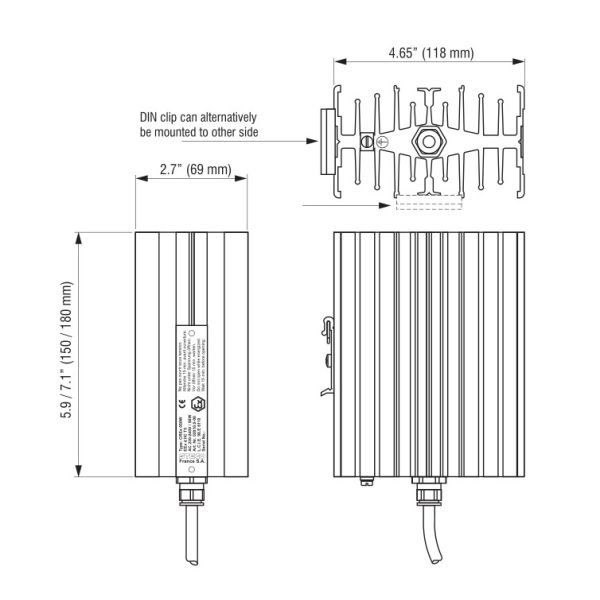

WIRING DIAGRAM

100Watt / 200Watt Black Industrial Electric Heaters Large Convection Surface IP65 230-240VAC/110-120VAC
Product picture
100Watt / 200Watt Black Industrial Electric Heaters Large Convection Surface IP65 230-240VAC/110-120VAC
Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
