Specifications
Brand Name :
Winston/OEM
Model Number :
RCE016 5W 9W
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Voltage :
120 - 240VAC* (min. 110V, max. 265V)
Heating element :
PTC resistor - temperature limiting
Protection class :
IP54 / II (double insulated)
Power :
5W 9W
OEM :
Yes
Operating/Storage temperature :
-45 to +70°C (-49 to +158°F)
Operating/Storage humidity :
max. 90% RH (non-condensing)
Description

AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II

APPLICATION

● Temperature limiting

● Wide voltage range

● Dynamic heating up

● Energy saving

● Compact

Small heaters designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.

TECHNICAL PARAMETER

Operating voltage

120-240V AC/DC* (min. 110V, max. 265V)

Heating element

PTC resistor, self regulating and temperature limiting

Heater body

aluminium

Mounting

see Accessories

Fitting position

Variable

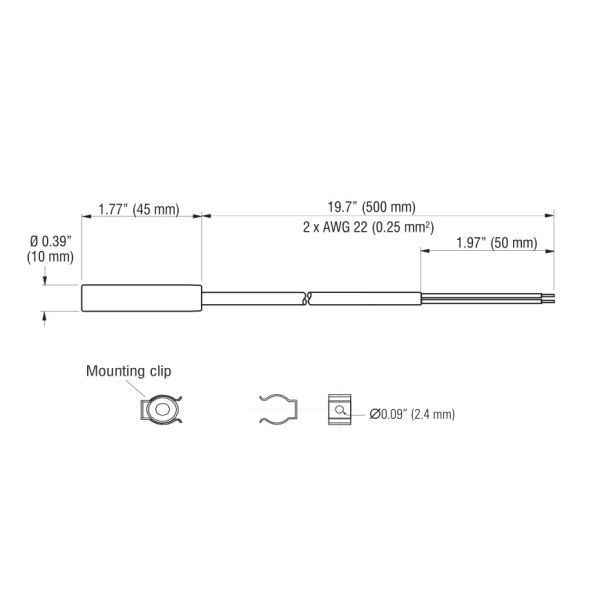

Dimensions

Length 45mm2, 10mm2

Operating/Storage temperature

-45 to +70 °C (-49 to +158 °F)

Protection type/Protection class

IP32 / II (double insulated)

Accessoires

Mounting clips (see illustration), Art. No. 09008.0-01

*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

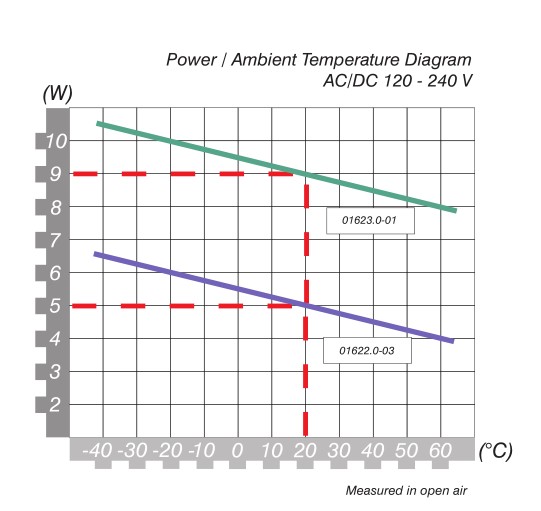

Art. No. Heating capacity* Inrush current max. Pre-fuse T (time-delay) Surface temperature (approx.) Connection Weight (approx.)
01622.0-00 5W 2.0A 1A 165°C 2 x AWG 22 sheathed cable (silicone) 20g
01623.0-00 9W 2.5A 2A 175°C 2 x AWG 22 sheathed cable (silicone) 20g

*at 20°C (68°F) ambient temperature

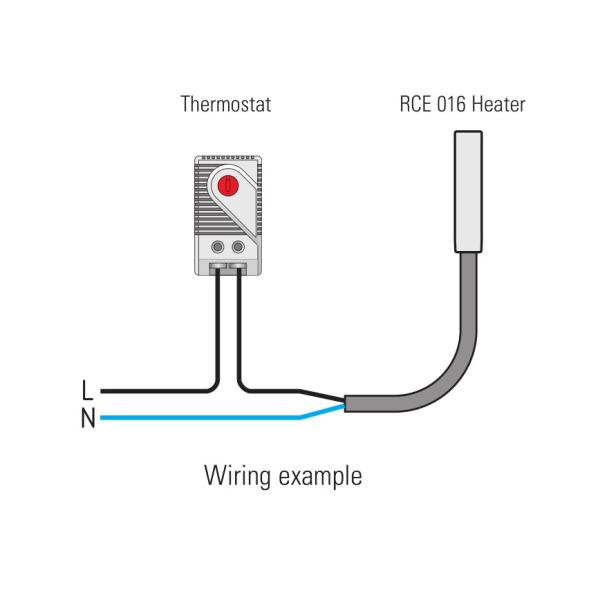

WIRING DIAGRAM

AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II

AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II

AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II

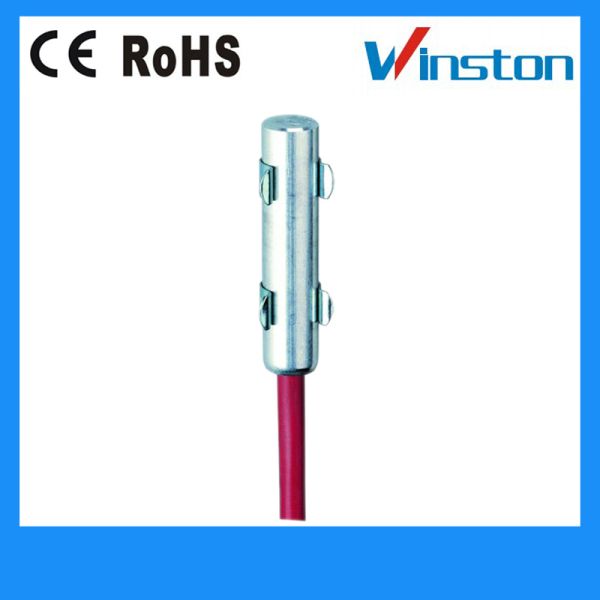

Product picture

AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II
