Specifications
Brand Name :
Winston/OEM
Model Number :
HGK047 10W 20W 30W
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Voltage :
110-120V AC/DC
Heating element :
PTC resistor - temperature limiting
Protection class :
IP44 / I (earthed)
Power :
10W 20W 30W
OEM :
Yes
Operating/Storage temperature :
-45 to +70°C (-49 to +158°F)
Description

DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting

Application

● Pressure clamp conectors

● Dynamic heating up

● Wide voltage range

● Temperature limiting

● Energy saving

● Clip fixing

● Quick installation

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

TECHNICAL PARAMETER

Operating voltage

120-240V AC/DC* (min. 110V, max. 265V)

Heating element

PTC resistor, temperature limiting

Heater body

extruded aluminium profile, anodised

Connection

3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²

Connection casing

plastic according to UL94 V-0, black

Mounting

clip for 35mm DIN rail, EN 60715

Fitting position

vertical airflow (air outlet up, connection on bottom)

Operating/Storage temperature

-45 to +70 °C (-49 to +158 °F)

Operating / Storage humidity

max. 90 % RH (non-condensing)

Protection type/Protection class

IP20 / I (earthed)

Approvals

VDE + UL File No. E150057

Accessoires

screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)

* Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

Art. No.

Operating voltage

Heating capacity⊃1;

Inrush current max.

Pre-fuse T (time delay)

Length (L)

Weight (approx.)

Connection

04700.0-00

120-240V AC/DC

10W

1.0A

1A

52mm

0.1kg

3 x 0,5mm2; x 300mm cable (silicone)

04701.0-00

120-240V AC/DC

20W

2.5A

2A

60mm

0.2kg

3 x 0,5mm2; x 300mm cable (silicone)

04702.0-00

120-240V AC/DC

30W

3.0A

2A

70mm

0.2kg

3 x 0,5mm2; x 300mm cable (silicone)

04700.9-00

110-120V AC/DC

10W

1.0A

1A

52mm

0.1kg

3 x AWG 20 x 300mm cable

04701.9-00

110-120V AC/DC

20W

1.5A

2A

70mm

0.2kg

3 x AWG 20 x 300mm cable

04702.9-00

110-120V AC/DC

30W

1.5A

2A

100mm

0.2kg

3 x AWG 20 x 300mm cable

1; at 20°C (68°F) ambient temperature;
2; (min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

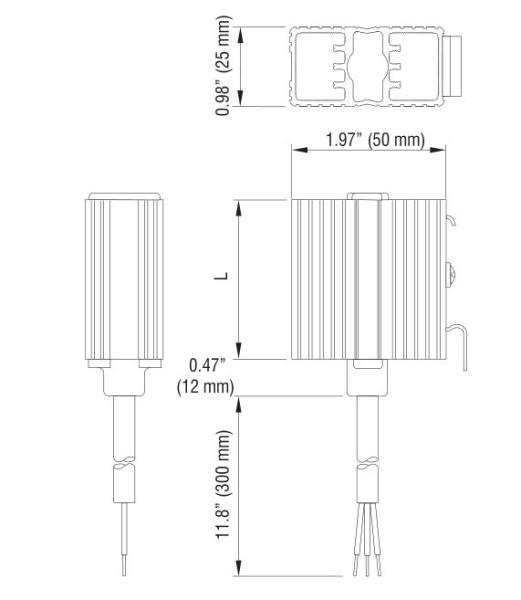

WIRING DIAGRAM

DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting

DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting

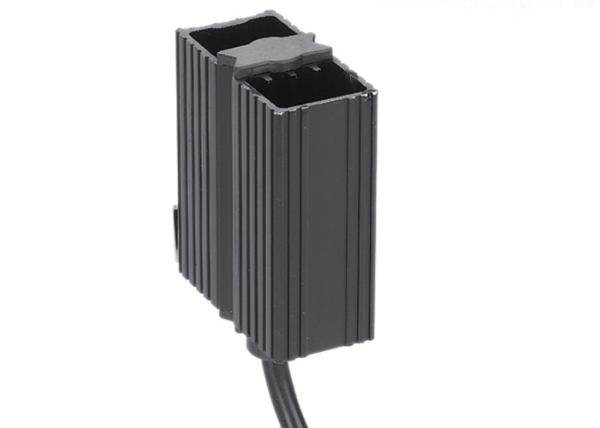

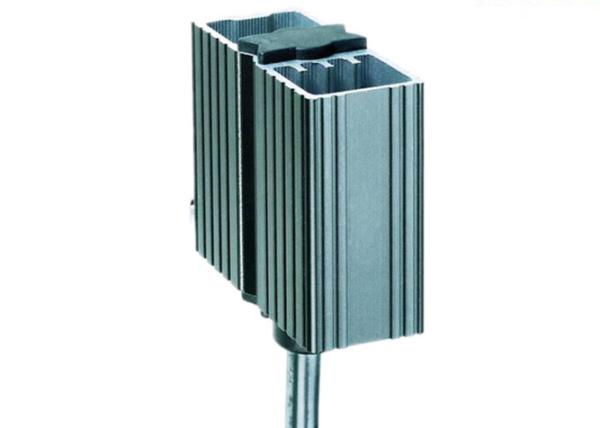

Product picture

DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting
