Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic
Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic
Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic
Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic
Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic
Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic
Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic
Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic
Specifications
Brand Name :
Winston/OEM
Model Number :
CS028 /CSL028
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Material :
Plastic
Voltage :
230VAC 120VAC
Power :
150W 250W 400W
Protection grade :
IP20
OEM :
Yes
Description

Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W

● Small, compact design

● Quiet in operation

● Dynamic heating up

● Clip or screw fixing

Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.

The heater is connected using the internal terminal connectors The small size of the CS/CSL 028 makes it ideal for use in enclosures where space is at a premium.

TECHNICAL PARAMETER

Heating element

PTC heating element

Inrush current max.

2A at 230VAC , 5A at 120VAC

Surface temperature

Max.65°C(149°F)

Axial fan, ball bearing

air flow 13.8m³/h, free flow(service life 40,000h at 40°C

Connection

2-pole clamp max. 2.5mm² (CSL 028 with strain relief), clamping screw torque 0.8Nm max.

Casing

plastic according to UL94-0, black

Mounting

clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm)

Fitting position

vertical airflow (air outlet up)

Weight

approx.0.3kg

Operating / Storage temperature

-45 to +70°C (-49 to +158°F)

Protection type / Protection class

IP20 / II (double insulated)

Note

other voltages on request

Art. No. clip fixing

Art. No. screw fixing

Series

Operating voltage

Heating capacity*

Inrush current max.

Pre-fuse T (time-delay)

Dimensions (H x W x D)

Weight (approx.)

02800.0-00

02800.0-01

CS 028

230VAC, 50/60Hz

150W

12A

6.3A

75 x 65 x 90mm

0.3kg

02811.0-00

02811.0-01

CSL 028

230VAC, 50/60Hz

250W

9A

6.3A

90 x 85 x 111mm

0.5kg

02810.0-00

02810.0-01

CSL 028

230VAC, 50/60Hz

400W

15A

10A

90 x 85 x 111mm

0.5kg

02800.9-00

02800.9-01

CS 028

120VAC, 50/60Hz

150W

6A

6.3A

75 x 65 x 90mm

0.3kg

02811.9-00

02811.9-01

CSL 028

120VAC, 50/60Hz

250W

6A

6.3A

90 x 85 x 111mm

0.5kg

02810.9-00

02810.9-01

CSL 028

120VAC, 50/60Hz

400W

9A

6.3A

90 x 85 x 111mm

0.5kg

at 20°C (68°F) ambient temperature

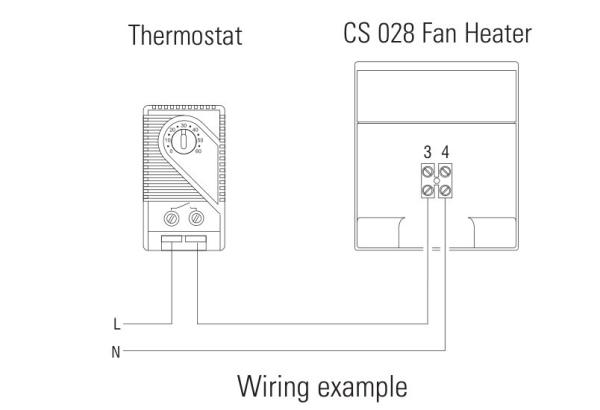

WIRING DIAGRAM

Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic

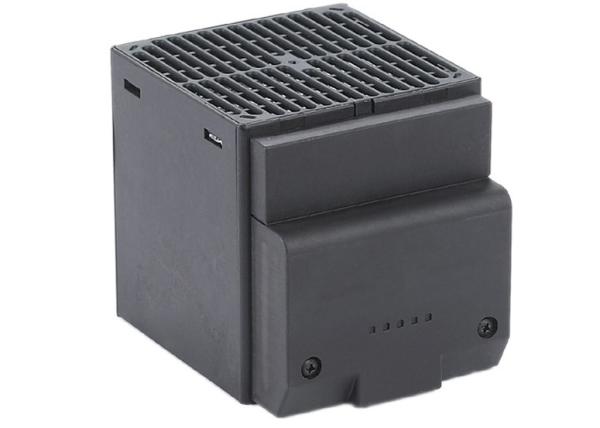

Product picture
Industrial Electric Heaters 230VAC , Compact Semiconductor Heater 400W Plastic
Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
