Specifications
Brand Name :
Winston/OEM
Model Number :
LMF32
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
OEM :
YES
ODM :
YES
Aviation connector :
YES
Output state: :
NO/NC/NO+NC
Condition :
Original new
Insulation resistance :
50MΩ
Material :
Metal Plastil
Color :
Orange
Working Temperature :
-25~+70º C
Description
Orange Bottle Lid Level Mini Proximity Switch Inductive Flush Non-Flush
Technique parameter

DETECTION DISTANCE 20mm
Flush DC 10-30V NPN NO LMF32-3020NA
NC LMF32-3020NB
NO+NC LMF32-3020NC
PNP NO LMF32-3020PA
NC LMF32-3020PB
NO+NC LMF32-3020PC
two wire system NO LMF32-3020LA
NC LMF32-3020LB
AC 90-250V SCR Control-lable silicon NO LMF32-2020A
NC LMF32-2020B
NO+NC
Relay output
DETECTION DISTANCE
Non-Flush DC 10-30V NPN NO
NC
NO+NC
PNP NO
NC
NO+NC
two wire system NO
NC
AC 90-250V SCR Control-lable silicon NO
NC
NO+NC
Relay output
Controloutput DC 200mA
SCR/ Relay
Output voltagc dropDC/AC NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current DC< 15mA, AC< 10mA
Standard detected object
Repeated precision
DC/AC
Working environment temperature -25~+70º C
Insulation resistance
Shell material
Protection grade
Altemative model at home and abroad

Features:
1 . Compact volume
2 . High precision of repeated location
3 . Arm location detection of robot
4 . Good performance of anti-interference.
5 . Many output forms
6 . With short-circuit protection and inverted connecting protection
7 . Adjustable swicth actiondistance(sensitivity)

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch category Output form


Lm: Inductance type
Cm: Capacitance type
Sm: Hall type
Am: Safety Explosion-proof type
Xm: Mimic Linear type
Hm: Reed type
Ru: Ultrasonic type

N: Three-wire Dc NpN Output
P: Three-wire Dc PnP Output
L: Two-wire Dc Output
: Ac Two-wire Output
J: Relay Contact Output
Np: NpN+PnP Double Output
Outward appearance code Output state


□: Cylinder type
F□: Angular Colum Type And Plane Installation Type


A: (no) normally Open (no)
B: (nc) Normally Close (nc)
C: (no-nc) normally Open-Normally Close (no+nc)
Mu: Mimic Voltage
Mi: Mimic Current
Mui: Voltage+Current
Working voltage Subsidiart functions


30: 6-36VDC 310:5-24VDC 320:12-60VDC
330: 10-30VDC 340:10-55VDC 350:10-60VDC
360: 5-36VDC 20:90-250VAC 210:24-250VAC
220: 380VAC40:12-240VDC/24-240AC
50: Special voltage

T: with aviation connector
Y: water proof,oil proof
I: special requirement
H: high temp resistance
R: ring type
Detection distance Long-distance


01: 1mm 05: 5mm 10: 10mm ......

 L: Long-distance



Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Spacing detection
2 . Stopper detection of grinding machine
3 . Adjustable swicth actiondistance(sensitivity)

4 . Inspection of the exiating of milk inside the paper package


Dimension

Orange Bottle Lid Level Mini Proximity Switch Inductive Flush Non-Flush

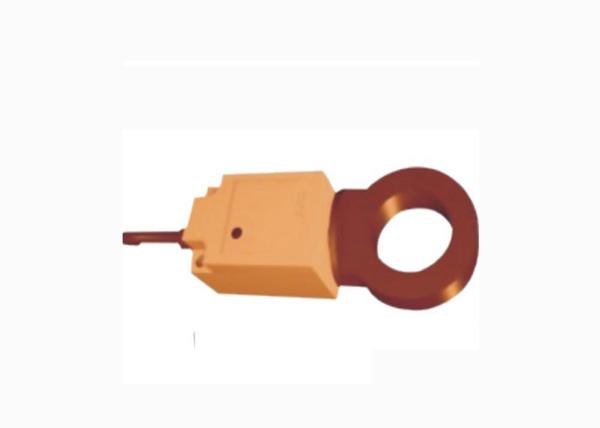

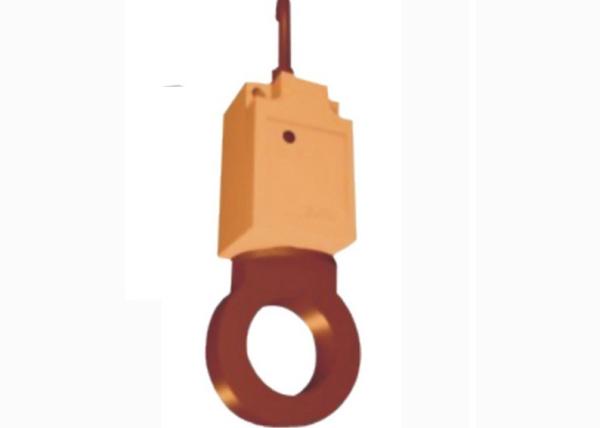

Product Picture

Orange Bottle Lid Level Mini Proximity Switch Inductive Flush Non-Flush

​

Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!
