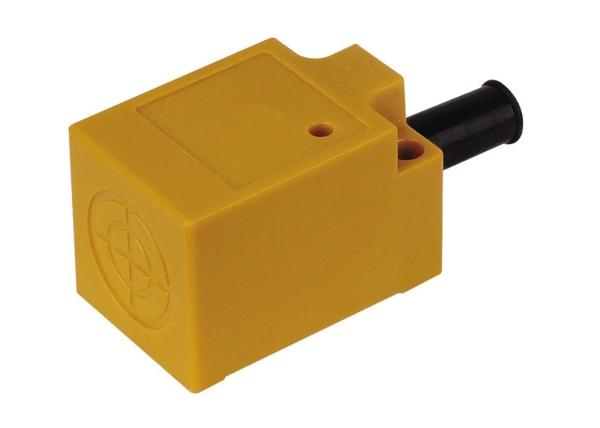

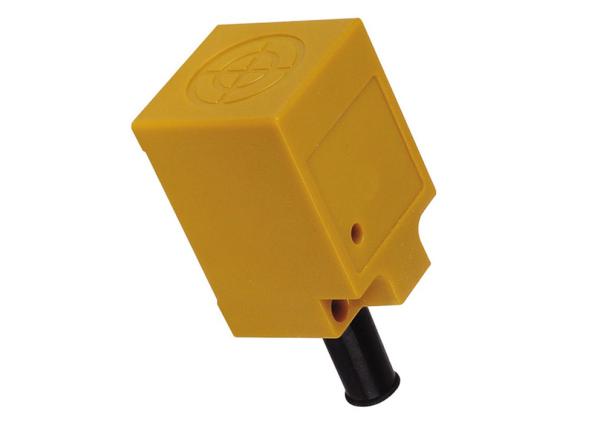

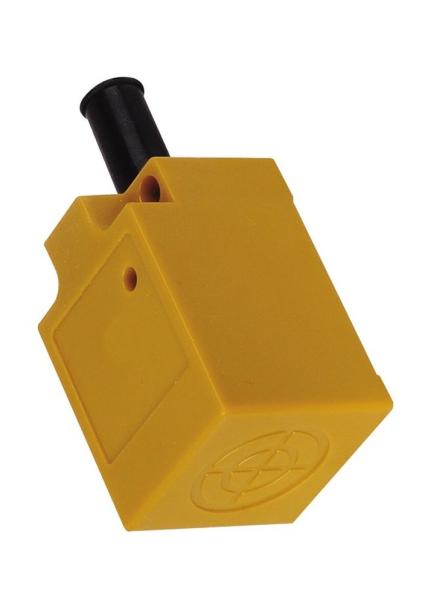

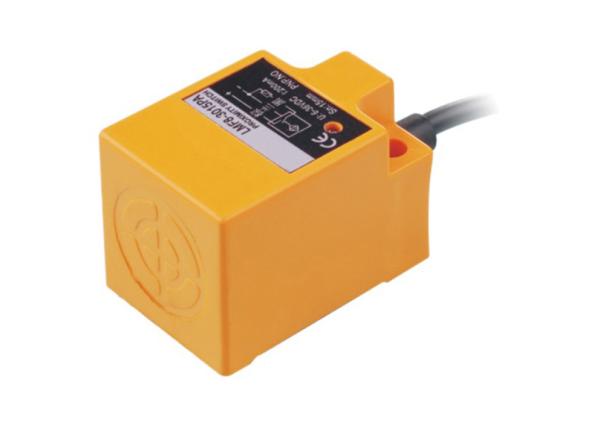

LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE
LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE
LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE
LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE
LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE
LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE
LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE
LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE
Specifications
Brand Name :
Winston/OEM
Model Number :
LMF7
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Standard detected object :
A3 iron
DC/AC :
200Hz/10Hz
OEM :
YES
ODM :
YES
Aviation connector :
YES
Repeated precision :
0.05
Output state: :
NO/NC/NO+NC
Protection degree :
IP 67
Shell Material :
ABS Resin
Condition :
Original new
Insulation resistance :
50MΩ
Working environment temperature :
-25℃—+75℃
Description
LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE
Technique parameter

Model NO. Detection distance Detection distance Output Flush
Form State
LMF8-3010NA 10mm DC6-36V NPN NO Flush
LMF8-3010NB 10mm DC6-36V NPN NC Flush
LMF8-3010NC 10mm DC6-36V NPN NO+NC Flush
LMF8-3010PA 10mm DC6-36V PNP NO Flush
LMF8-3010PB 10mm DC6-36V PNP NC Flush
LMF8-3010PC 10mm DC6-36V PNP NO+NC Flush
LMF8-3010LA 10mm DC6-36V Two wire system NO Flush
LMF8 -3010LB 10mm DC6-36V Two wire system NO Flush
LMF8 -2010A 10mm AC90-250V SCR control
lable silicon		 NO Flush
LMF8-2010B 10mm AC90-250V SCR control
lable silicon		 NC Flush
LMF8 -2010C 10mm AC90-250V SCR control
lable silicon		 NO+NC Flush
LMF8-3015NA 15mm DC6-36V NPN NO Non-flush
LMF8-3015NB 15mm DC6-36V NPN NC Non-flush
LMF8-3015NC 15mm DC6-36V NPN NO+NC Non-flush
LMF8-3015PA 15mm DC6-36V PNP NO Non-flush
LMF8-3015PB 15mm DC6-36V PNP NC Non-flush
LMF8-3015PC 15mm DC6-36V PNP NO+NC Non-flush
LMF8-3015LA 15mm DC6-36V Two wire system NO Non-flush
LMF8 -3015LB 15mm DC6-36V Two wire system NC Non-flush
LMF8 -2015A 15mm AC90-250V SCR control
lable silicon		 NO Non-flush
LMF8-2015B 15mm AC90-250V SCR control
lable silicon		 NC Non-flush
LMF8 -2015C 15mm AC90-250V SCR control
lable silicon		 NO+NC Non-flush

Features:


1 . High precision of repeated location

2 . Diversified exterior structures
3 . High on-off frequency.
4 . Wide voltage range
5 . Dust proof, vibration proof, water proof and oil proof

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category Output form

Lm: Inductance type

Cm: Capacitance type

Sm: Hall type

Am: Safety Explosion-proof type

Xm: Mimic Linear type

Hm: Reed type

Ru: Ultrasonic type

N: Three-wire Dc NpN Output

P: Three-wire Dc PnP Output

L: Two-wire Dc Output

: Ac Two-wire Output

J: Relay Contact Output

Np: NpN+PnP Double Output
Outward appearance code Output state

□: Cylinder type

F□: Angular Colum Type And Plane Installation Type

A: (no) normally Open (no)

B: (nc) Normally Close (nc)

C: (no-nc) normally Open-Normally Close (no+nc)

Mu: Mimic Voltage

Mi: Mimic Current

Mui: Voltage+Current
Working voltage Subsidiart functions

30: 6-36VDC 310:5-24VDC 320:12-60VDC

330: 10-30VDC 340:10-55VDC 350:10-60VDC

360: 5-36VDC 20:90-250VAC 210:24-250VAC

220: 380VAC40:12-240VDC/24-240AC

50: Special voltage

T: with aviation connector

Y: water proof,oil proof

I: special requirement

H: high temp resistance

R: ring type
Detection distance Long-distance

01: 1mm 05: 5mm 10: 10mm ......

 L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Arm location detection of robot

5. Spacing detection

Dimension

LMF8 IR Proximity Sensor Inductive Angular Column Type AC 90V - 250V CE

​

About Order

Important Information about sensor Conditions

1. All of the sensor are brand new, top quality components: absolutely no used items or counterfeits.

2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.

3. Prices, specifications, and availability of all items are subject to change without notice.

4. We are not responsible for typographical errors.

Payment Terms

- We accept payments made by Western Union,TT,PayPal.

-Since you made the payment successfully, you can send us the Reference NO or MTCN.

Shipping

1. We will ship the items within 5 working days after the payment is reached.

2. We ship to you by Express.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. Any import fees or charges are the buyer's responsibility.
