Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type
Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type
Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type
Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type
Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type
Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type
Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type
Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type
Specifications
Brand Name :
Winston/OEM
Model Number :
LMF24
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Standard detected object :
A3 iron
OEM :
YES
ODM :
YES
Aviation connector :
YES
Repeated precision :
0.05
Output state: :
NO/NC/NO+NC
Protection degree :
IP 67
Condition :
Original new
Insulation resistance :
>=50MΩ
Working environment temperature :
-25℃—+70℃
DC/AC :
500Hz/5Hz
Shell material :
ABS Plastil
Description
Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type​
Technique parameter

DETECTION DISTANCE 4mm
Flush DC 10-30V NPN NO LMF24-3004NA
NC LMF24-3004NB
NO+NC
PNP NO LMF24-3004PA
NC LMF24-3004PB
NO+NC
two wire system NO LMF24-3004LA
NC LMF24-3004LB
AC 90-250V SCR Control-lable silicon NO
NC
NO+NC
Relay output
DETECTION DISTANCE 5MM
Non-Flush DC 10-30V NPN NO LMF24-3005NA
NC LMF24-3005NB
NO+NC LMF24-3005NC
PNP NO LMF24-3005PA
NC LMF24-3005PB
NO+NC LMF24-3005PC
two wire system NO LMF24-3005LA
NC LMF24-3005LB
AC 90-250V SCR Control-lable silicon NO
NC
NO+NC
Relay output
Controloutput DC 200mA
SCR/ Relay
Output voltagc dropDC/AC NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current DC< 15mA, AC< 10mA
Standard detected object 12*12*1(A3 iron)
Repeated precision 0.05
DC/AC 500HZ/5HZ
Working environment temperature -25~+70º C
Insulation resistance 50MΩ
Shell material ABS Plastic
Protection grade IP67
Altemative model at home and abroad

Features:

1 . High on-off frequency.
2 . Wide voltage range
3 . Dust proof, vibration proof, water proof and oil proof

4 . With short-circuit protection and inverted connecting protection.

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category Output form

Lm: Inductance type

Cm: Capacitance type

Sm: Hall type

Am: Safety Explosion-proof type

Xm: Mimic Linear type

Hm: Reed type

Ru: Ultrasonic type

N: Three-wire Dc NpN Output

P: Three-wire Dc PnP Output

L: Two-wire Dc Output

: Ac Two-wire Output

J: Relay Contact Output

Np: NpN+PnP Double Output
Outward appearance code Output state

□: Cylinder type

F□: Angular Colum Type And Plane Installation Type

A: (no) normally Open (no)

B: (nc) Normally Close (nc)

C: (no-nc) normally Open-Normally Close (no+nc)

Mu: Mimic Voltage

Mi: Mimic Current

Mui: Voltage+Current
Working voltage Subsidiart functions

30: 6-36VDC 310:5-24VDC 320:12-60VDC

330: 10-30VDC 340:10-55VDC 350:10-60VDC

360: 5-36VDC 20:90-250VAC 210:24-250VAC

220: 380VAC40:12-240VDC/24-240AC

50: Special voltage

T: with aviation connector

Y: water proof,oil proof

I: special requirement

H: high temp resistance

R: ring type
Detection distance Long-distance

01: 1mm 05: 5mm 10: 10mm ......

 L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Spacing detection

2 . Bottle lid detection

3 . Stopper detection of grinding machine

4 . Gusrd of switch lead-wire

5 . Various location detection of machinery process center

6 . Arm location detection of robot

Dimension

Straight Connector LMF24 Inductive Proximity Sensor Switch Plane Installation Type

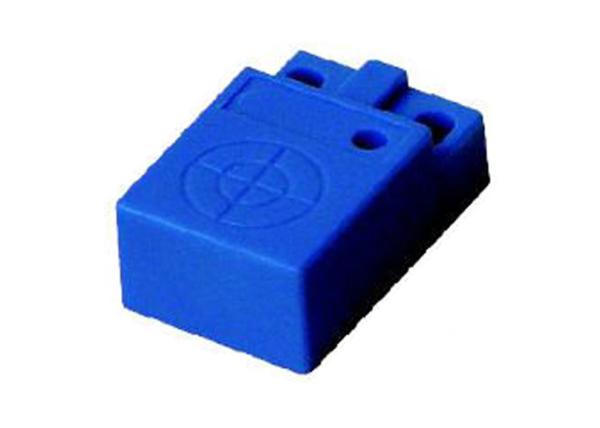

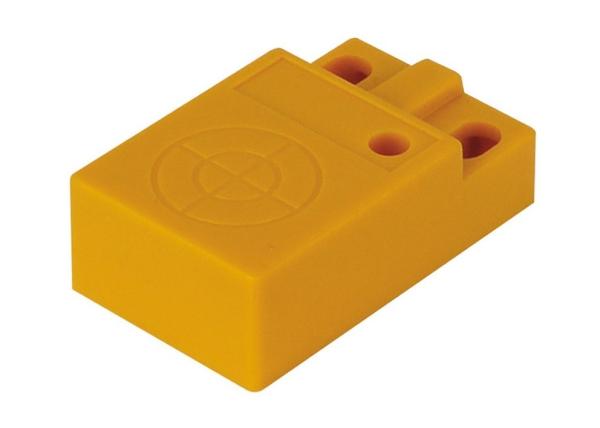

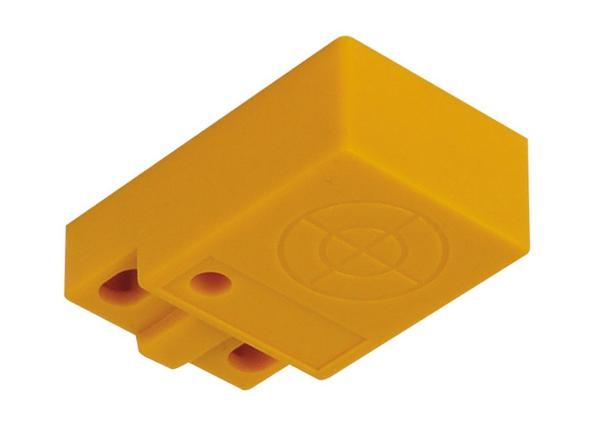

Product Picture
