Specifications
Brand Name :
Winston/OEM
Model Number :
WST Series
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD50 to USD1500
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Voltage :
380VAC
Power :
50W to 2500W
Phase :
3 phase
OEM :
Yes
RS485 :
Yes
Description

50W - 2500W 3 Phase Frequency Inverter 380VAC Braking Resistor CE CCC

Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied. The ceramic tube can function as resistance wire skeleton and heat radiator as well . This product can be customized to special needs of customers and applicable to simulation load test, equipend discharge, automated control and inverter’s energy loss brake.

Technical Data :
Rated Power Range: 50W-2500W
Voltage Range: 0.5KV—10KV
Resistance Range: 1R-1KR
Dielectric Voltage: AC2.5KV-20KV/1min 50Hz
IP Class: IP00
Vibration: 1g
Rated Temperature Rise: 375℃
Temperature Coefficient: 80-400ppm/℃
Carrier Material: 0Cr25AL5/Ni80Cr20 Optional
Advantage: Work in high voltage
Disadvantage: Inferior vibration
Packing: Paper box

Technique parameter:

Rated power (w) Dimension(mm)
L1(±2) L2(±5) L3(±3) D(±2) B B1 H H1(±3) N ￠d O
50 102 124 146 28 6.5 28 28 61 10 4.5 1.2
60 102 124 146 28 6.5 28 28 61 10 4.5 1.2
80 152 174 196 28 6.5 28 28 61 10 4.5 1.2
100 182 204 226 28 6.5 28 28 61 10 4.5 1.2
120 182 204 226 28 6.5 28 28 61 10 4.5 1.2
150 195 217 239 40 8 40 41 81 12 5.5 2
200 195 217 239 40 8 40 41 81 12 5.5 2
300 282 304 326 40 8 40 41 81 12 5.5 2
400 282 304 326 40 8 40 41 81 12 5.5 2
500 316 338 360 50 8 50 45 101 16 6 2
600 345 367 389 40 8 40 41 81 12 5.5 2
750 316 338 360 50 8 50 45 101 16 6 2
1000 300 325 350 60 8.5 60 60 119 16 6 2
1200 415 440 465 60 8.5 60 60 119 16 6 2
1500 415 440 465 60 8.5 60 60 119 16 6 2
2000 510 535 560 60 8.5 60 60 119 16 6 2
2500 600 625 650 60 8.5 60 60 119 16 6 2

Outline& Mounting Dimension(Unit:mm)

50W - 2500W 3 Phase Frequency Inverter 380VAC Braking Resistor CE CCC

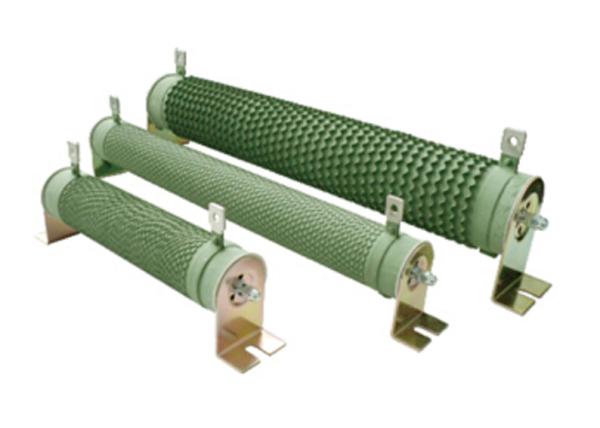

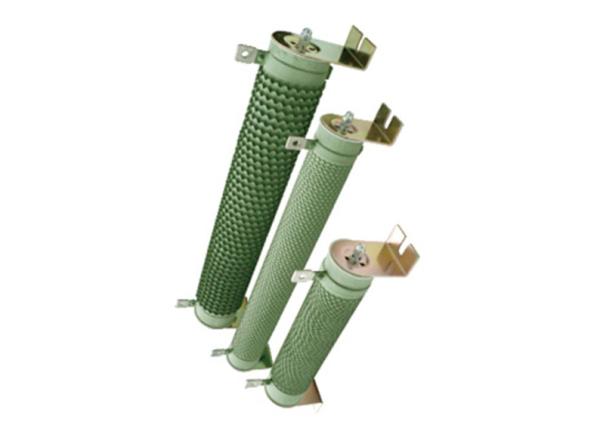

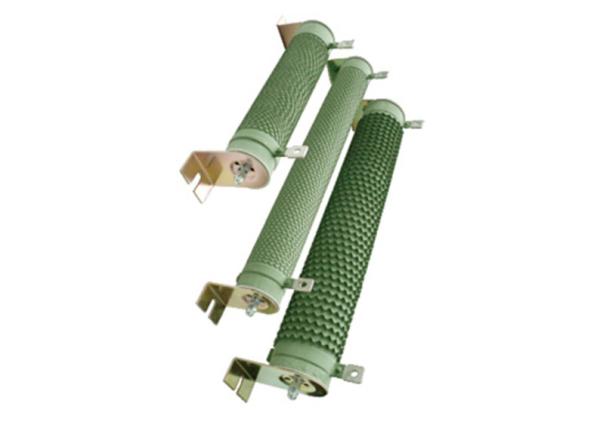

Product picture:

50W - 2500W 3 Phase Frequency Inverter 380VAC Braking Resistor CE CCC

Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
