Specifications
Brand Name :
Winston/OEM
Model Number :
CM48
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
OEM :
YES
ODM :
YES
Aviation connector :
YES
Output state: :
NO/NC/NO+NC
Condition :
Original new
Protection grade :
IP54
Material :
ABS Plastic
Insulation resistance :
50MΩ
Wording temperature :
-25℃~70℃
DC/AC :
50Hz/10Hz
Detection object :
Conductor and dielectric body
Description
50Hz / 10Hz CM48 Proximity Capacitive Sensor Strong Protection Distribution

Features:

1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) High on-off frequency commonly 600Hz
7) Wide voltage range
8) Dustproof, vibration-proof, waterproof and oil-proof

Technique parameter

Non-flush Detection distance 0-10mm
DC6-36V NPN NO CM20-3010NA
NC CM20-3010NB
NO+NC CM20-3010NC
PNP NO CM20-3010PA
NC CM20- 3010PB
NO+NC CM20- 3010PC
AC90-250V SRC Control label silicon NO
NC
Control output DC 200mA
SCR/Relay 300mA
Detect object conductor and dielectric body
Consumption current DC<15mA AC<10mA
Output current DC:200mA AC:300mA
Output voltage drop DC<3V AC<7V
Response frequency DC:50HZ AC:10HZ
Shell material Resin/Metal
Working environment temperature below 25C to 70C
Insulation resistance 50MΩ
Shell meterial ABS Resin
Protection grade IEC standard IP54

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch category Output form


Lm: Inductance type
Cm: Capacitance type
Sm: Hall type
Am: Safety Explosion-proof type
Xm: Mimic Linear type
Hm: Reed type
Ru: Ultrasonic type

N: Three-wire Dc NpN Output
P: Three-wire Dc PnP Output
L: Two-wire Dc Output
: Ac Two-wire Output
J: Relay Contact Output
Np: NpN+PnP Double Output
Outward appearance code Output state


□: Cylinder type
F□: Angular Colum Type And Plane Installation Type


A: (no) normally Open (no)
B: (nc) Normally Close (nc)
C: (no-nc) normally Open-Normally Close (no+nc)
Mu: Mimic Voltage
Mi: Mimic Current
Mui: Voltage+Current
Working voltage Subsidiart functions


30: 6-36VDC 310:5-24VDC 320:12-60VDC
330: 10-30VDC 340:10-55VDC 350:10-60VDC
360: 5-36VDC 20:90-250VAC 210:24-250VAC
220: 380VAC40:12-240VDC/24-240AC
50: Special voltage

T: with aviation connector
Y: water proof,oil proof
I: special requirement
H: high temp resistance
R: ring type
Detection distance Long-distance


01: 1mm 05: 5mm 10: 10mm ......

 L: Long-distance



Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Spacing detection
2 . Various location detection of machinery process center

3 . Inspection of the exiating of milk inside the paper package

4 . Arm location detection of robot

5 . Bottle lid detection

6 . Stopper detection of grinding machine

Dimension

50Hz / 10Hz CM48 Proximity Capacitive Sensor Strong Protection Distribution

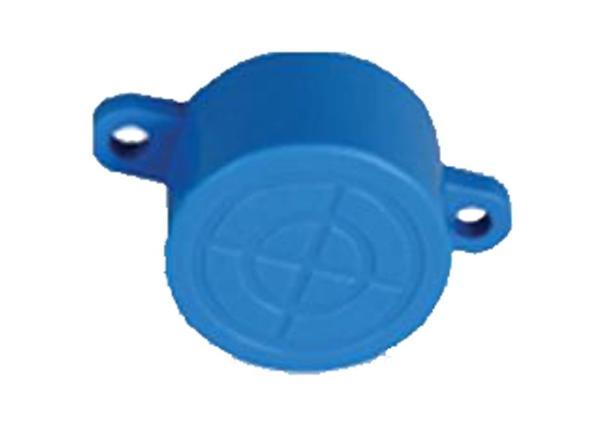

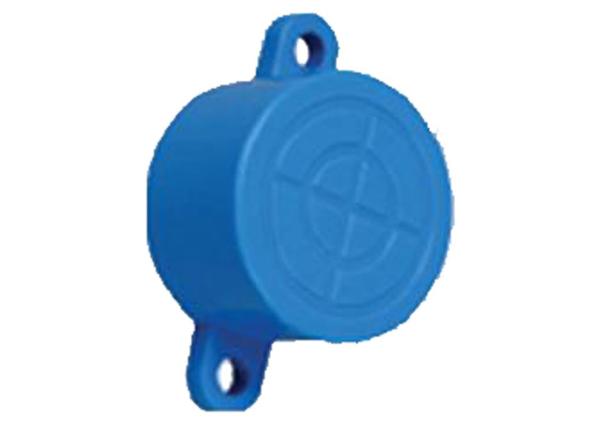

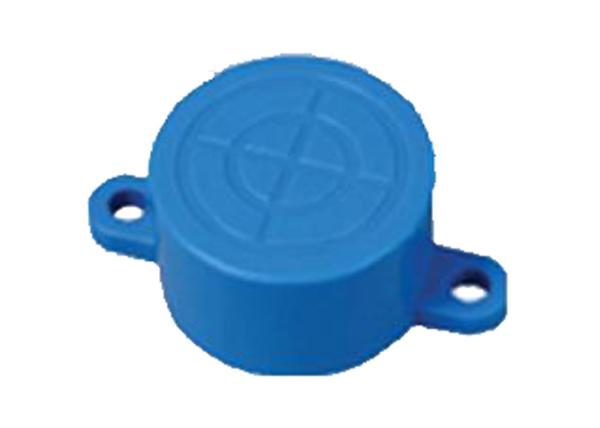

Product Picture

50Hz / 10Hz CM48 Proximity Capacitive Sensor Strong Protection Distribution

FAQ

Q: How to order our product ?

A: 1). Please tell us the model and quantity and other request you need.

2). We make the PI for you.

3). After you confirm the PI, we arrange the order for you after receiving your payment.

4). After the goods finished, we send the goods out to you and tell you the tracking number.

5). We will track your goods until you receive the goods.

Q: What's your warranty ?

A: Two years

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
