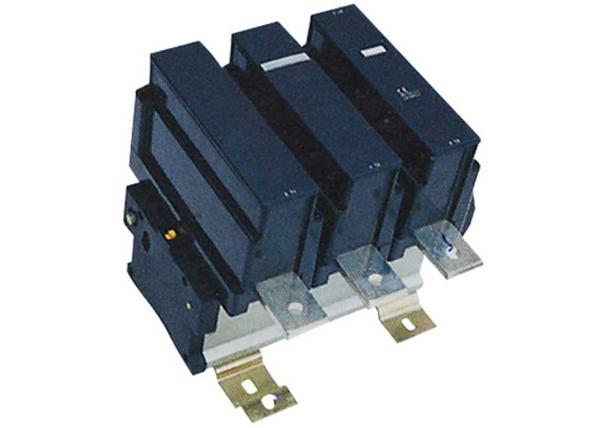

CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor
CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor
CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor
CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor
CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor
CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor
CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor
CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor
Specifications
Brand Name :
Winston/OEM
Model Number :
CJX2-D115 CJX2-D150 CJX2-170 CJX2-205 CJX2-245 CJX2-300 CJX2-410 CJX2-475 CJX2-620
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Current :
115A 150A 170A 205A 245A 300A 410A 475A 620A
OEM :
Yes
Coil voltage :
24V 42V 48V 110V 220V 230V 240V 380V 400V 415V 440V 500V 600V
Description

CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor

CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms toIEC60947-4-1 stardand.

TECHNICAL PARAMETER

Type CJX2-D115 CJX2-D150 CJX2-D170 CJX2-D205 CJX2-D245 CJX2-D300 CJX2-D410 CJX2-D475 CJX2-D620
Rated workingcurrent (A) AC3 115 150 170 205 245 300 410 475 620
AC4 52 60 75 85 105 117 138 147 180

Standard powerratings of 3-phase

motors50/60Hz incategory AC-3

 220/230V 30 40 55 63 75 100 110 147 200
380/400V 55 75 90 110 132 160 220 265 335
415V 59 80 100 110 132 180 220 280 375
500V 75 90 110 129 160 200 250 355 400
660/690V 80 100 110 129 160 220 280 355 450
Rated heat current (A) 200 250 250 275 315 400 500 700 1000
Electrical life AC3 (x104) 200 60 60 50 50 50 30 30 20
AC4 (x104) 15 15 15 15 15 15 8 8 5
Mechanical life (x104) 300 300 300 300 300 300 300 100 100 100

Type

CJX2-D115

CJX2-D150

CJX2-D170

CJX2-D205

CJX2-D245

CJX2-D300

CJX2-D410

CJX2-D475

CJX2-D620

Rated workingcurrent (A)

AC3

115

150

170

205

245

300

410

475

620

AC4

52

60

75

85

105

117

138

147

180

Standard powerratings of 3-phase motors50/60Hz incategory AC-3

220/230V

30

40

55

63

75

100

110

147

200

380/400V

55

75

90

110

132

160

220

265

335

415V

59

80

100

110

132

180

220

280

375

500V

75

90

110

129

160

200

250

355

400

660/690V

80

100

110

129

160

220

280

355

450

Rated heat current (A)

200

250

250

275

315

400

500

700

1000

Electrical life

AC3 (x104)

200

60

60

50

50

50

30

30

20

AC4 (x104)

15

15

15

15

15

15

8

8

5

Mechanical life (x104)

300

300

300

300

300

300

300

100

100

100

Standard Control Circuit Voltage

Volts 24 42 48 110 220 230 240 380 400 415 440 500 600
50Hz B5 D5 E5 F5 M5 P5 U5 Q5 V5 N5 R5 S5 Y5
60Hz B6 D6 E6 F6 M6 - U6 Q6 - - R6 - -
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7 -

-

WIRING DIAGRAM

CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor

CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor

FAQ

Q: How to order our product ?

A:1). Please tell us the model and quantity and other request you need.

2). We make the PI for you.

3). After you confirm the PI, we arrange the order for you after receiving your payment.

4). After the goods finished, we send the goods out to you and tell you the tracking number.

5). We will track your goods until you receive the goods.

Q: What's your warranty ?

A: Two years

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
