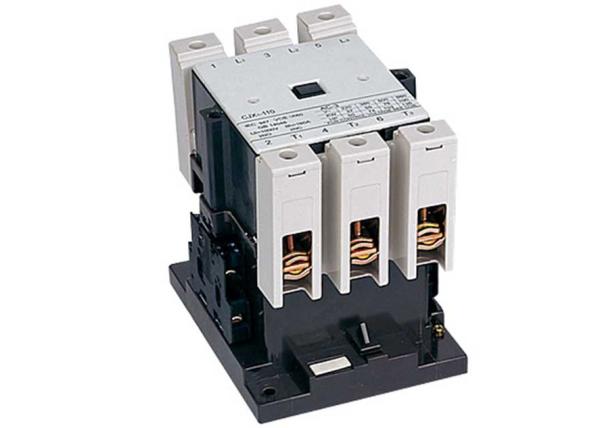

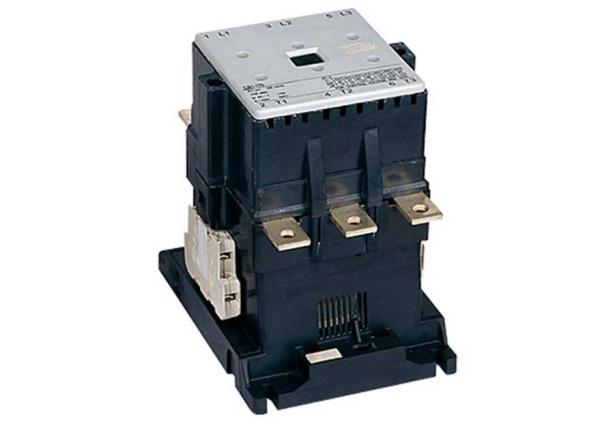

IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact
Specifications
Brand Name :
Winston/OEM
Model Number :
CJX1(3TF)
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Material :
ABS
Frequency :
50/60HZ
Current :
9A to 475A
OEM :
YES
Standard :
IEC60947-4-1
Max voltage :
1000V
Contact :
Silver Alloy
Description

IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact

CJX1 series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to 1000V,rated operation current 9~475A under AC-3 duty.It is mainly used for making/breakingelectric circuit at a long distance & for frequent starting/stopping & with thermal relay to com-pose a magnetic motor starter.The product conforms to IEC60947-4-1 stardand.

TECHNICAL PARAMETER

Type CJX1-9
CJX1-12		 CJX1-16
CJX1-22		 CJX1-32 CJX1-45
CJX1-63		 CJX1-75
CJX1-85		 CJX1-110
CJX1-140		 CJX1-170
CJX1-205		 CJX1-250
CJX1-300		 CJX1-400
CJX1-475

Mechanicalendurance

(×106)

 10 10 10 8 8 8 8 8 8

Conventionalthermal

current(A)

 20 30 45 80 100 160 210 300 400/550

Rated insulationvoltag

e(V)

 660 660 660 1000 1000 1000 1000 1000 1000

Rated(380V)

operatingcurrent(A)

 AC-3 9/12 16/22 32 45/63 75/85 110/140 170/205 250/300 400/475
AC-4 3.3/4.3 7.7/8.5 15.6 24/28 34/42 54/68 75/96 110/125 150

Power ofcontrollablemotor(KW)

AC-3

 380V 4/5.5 7.5/11 15 22/30 37/45 55/75 90/110 132/160 200/250
660V 5.5/7.5 11 23 39/55 67 100 156 235 375

Power ofcontrollablemotor(KW)

AC-4

 380V 1.4/1.9 3.5/4 7.5 12/14 17/21 27/35 38/50 58/66 81
660V 2.4/3.3 6/6.6 13 20.8/24 29.5/36 46.9/60 66/86 100/114 140

Frequencyof operation

(l/h)

 AC3 1000 750 750 1200/1000 1000/850 1000/750 700/500 700/500 500/420
AC4 250 250 250 400/300 300/250 300/200 200/130 200/130 150

Electricalendurance

(×106)

 AC3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2
AC4 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Operating voltagerange of coil (0.8~1.1)Ue

Powerconsump-tion

of coil

Atracting

(VA)

 10 10 12.1 17 32 39 58 84 115

Starting

(VA)

 68 69 101 183 330 550 910 1430 2450

Rated insulationvoltage

of auxitiarycontacts(V)

 690 690 690 690 690 690 690 690 690

Conventionalthermal

current ofauxitiary contacts(A)

 10 10 10 10 10 10 10 10 10

Ratedoperatingcurrent

ofauxitiarycontacts(A)

AC15380

/220

 6/10 6/10 4/6 4/6 4/6 4/6 4/6 4/6 4/6

DC

13220V

 0.45 0.45 0.48 0.48 0.48 0.48 0.48 0.48 0.48
Ratedvoltage ofthe controlcoil(V) 50Hz 24,36,48,110,127,220,380,etc
60Hz 24,110,220,440,etc.

WIRING DIAGRAM

IEC60947-4-1 Stardand 1000V Magnetic AC Contactor 9A - 475A Silver Alloy Contact

FAQ

Q: How to order our product ?

A:1). Please tell us the model and quantity and other request you need.

2). We make the PI for you.

3). After you confirm the PI, we arrange the order for you after receiving your payment.

4). After the goods finished, we send the goods out to you and tell you the tracking number.

5). We will track your goods until you receive the goods.

Q: What's your warranty ?

A: Two years

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
