Specifications
Brand Name :
Winston/OEM
Model Number :
G115
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
Condition :
Original new
Protection grade :
IP64
Working temperature :
-25~+55℃
OEM :
YES
ODM :
YES
Detected object :
Transparent or opaque body
DC/AC Consumption current :
DC<15mA, AC<10mA
Theory :
Optical Sensor
materia :
Metal
Description
Product Accounting Metal Photoelectric Switch Sensitivity Action Indicator Light

Main features:

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . High on-off frequency
5 . Dust proof,vibration proof,water proof and oil proof.
6 . With short-circuit protection and inverted connecting protection.
7 . Long service life

Application illustration or photoelectric switch

1 . Guard again restricted zone being invaded

2 . Check out the broken strip from carding machine

3 . Decection of thick carton

4 . Check out the broken or faulted tobacco rolling paper

Photoelectric switch Principle of photoeletric switch

The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.

Model composeition and definition of infrared ray photoelectric switch


G 18 3 A 10 N A □
—— —— —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Technical Parameters:

Diffuse type Detection distance
10-30VDC NPN NO
NC
NO+NC
PNP NO
90-250VAC NC
NO+NC
SCR Contro Hable silicon NO
NC
Relay output
Retroreflective type Detection distance
10-30VDC NPN NO
NC
NO+NC
PNP NO
90-250VAC NC
NO+NC
SCR Contro Hable silicon NO
NC
Relay output
Through beam Detection distance 25mm
10-30VDC NPN NO G115-3E25NA
NC G115-3E25NB
NO+NC G115-3E25NC
PNP NO G115-3E25PA
90-250VAC NC G115-3E25PB
NO+NC G115-3E25PC
SCR Contro Hable silicon NO
NC
Relay output
DC/SCR Control output DC:200mA,AC:300mA,Relay:2A
DC/AC Consumption current DC<15mA,AC<10mA
DC/AC Response time Dc<2ms,AC<20ms
Directional angle 3 . -10 .
Detected object transparent or opaque body
Working environment temperature 25~+55ºC
Intensity of illumination of working environment Sunlight under 1000LX incandescent lamp under 3000LX
Shell material Metal
Protection grade IP54

Dimension

Product Accounting Metal Photoelectric Switch Sensitivity Action Indicator Light

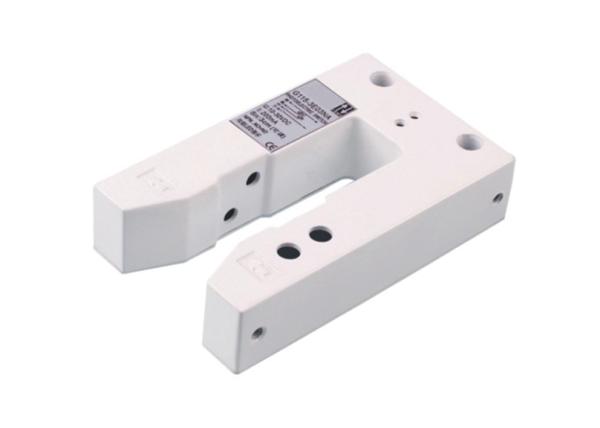

Product Picture

Product Accounting Metal Photoelectric Switch Sensitivity Action Indicator Light
​

Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!
