Specifications
Brand Name :
Winston/OEM
Model Number :
G71
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
Condition :
Original new
Protection grade :
IP54
Working temperature :
-25~-55℃
OEM :
YES
ODM :
YES
Detected object :
Transparent or opaque body
DC/AC Consumption current :
DC<15mA, AC<10mA
Theory :
Optical Sensor
Description
G71 Photoelectric Switch Waterproof , Photoelectric Proximity Sensor Long Service Life

Mains features:

1 . Compact volume
2 . Diversified exterior structures
3 . Many output forms
4 . Dust proof,vibration proof,water proof and oil proof.
5 . Long service life

Application illustration or photoelectric switch

1 . Detecting if beer is affixed with mark or not

2 . Builted-in-power type photoelectric switch

3 . Built-in-power type photoelectric

4 . Check out the broken or faulted tobacco rolling paper

Photoelectric switch Principle of photoeletric switch

The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.

Model composeition and definition of infrared ray photoelectric switch


G 18 3 A 10 N A □
—— —— —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Technical Parameters:

Diffuse type Detection distance 50cm
10-30VDC NPN NO G71-3A50NA
NC G71-3A50NB
NO+NC G71-3A50NC
PNP NO G71-3A50PA
90-250VAC NC G71-3A50PB
NO+NC G71-3A50PC
SCR Contro Hable silicon NO
NC
Relay output
Retroreflective type Detection distance 2m
10-30VDC NPN NO G71-3B2NA
NC G71-3B2NB
NO+NC G71-3B2NC
PNP NO G71-3B2PA
90-250VAC NC G71-3B2PB
NO+NC G71-3B2PC
SCR Contro Hable silicon NO
NC
Relay output
Through beam Detection distance 5m
10-30VDC NPN NO G71-3C5NA
NC G71-3C5NB
NO+NC G71-3C5NC
PNP NO G71-3C5PA
90-250VAC NC G71-3C5PB
NO+NC G71-3C5PC
SCR Contro Hable silicon NO
NC
Relay output
DC/SCR Control output DC:200mA
DC/AC Consumption current DC<15mA,AC<10mA
DC/AC Response time AC/Dc<2ms
Directional angle 3 . -10 .
Detected object transparent or opaque body
Working environment temperature 25~+55ºC
Intensity of illumination of working environment Sunlight under 1000LX incandescent lamp under 3000LX
Shell material Plastic
Protection grade IP54

Dimension

G71 Photoelectric Switch Waterproof , Photoelectric Proximity Sensor Long Service Life

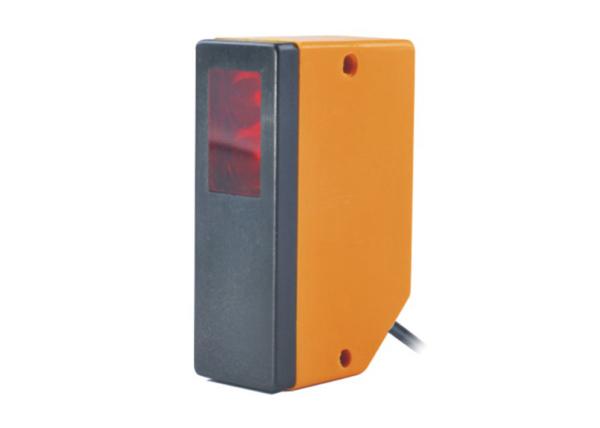

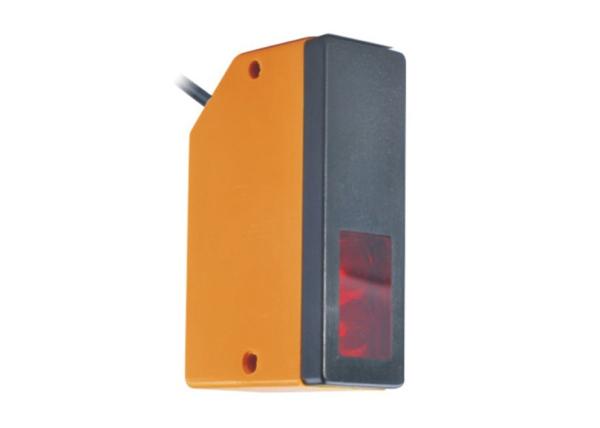

Product Picture

G71 Photoelectric Switch Waterproof , Photoelectric Proximity Sensor Long Service Life
​

Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!
