Specifications
Brand Name :
Winston/OEM
Model Number :
G50
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
Condition :
Original new
Protection grade :
IP54
Shell material :
Plastic
Working temperature :
-25~+55℃
OEM :
YES
ODM :
YES
Detected object :
Transparent or opaque body
DC/AC Consumption current :
DC<15mA, AC<10ms
Theory :
Optical Sensor
Description

DC 10V - 30V Photocell Sensor Switch High Precision Through Type Reset Button

Main features:


1 . high precision of repeated location
2 . Diversified exterior structures
3 . Many output forms
4 . High on-off frequency
5 . Dust proof,vibration proof,water proof and oil proof.
6 . Long service life

Application illustration or photoelectric switch

1 . Check out the broken or faulted tobacco rolling paper

2 . Decection of thick carton

3 . Built-in-power type photoelectric switch

4 . Product accounting

Photoelectric switch Principle of photoeletric switch

The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.

Model composeition and definition of infrared ray photoelectric switch


G 18 3 A 10 N A □
—— —— —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Technical Parameters:

Diffuse type Detection distance 30cm 50cm
10-30VDC NPN NO G50-3A30NA
NC G50-3A30NB
NO+NC G50-3A30NC
PNP NO G50-3A30PA
90-250VAC NC G50-3A30PB
NO+NC G50-3A30PC
SCR Contro Hable silicon NO
NC
Relay output
Retroreflective type Detection distance 4m
10-30VDC NPN NO G50-3B4NA
NC G50-3B4NB
NO+NC G50-3B4NC
PNP NO G50-3B4PA
90-250VAC NC G50-3B4PB
NO+NC G50-3B4PC
SCR Contro Hable silicon NO
NC
Relay output
Through beam Detection distance 5m
10-30VDC NPN NO G50-3C5NA
NC G50-3C5NB
NO+NC G50-3C5NC
PNP NO G50-3C5PA
90-250VAC NC G50-3C5PB
NO+NC G50-3C5PC
SCR Contro Hable silicon NO G50-2C5LA
NC
Relay output G50-2C5JC
DC/SCR Control output DC:200mA
DC/AC Consumption current DC<15mA,AC<10mA
DC/AC Response time AC/Dc<2ms
Directional angle 3 . -10 .
Detected object transparent or opaque body
Working environment temperature 25~+55ºC
Intensity of illumination of working environment Sunlight under 1000LX incandescent lamp under 3000LX
Shell material Plastic
Protection grade IP54

Dimension

DC 10V - 30V Photocell Sensor Switch High Precision Through Type Reset Button

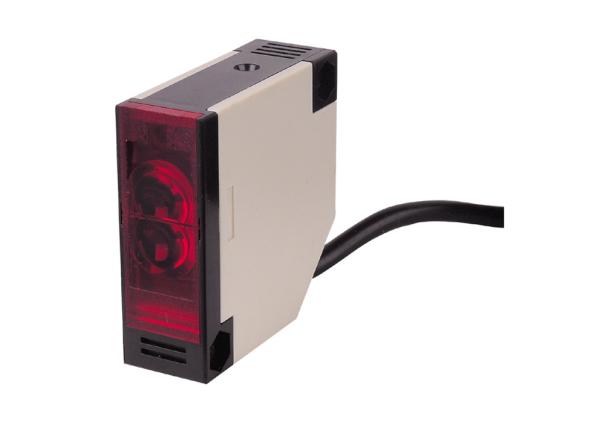

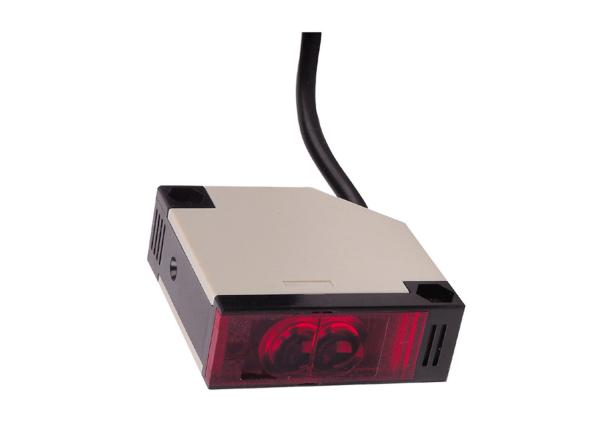

Product Picture

DC 10V - 30V Photocell Sensor Switch High Precision Through Type Reset Button
​

FAQ

Q1: what is the warranty for your product?

A1: We guaranteed for 2 years, any quality problem happened in this period

of time for our reason, we will send the replacement parts in next order.

We will compensate your loss if our quality problem caused your loss.

Q2: How soon can I get samples for test to check quality?

A2: We can provide 1-3pcs free samples. The lead time for our regular products

is 2-3 days. For customized products need 5-7 days. We will also customized

nice product to meet your requirement.

Q3: Can you accept OEM&ODM service business?

A3: Yes, we can.Our Month Supply Ability is 100000PCS.Our R&D team can

customize the special product as your needs. You can visit our website to learn

more about our excellent R & D team, and you will believe you can get

satisfied product.

Q4: Do you accept small quantity orders?

A4: Yes, we accept. But no doubt that the more the amount of your order, you

will get more discounts. If you have a regular monthly order volume, we also would

like to give you the appropriate discount.
