Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor
Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor
Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor
Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor
Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor
Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor
Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor
Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor
Specifications
Brand Name :
Winston/OEM
Model Number :
G40
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
Condition :
Original new
Protection grade :
IP50
Shell material :
Metal
Working temperature :
-25~+55℃
OEM :
YES
ODM :
YES
Detected object :
Transparent or opaque body
DC/AC Consumption current :
DC<15mA, AC<10ms
Theory :
Optical Sensor
Description

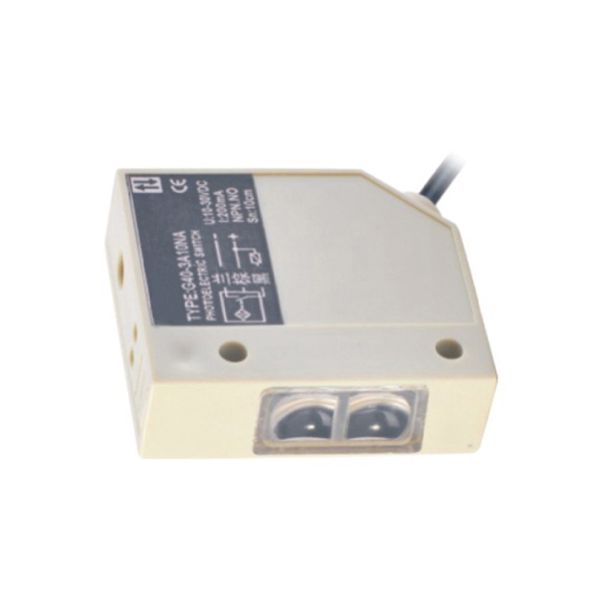

Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor

Specifications

* G40 Diffuse type Photoelectric sensor switch
* OEM,ODM
* Detection distance: 10cm
* NPN,PNP
* NO,NC,NO+NC

Application illustration or photoelectric switch

1 . Decetion of thick carton

2 . Check out the borken shrip from carding machine

3 . Built-in-power type photoelectric switch

4 . Detecting if beer is affixed with mark or not

Photoelectric switch Principle of photoeletric switch

The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.

Model composeition and definition of infrared ray photoelectric switch


G 18 3 A 10 N A □
—— —— —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Technical Parameters:

Diffuse type Detection distance 10-30cm
10-30VDC NPN NO G40-3A10NA
NC G40-3A10NB
NO+NC G40-3A10NC
PNP NO G40-3A10PA
90-250VAC NC G40-3A10PB
NO+NC G40-3A10PC
SCR Contro Hable silicon NO
NC
Relay output
Retroreflective type Detection distance 3m
10-30VDC NPN NO G40-3B3NA
NC G40-3B3NB
NO+NC G40-3B3NC
PNP NO G40-3B3PA
90-250VAC NC G40-3B3PB
NO+NC G40-3B3PC
SCR Contro Hable silicon NO
NC
Relay output
Through beam Detection distance 4m
10-30VDC NPN NO G40-3C4NA
NC G40-3C4NB
NO+NC G40-3C4NC
PNP NO G40-3C4PA
90-250VAC NC G40-3C4PB
NO+NC G40-3C4PC
SCR Contro Hable silicon NO
NC
Relay output
DC/SCR Control output DC: 200mA
DC/AC Consumption current DC<15mA,AC<10mA
DC/AC Response time AC/Dc<2ms
Directional angle 3 . -10 .
Detected object transparent or opaque body
Working environment temperature 25~+55ºC
Intensity of illumination of working environment Sunlight under 1000LX incandescent lamp under 3000LX
Shell material Metal
Protection grade IP54

Dimension

Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor

Product Picture

Light Receiver Photoelectric Switch Projector , Metal Proximity Sensor
​

FAQ

Q1: what is the warranty for your product?

A1: We guaranteed for 2 years, any quality problem happened in this period

of time for our reason, we will send the replacement parts in next order.

We will compensate your loss if our quality problem caused your loss.

Q2: How soon can I get samples for test to check quality?

A2: We can provide 1-3pcs free samples. The lead time for our regular products

is 2-3 days. For customized products need 5-7 days. We will also customized

nice product to meet your requirement.

Q3: Can you accept OEM&ODM service business?

A3: Yes, we can.Our Month Supply Ability is 100000PCS.Our R&D team can

customize the special product as your needs. You can visit our website to learn

more about our excellent R & D team, and you will believe you can get

satisfied product.

Q4: Do you accept small quantity orders?

A4: Yes, we accept. But no doubt that the more the amount of your order, you

will get more discounts. If you have a regular monthly order volume, we also would

like to give you the appropriate discount.
