IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38
IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38
IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38
IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38
IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38
IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38
IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38
IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38
Specifications
Brand Name :
Winston/OEM
Model Number :
XMF38
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Detectable object :
Metal
Aviation connector :
YES
Voltage range :
15-30VDC
Condition :
Original new
Protection grade :
IP54
Material :
Plastic , Metal
Output signal :
PNP Simulation
Wording temperature :
-10℃~+70℃
Voltage fluctuation :
<=5%
OEM :
YES
ODM :
YES
Description
IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38
Technique parameter

Detectable object Metal
Detection distance Flush type:40mm Non-Flush:50mm
Model available Current type XMF38-3040PMI XMF38-3050PMI
Voltage type XMF38-3040PMU XM38-3050PMU
Voltage range 15-30VDC
at the time of detection ≤200mA^<4mA
Consumption at the time of non-detection ≤20mA
Loading resistance Current type 0~300Ω
Voltage type ≥2.2KΩ
Output Current type 4~20mA
Voltage type 0-5V/O-10V

Voltage fluctuation ≤5%
Output signal PNP Simulation
Linear deviation ±5%
Ambient temperature 25~+70ºC
Shell material Plastic,Metal
Protection grade lp54

Features:

1 . Diversified exterior structures
2 . Good performance of anti-interference.
3 . Many output forms
4 . Dust proof,vibration proof,water proof and oil proof.
5 . With short-circuit protection and inverted connecting protection.
7 . Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch category Output form


Lm: Inductance type
Cm: Capacitance type
Sm: Hall type
Am: Safety Explosion-proof type
Xm: Mimic Linear type
Hm: Reed type
Ru: Ultrasonic type

N: Three-wire Dc NpN Output
P: Three-wire Dc PnP Output
L: Two-wire Dc Output
: Ac Two-wire Output
J: Relay Contact Output
Np: NpN+PnP Double Output
Outward appearance code Output state


□: Cylinder type
F□: Angular Colum Type And Plane Installation Type


A: (no) normally Open (no)
B: (nc) Normally Close (nc)
C: (no-nc) normally Open-Normally Close (no+nc)
Mu: Mimic Voltage
Mi: Mimic Current
Mui: Voltage+Current
Working voltage Subsidiart functions


30: 6-36VDC 310:5-24VDC 320:12-60VDC
330: 10-30VDC 340:10-55VDC 350:10-60VDC
360: 5-36VDC 20:90-250VAC 210:24-250VAC
220: 380VAC40:12-240VDC/24-240AC
50: Special voltage

T: with aviation connector
Y: water proof,oil proof
I: special requirement
H: high temp resistance
R: ring type
Detection distance Long-distance


01: 1mm 05: 5mm 10: 10mm ......

 L: Long-distance



Working priciple Inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Spacing detection
2 . Various location detection of machinery process center

3 . Inspection of the exiating of milk inside the paper package

4 . Arm location detection of robot

5 . Bottle lid detection

6 . Stopper detection of grinding machine

Output characteristic diagram

IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38

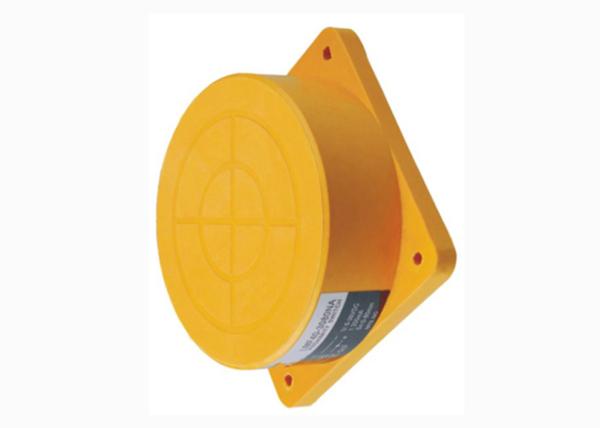

Product Picture

IP54 Mini Linear Induction Proximity Sensor PNP Simulation Analog Output XMF38

​

FAQ

Q: How to order our product ?

A:1). Please tell us the model and quantity and other request you need.

2). We make the PI for you.

3). After you confirm the PI, we arrange the order for you after receiving your payment.

4). After the goods finished, we send the goods out to you and tell you the tracking number.

5). We will track your goods until you receive the goods.

Q: What's your warranty ?

A: Two years

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
