OEM Three Phase Soft Magnetic Motor Starter 5.5KW - 630KW High Effectively
OEM Three Phase Soft Magnetic Motor Starter 5.5KW - 630KW High Effectively
OEM Three Phase Soft Magnetic Motor Starter 5.5KW - 630KW High Effectively
OEM Three Phase Soft Magnetic Motor Starter 5.5KW - 630KW High Effectively
Specifications
Brand Name :
Winston/OEM
Model Number :
WSTR3000 Series
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD165 to USD3000
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Voltage :
380VAC
Power :
5.5KW to 630KW
Phase :
3 phase
OEM :
Yes
RS485 :
Yes
Description

OEM Three Phase Soft Magnetic Motor Starter 5.5KW - 630KW High Effectively

General

WSTR-3000 series Soft Starter is a new type start-up equipment which integrates electric force and electron techniques, computer technique and modern control theory . It is the new generation product to replace the conventional Star-delta Starter , Self-coupling voltage-drop Starter and Magnetic control voltage-drop Starter.

Mail function

This Motor Soft Starter can reduce the starting current of Motor and the power-distribution capacity to Motor effectively , so it could save the cost .
Can reduce the starting stress of motor and other loading equipments , so that lengthen their service life .
The function of soft stopping can solve effectively the surging problem of inertia system when stopping . The conventional motor starting equipments can not realize it .
The perfect and reliable protection features , can give the effective protection to the operator's safety as well as the motor and matched equipments.
The application of intelligent and network technique make the WSTR-3000 type Soft Starter meet the high –speed development of Electrical force automated technique effectively .

Model and explain

OEM Three Phase Soft Magnetic Motor Starter 5.5KW - 630KW High Effectively

The External shape and installation dimensions of 5.5KW-55KW

Specifications The rated power of motor
(KW)		 External shape dimensions(mm) Installation dimensions(mm) NW
(kg)
W1 H1 D W2 H2 d
WSTR-3000-5.5-3 5.5 143 270 160 129 247 M6 ＜3.5
WSTR-3000-7.5-3 7.5 143 270 160 129 247 M6 ＜3.5
WSTR-3000-011-3 11 143 270 160 129 247 M6 ＜3.5
WSTR-3000-015-3 15 143 270 160 129 247 M6 ＜3.5
WSTR-3000-18.5-3 18.5 143 270 160 129 247 M6 ＜3.5
WSTR-3000-022-3 22 143 270 160 129 247 M6 ＜3.5
WSTR-3000-030-3 30 143 270 160 129 247 M6 ＜3.5
WSTR-3000-037-3 37 143 270 160 129 247 M6 ＜3.5
WSTR-3000-045-3 45 143 270 160 129 247 M6 ＜3.5
WSTR-3000-055-3 55 143 270 160 129 247 M6 ＜3.5


Note : The rated power of motor in the above form is the maximum rated value , generally , the values of matched motor should not be more than this value .

The External shape and installation dimensions of 75KW-560KW

Specifications The rated power of motor
(KW)		 External shape dimensions(mm) Installation dimensions(mm) NW
(kg)
W1 H1 D W2 H2 d
WSTR-3000-075-3 75 260 470 200 230 440 M8 ＜20
WSTR-3000-090-3 90 260 470 200 230 440 M8 ＜20
WSTR-3000-115-3 115 260 470 200 230 440 M8 ＜20
WSTR-3000-132-3 132 260 470 200 230 440 M8 ＜20
WSTR-3000-160-3 160 260 470 200 230 440 M8 ＜20
WST-3000-185-3 185 260 470 200 230 440 M8 ＜20
WST-3000-200-3 200 260 470 200 230 440 M8 ＜20
WST-3000-250-3 250 290 500 200 260 470 M8 ＜23
WST-3000-280-3 280 290 500 200 260 470 M8 ＜23
WSTR-3000-320-3 320 290 500 200 260 470 M8 ＜23
WSTR-3000-400-3 400 400 555 200 370 525 M8 ＜26
WSTR-3000-450-3 450 400 555 200 370 525 M8 ＜26
WSTR-3000-500-3 500 400 555 200 370 525 M8 ＜26
WSTR-3000-560-3 560 400 555 200 370 525 M8 ＜26

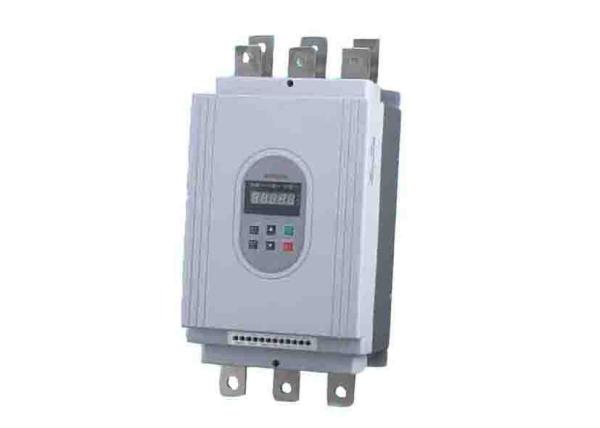

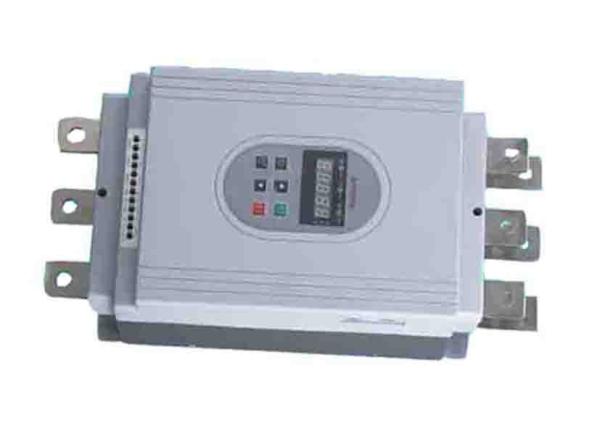

Product picture

OEM Three Phase Soft Magnetic Motor Starter 5.5KW - 630KW High Effectively

Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!
