0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM
0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM
0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM
0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM
0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM
0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM
0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM
0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM
Specifications
Brand Name :
Winston/OEM
Model Number :
D-60
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
159*98*38mm
Condition :
Original New
Output Frequency :
47-63HZ
Input Voltage :
220V
Output Voltage :
5V,24V
Output Power :
60W
Weight :
0.55Kgs
Description

0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM

Description:

1 . Competitived price and high reliability

2 . AC input power suitable for the world

3 . High efficiency and low operation temperature

4 . Soft-start current can reduce the AC input impact effect

5 . With short-circuit and overload protection

6 . Compact size, light weight

7 . Installed with EMI filter, minimum wave

Specification:

Model D-60A D-60B
Performance CH1 CH2 CH1 CH2
DC output voltage 5V 12V 5V 24V
Output Voltage Tolerance (Note 2) ±2% ± 6% ±2% ±5%
Rated output current 4A 3A 3A 1.8A
Output Current Range 0.3-6A 0.2-4A 0.3-6A 0.2 -2.2A
Ripple and noise (Note 3) 75mVp-p 150mVp-p 75mVp-p 150mVp-p
Into the line of stability (Note 4) ± 0.5% ± 1% ± 0.5% ± 0.5%
Load stability (Note 5) ± 0.5% ± 4% ± 0.5% ± 4%
DC output power 56W 58W
Efficiency 73% 76%
DC voltage adjustable range CH1: +10, -5% CH1: +10, -5%
Input Voltage Range 85 ~ 264VAC 47 ~ 63Hz
Input Current 2A /115V,1A/230V
Inrush Current Current 30A/115V 60A/230V cold start
Leakage <1A /240VAC
Overload 105% ~ 150% Type: PULSING HICCUP SHUTDOWN RESET: Automatic recovery
Over Voltage Protection CH1:5.75 ~ 6.73V
Temperature Protection …… ... ...
Temperature Coefficient ± 0.03%/ °C (0 ~ 50°C) ON+5V OUTPUT
Start, rise, hold time 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC
Earthquake resistance 10 ~ 500Hz, 2G 10min. / 1 cycle, duration 60 minutes, each axis
Pressure of Between input and output: 3KvAC,input and shell: 1.5KvAC, output and shell: 0.5KvAC
Isolation Resistance Input and output, input and shell, shell and output: 500VDC/100M Ohms
Temperature, humidity -10°C ~ + 60°C , 20% ~ 90% RH
Storage temperature, temperature -20°C~ + 85°C,10% ~ 95% RH
Dimensions 159*97* 38mm
Weight 0.55Kgs
Safety Standards To meet the UL1012 TUV (En60950), IEC950 certified
EMC Standards CISPR22 (EN55022) CLASS B, IEC801-2, 3,4 IEC555-2

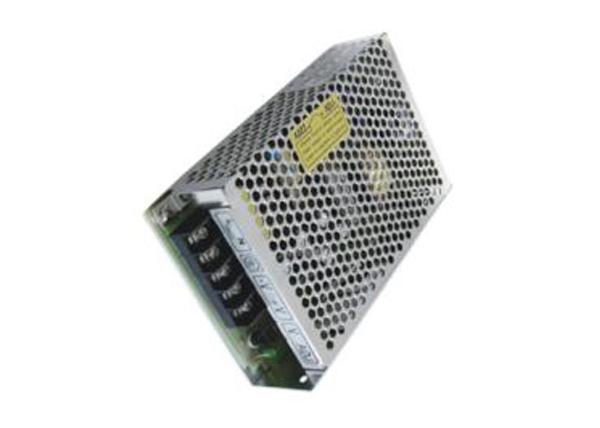

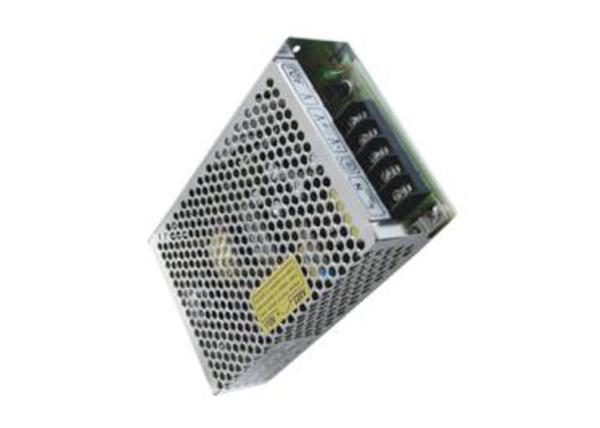

Product Picture

0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM

Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
