Specifications
Brand Name :
Winston/OEM
Model Number :
T-30
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
159*98*38mm
Condition :
Original New
Weight :
420G
Leakage current :
<0.5mA/240VAC
Output Voltage :
5V/12V/-5V
Output Type :
Triple
Output Current :
3A,1A,0.5A
Input Voltage :
220V
Description

Input AC Winston Switching Power Supply 0.5A , Triple Power Supply

Product Description:

  1. D-50 Daul output switching power supply
  2. Low price and high reliability
  3. 105℃ output capacitor
  4. AC input power suitable for the world
  5. Hight efficiency and low operation temperature
  6. Soft-start current can reduce the AC input impact effecticly
  7. Compact size,light weight
  8. 100% full-load burning test
  9. Installed with EMI filter,minimum wave

Technique parameter:

Model T-30A T-30B
Specification CH1 CH2 CH3 CH1 CH2 CH3
DC output voltage 5V 12V -5V 5V 24V -12V
Output voltage error(Note,2) ±2% +2,-6% +2,-10% ±2% +2,-10% ±6%
Rated output current 3A 1A 0.5A 3A 1A 0.5A
Output current rage 0.5-3A 0.1-1A 0.1-0.5A 0.5-3A 0.1-1A 0.1-0.5A
Wave and noise(Note ,3) 50mVp-p 100mVp-p 50mVp-p 50mVp-p 100mVp-p 100mVp-p
Inlet stability(Note ,4) ±0.5% ±1% ±1% ±0.5% ±1% ±1%
Load stablity (Note ,5) ±0.5% ±5% ±5% ±0.5% ±5% ±5%
DC output power 30W 33W
Efficiency 70% 72%
Adjustable range for DC voltage CH1,+10,-5% CH1,+10,-5%
AC input voltage range 85-132VAC/170-264VAC selected by switch 47-63Hz,240-370VDC
Input current 0.8A/115V 0.45A/230A
AC INnrush current Cold-start current35A
Leakage current <0.5mA/240VAC
Overload proctection 105%-150%Type,Foldback:current limiting reset,auto recovery
Over-voltage protection …………
High-temperature protection …………
Temperature coefficient ±0.03%/°C(0-50°C)
Setup rise hold up time 200ms,100ms,30ms
Vibration 10-500Hz,2G 10min,/1cycle,Period for60min,Each axes
Withstand voltage Input and output internal,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC
Isolation resistance Input and output internal,Input and enclosure,Output and enclosure,500VDC/100MΩ
Working temperature and humidity -10°C~+60°C(Refer to output derating curve),20%~90%RH
Store temperature and humidity -20°C~+85°C.10%~95%RH
Overall dimension 129×98×38mm
Weight 0.4Kgs
Safety standards Meet UL 1012R requirement (Not apply for the mark)
EMC standards Meet FCC Part15 J Conduction class A
Note
1. The testing condition for the paramenter above is ,230VAC input,rated load,25°C70% RH.Humidity.
2. Error.include the setting error,line stability and load stability.(Note:5).
3. Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.
4. Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
5. Load stability test:the load is from 0% to 100%.

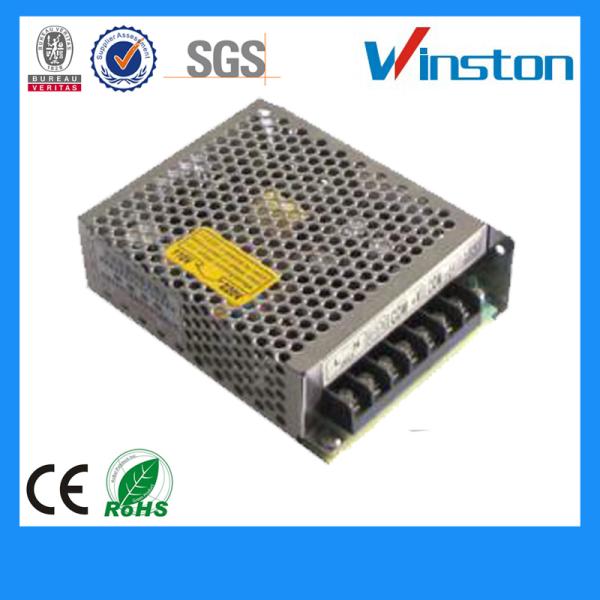

Product Picture

Input AC Winston Switching Power Supply 0.5A , Triple Power Supply

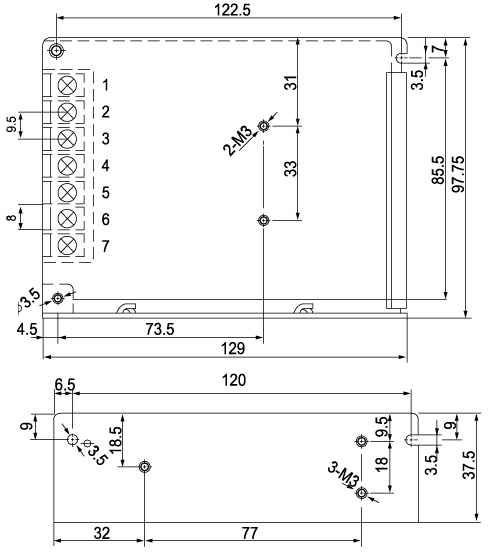

Dimensions

Input AC Winston Switching Power Supply 0.5A , Triple Power Supply
