5V-24V Quad Output Switching Power Supplies 7A Efficient High Reliability
5V-24V Quad Output Switching Power Supplies 7A Efficient High Reliability
5V-24V Quad Output Switching Power Supplies 7A Efficient High Reliability
5V-24V Quad Output Switching Power Supplies 7A Efficient High Reliability
5V-24V Quad Output Switching Power Supplies 7A Efficient High Reliability
5V-24V Quad Output Switching Power Supplies 7A Efficient High Reliability
5V-24V Quad Output Switching Power Supplies 7A Efficient High Reliability
5V-24V Quad Output Switching Power Supplies 7A Efficient High Reliability
Specifications
Brand Name :
Winston/OEM
Model Number :
Q-60
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
159*98*38mm
Condition :
Original New
Weight :
0.55Kg
Working temperature :
-10℃~+60℃
Output Voltage :
5V-24V
Output Type :
Quad
Output Current :
0.2A-7A
Description

5V-24V Quad Output Switching Power Supplies 7A Efficient High Reliability

Product Description:

  1. Q-60 Quad output switching power supply
  2. Low price and high reliability
  3. 105℃ output capacitor
  4. AC input power suitable for the world
  5. Hight efficiency and low operation temperature
  6. Soft-start current can reduce the AC input impact effecticly
  7. Compact size,light weight
  8. 100% full-load burning test
  9. Installed with EMI filter,minimum wave

Technique parameter:

INPUT

Voltage Range

85～264 VAC47-63Hz；120～370VDC

AC Current

2A/115 V0.8A/ 230 V

Efficiency

70%(SKQ-60B); 72%(SKQ-60C); 75%(SKQ-60D)

Inrush Current

Cold start 18A/115V36A/230V

Leakage Current

＜1 mA/240VAC

PROTECTION

Over Load

105%～150% /115VAC

Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed

Over Voltage

5V: 115%～135%

Protection type: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-10℃～+60℃；20%～90 %RH

Storage Temp., Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL60950

EMC Standard

Design refer to EN55022,EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204

Weight

0.56Kg

Packing

24pcs/14.4Kg/0.75CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ &47μ parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

OUTPUT

Model

Q-60B

Q-60C

Q-60D

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

DC Voltage

5V

12V

-5V

-12V

5V

15V

-5V

-15V

5V

12V

24V

-12V

Voltage Tolerance

±2%

±6%

±5%

±5%

±2%

8%

±5%

±5%

±2%

±6%

8%

±5%

-4%

-4%

Rated Current

5.5A

2A

0.5A

0.5A

5.5A

1.5A

0.5A

0.5A

4A

1A

1A

0.5A

Current Range

0.5－8A

0.1－3A

0－1A

0－1A

0.5－8A

0.1－3A

0－1A

0－1A

0.5－8A

0.1－3A

0.1－1.5A

0－1A

Rated Power

60W

60W

60W

60W

60W

60W

60W

60W

60W

62W

62W

62W

Ripple & Noise

100 mVp-p

120 mVp-p

100 mVp-p

120 mVp-p

100 mVp-p

120 mVp-p

100 mVp-p

120 mVp-p

100 mVp-p

120 mVp-p

150 mVp-p

120 mVp-p

DC Adjustment Range

CH1:-5%,+10%

Setup,Rise,Hold Time

1600ms,20ms,12ms/115VAC800ms,20ms, 60ms/230VAC at full load

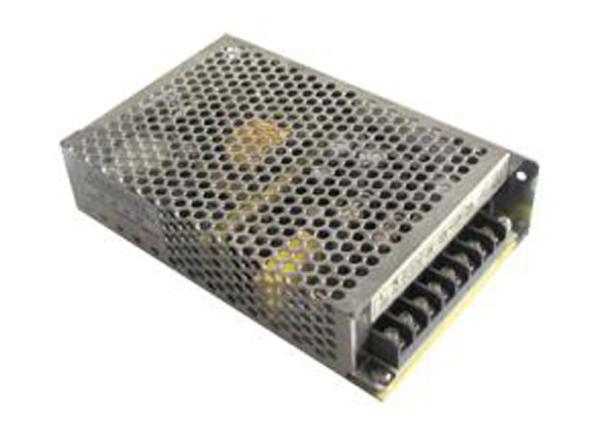

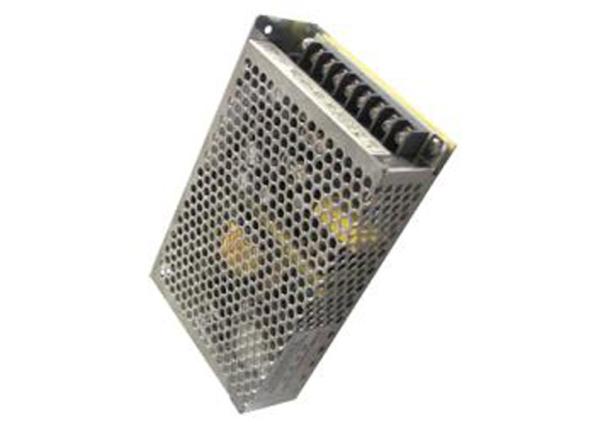

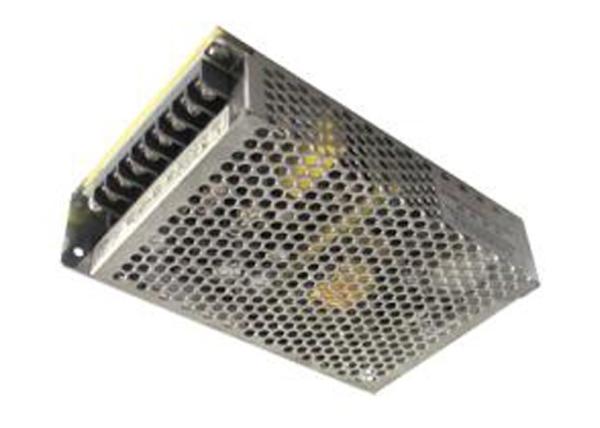

Product Picture
