30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC
30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC
30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC
30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC
30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC
30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC
30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC
30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC
Specifications
Brand Name :
Winston/OEM
Model Number :
LPV-30
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
222*30*20mm
Condition :
Original New
Output Voltage :
12V DC
Output Power :
30W
Input Voltage :
170~264VAC,235~373VDC
Weight :
0.25KG
Output Type :
Single
Description

30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC

Features:

1 . AC input range selectable by switch

2 . Protections: Short circuit / Overload / Over voltage

3 . Cooling by free air convection

4 . LED indicator for power on

5 . 100% full load burn-in test

6 . High efficiency, long life and high reliability

Specification:

Model LPV-30-12 LPV-30-24
output DC voltage 12V 24V
Voltage tolerance ±1% ±1%
Rated current 2.5A 1.3A
Current range 0~2.5A 0~1.3A
Rated power 30W 31.2W
Ripple&noise 100mvp-p 100mvp-p
input Voltage range 170~264VAC,235~373VDC
Frequency 47~63HZ
AC current 0.42A/230VAC
Efficiency 78% 80%
Inrush current Cold start current 30A/230VAC
Leakage current <0.5mA/240VAC
protection Over load Rated output power 105%~135%start over load protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over voltage 15.6~17.8V 30.6~33.2V
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over temperature when temperature of transistor inner node is over 150℃,start over temperature protection
Protection mode:cutoff output,auto-recovery after temperature become normal
environment Workingtemp,humidity -10℃~+60℃,20%~90%RH
Storage temp.humidity -20℃~+85℃,10%~95%RH non condensing
Withstand vibration 10~500HZ,2G 10min/1cycle,period for 60minutes,each axes
safety Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fits Safety standard Fit UL1012,IP67 protect level
tandard EMC standard Fit EN55022,CLASSA
Others Dimension 222*30*20mm (L*W*H)
Weight/packing 0.25kg/80pcs/21kg/0.033 m⊃3;/1.18CUFT
Note 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.

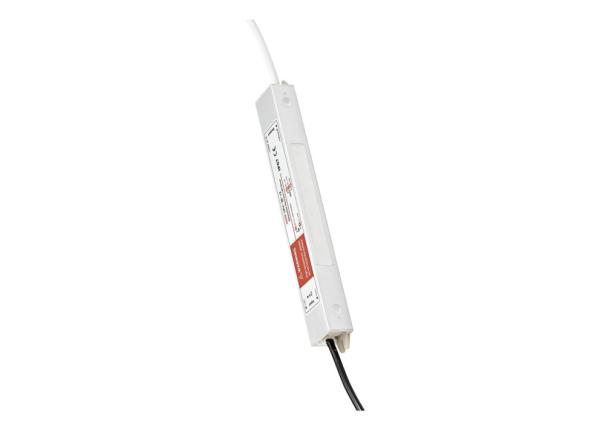

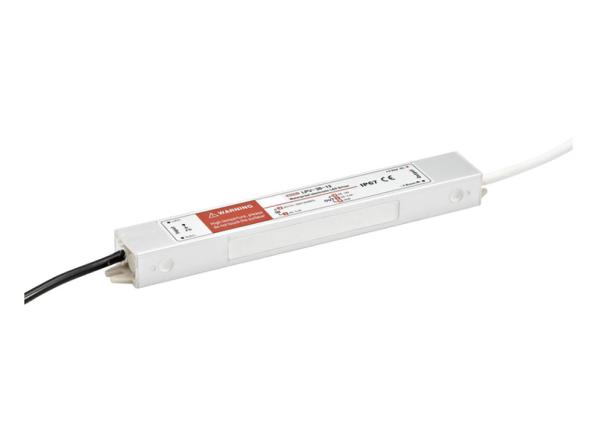

Product Picture

30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC

Overall dimensions

30W Switching Power Supplies High Efficiency , Small Power Supply 170V - 264VAC

Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
