Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body
Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body
Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body
Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body
Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body
Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body
Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body
Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body
Specifications
Brand Name :
Winston/OEM
Model Number :
G65
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
Condition :
Original new
Shell material :
Plastic
Working temperature :
-25~+55℃
OEM :
YES
ODM :
YES
Detected object :
Transparent or opaque body
DC/AC Consumption current :
DC<15mA, AC<10mA
Theory :
Optical Sensor
Description

Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body

Main features:
1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . High on-off frequency
5 . Dust proof,vibration proof,water proof and oil proof.
6 . Long service life

Application illustration or photoelectric switch

1 . Product accounting

2 . Detecting if beer is affixed with mark or not

3 . Check out the borken strip from carding machine

4 . Detection distance and dimensions of detected objects

Photoelectric switch Principle of photoeletric switch

The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.

Model composeition and definition of infrared ray photoelectric switch


G 18 3 A 10 N A □
—— —— —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Technical Parameters:

Diffuse type Detection distance
10-30VDC NPN NO
NC
NO+NC
PNP NO
90-250VAC NC
NO+NC
SCR Contro Hable silicon NO
NC
Relay output
Retroreflective type Detection distance
10-30VDC NPN NO
NC
NO+NC
PNP NO
90-250VAC NC
NO+NC
SCR Contro Hable silicon NO
NC
Relay output
Through beam Detection distance 1cm
10-30VDC NPN NO G65-3E01NA
NC G65-3E01NB
NO+NC G65-3E01NC
PNP NO G65-3E01PA
90-250VAC NC G65-3E01PB
NO+NC G65-3E01PC
SCR Contro Hable silicon NO
NC
Relay output
DC/SCR Control output

DC: 200mA,

AC: 300mA,Relay: 2A
DC/AC Consumption current DC<15mA,AC<10mA
DC/AC Response time Dc<2ms,AC<20ms
Directional angle 3 . -10 .
Detected object transparent or opaque body

Dimension

Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body

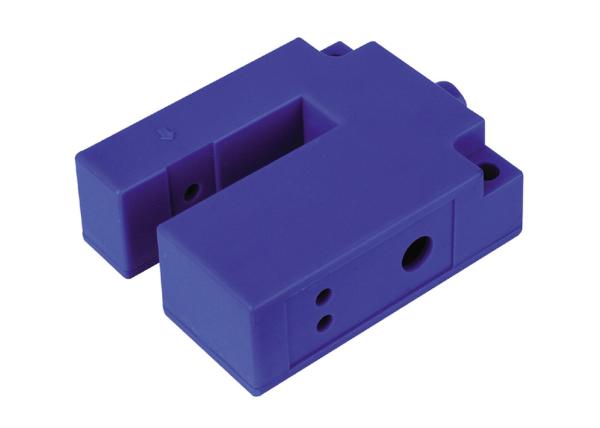

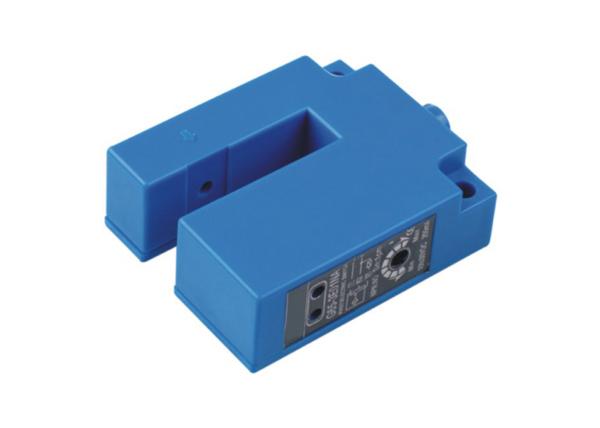

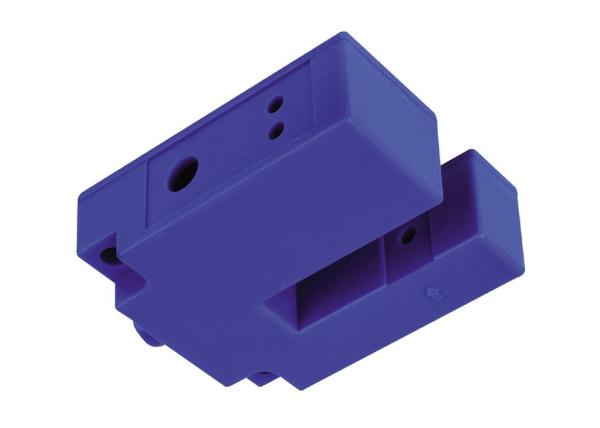

Product Picture

Plastic Projector Light Receiver Photoelectric Switch G65 Transparent / Opaque Body
​
