LY Series Electromagnetic Solid State Relays Low Power Miniature
LY Series Electromagnetic Solid State Relays Low Power Miniature
LY Series Electromagnetic Solid State Relays Low Power Miniature
LY Series Electromagnetic Solid State Relays Low Power Miniature
LY Series Electromagnetic Solid State Relays Low Power Miniature
LY Series Electromagnetic Solid State Relays Low Power Miniature
Specifications
Brand Name :
Winston/OEM
Model Number :
LY Series
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD1 to USD5
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
OEM :
Yes
The work instructions :
LED
Ambient temperature :
-25℃-55℃
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Description

LY Series Electromagnetic Solid State Relays Low Power Miniature

Feature

1 . Various relays,including LED
2 . 15A Transfer Contacts
3 . 1Z,2Z,3Z,4Z Contact operating form
4 . Various Terminals Available
5 . Transparent dust-proof cover, Various mounting types
6 . Various sockets available
7 . Including LED,test button

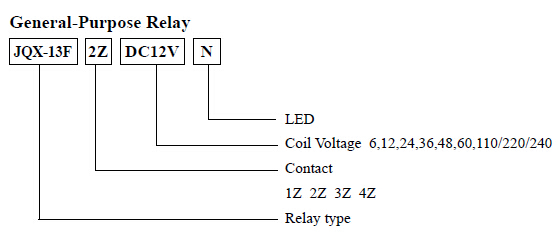

Model explain:
LY Series Electromagnetic Solid State Relays Low Power Miniature
Technical data
Model JQX-13F-1Z(LY1) JQX-13F-2Z(LY2) HH63P(LY3) HH64P(LY4)
Coil rated voltage DC 6 to 220V DC 6 to 220V DC 6 to 220V DC 6 to 220V
AC 6 to 380V AC 6 to 380V AC 6 to 380V AC 6 to 380V
Coil rated power DC≤ 0.9W DC≤ 0.9W-1.5W DC≤ 1.4W DC≤ 1.5W
AC≤ 1.2VA AC≤ 1.2 TO 2.5VA AC≤ 2.0VA AC≤ 2.5VA
Electrical Life 10 5 OPS 10 5 OPS 10 5 OPS 10 5 OPS
Mechanical life 10 7 OPS 10 7 OPS 10 7 OPS 10 7 OPS
Operating temperature -25C-55C -25C-55C -25C-55C -25C-55C
Weight ≤ 32g ≤ 34g ≤ 49g ≤ 69g
Mounting methods Printed Circuit board
Flange, outlet		 Printed Circuit board
Flange, outlet		 Printed Circuit board
Flange, outlet		 Printed Circuit board
Flange, outle

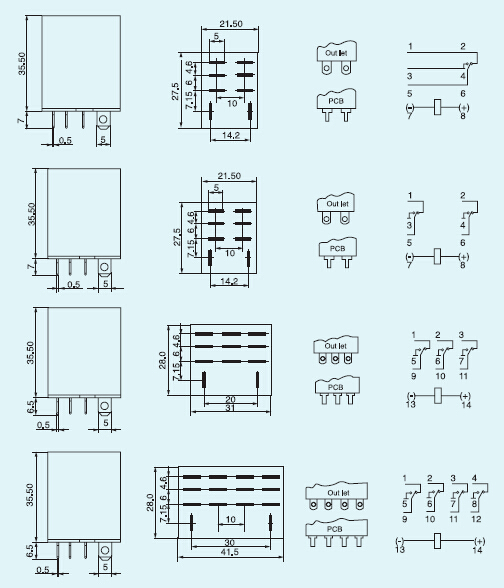

Dimension

LY Series Electromagnetic Solid State Relays Low Power Miniature

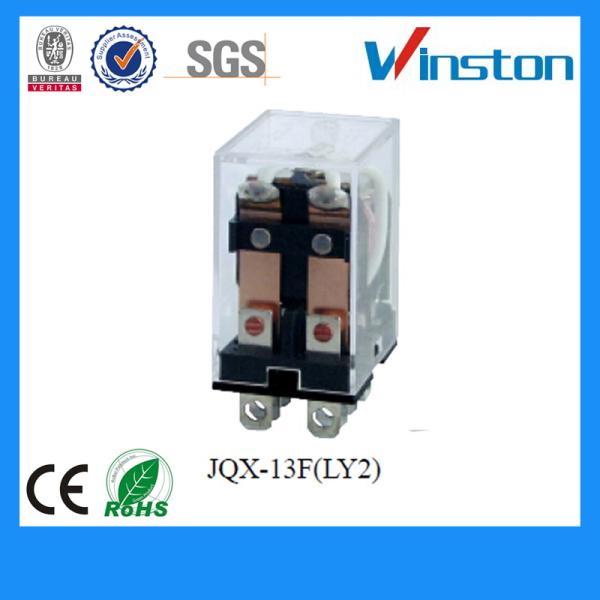

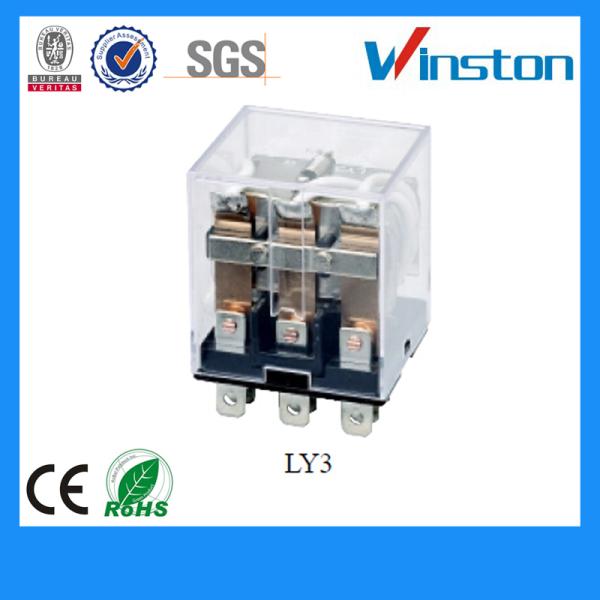

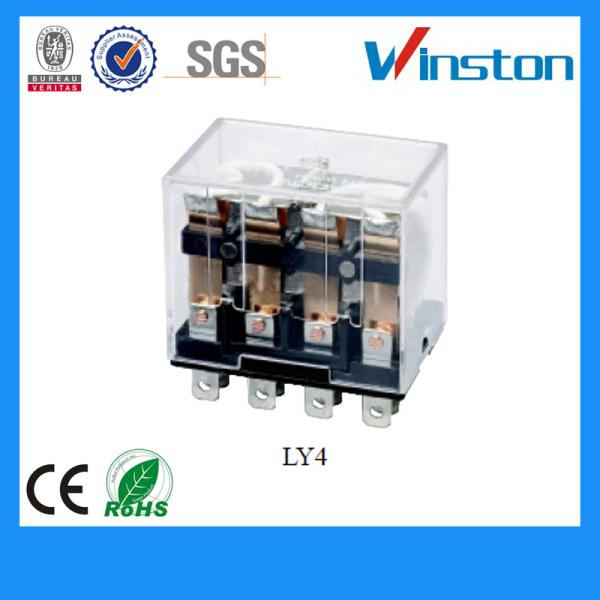

Product picture
LY Series Electromagnetic Solid State Relays Low Power Miniature
LY Series Electromagnetic Solid State Relays Low Power Miniature
LY Series Electromagnetic Solid State Relays Low Power Miniature

Why choose us:

1. Quality guaranteed:

Special supervision team to control quality

All the products will be inspected carefully before delivery

2. quality and finish time guaranteed, Deliver the goods accredit to negotiation or within 7 days after we get your payment.

3. Competitive price with high quality.

4. After service guarantee. Assure you the best services at all times.

5. OEM & ODM available; Large quantities of the same specifications, quality standards, the time control is our strength.

6. Favorable and professional shipping,Worldwide shipping available
