Switched Mode Power Supply S - 500W Load Stability 50A / 230VAC By Switching
Switched Mode Power Supply S - 500W Load Stability 50A / 230VAC By Switching
Switched Mode Power Supply S - 500W Load Stability 50A / 230VAC By Switching
Switched Mode Power Supply S - 500W Load Stability 50A / 230VAC By Switching
Switched Mode Power Supply S - 500W Load Stability 50A / 230VAC By Switching
Switched Mode Power Supply S - 500W Load Stability 50A / 230VAC By Switching
Specifications
Brand Name :
Winston/OEM
Model Number :
S-500W
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD38.5
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
238*124*65mm
Condition :
Original New
Weight :
1.35KG
Working temperature :
-10℃~+50℃
Input voltage range :
90-132VAC/180-264VAC
Description

Single Output Power Supply S - 500W Load Stability 50A / 230VAC By Switching


Summary

  • Single output: power 500w
  • Input voltage: 90-132VAC/180-264VAC

Technique parameter:

ModelS-500-12S-500-24S-500-36S-500-48
DC output voltage current12V 0-40A24V 0-20A36V 0-14A48V 0-10A
Wave and noise100mVp-p150mVp-p150mVp-p150mVp-p
Inlet stability±0.5%±0.5%±0.5%±0.5%
Load stablity ±0.5%±0.5%±0.5%±0.5%
Efficiency83%85%86%87%
Adjustable range for DC voltage±10%±10%±10%±10%
input voltage range90-132VAC/180-264VAC by switch 254-370vdc 47-63Hz
Inpact currentCold start current 50A/230VAC 25A/115VAC
Overload proctection105%-135% cut off the output, automatic recovery
Over-voltage protection115%-150% shut down O/P voltage, re-power on to recover
Setup rise hold up time200ms, 50ms, 36ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature -10℃~+50℃
Packing44*26*27cm/12PCS/16.2kg



The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.

The use of power supply

1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.

2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

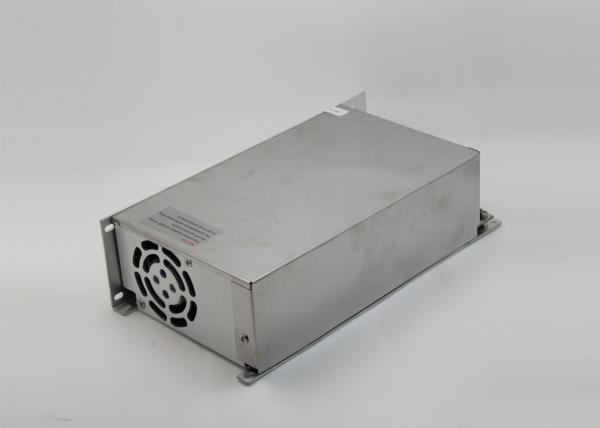

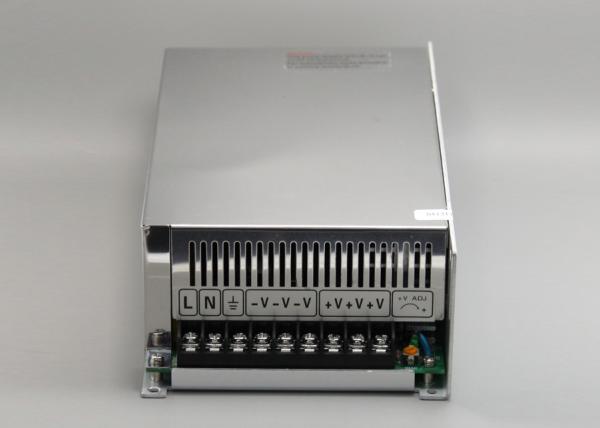

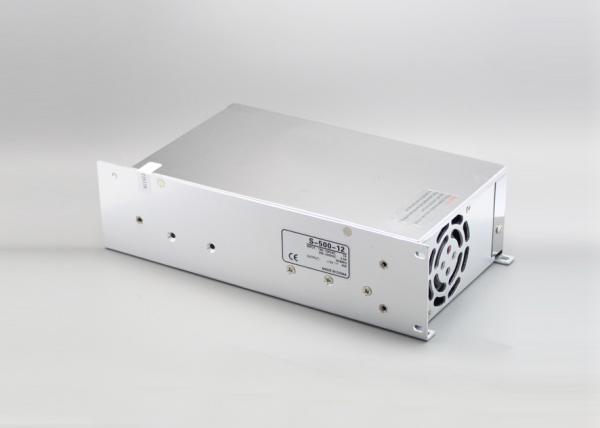

Product Picture

Switched Mode Power Supply S - 500W Load Stability 50A / 230VAC By Switching

Dimensions

Switched Mode Power Supply S - 500W Load Stability 50A / 230VAC By Switching
