S-250-24 Variable Switch Mode Power Supply Single Output Power Supply
S-250-24 Variable Switch Mode Power Supply Single Output Power Supply
S-250-24 Variable Switch Mode Power Supply Single Output Power Supply
S-250-24 Variable Switch Mode Power Supply Single Output Power Supply
S-250-24 Variable Switch Mode Power Supply Single Output Power Supply
S-250-24 Variable Switch Mode Power Supply Single Output Power Supply
Specifications
Brand Name :
Winston/OEM
Model Number :
S-250
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD17.6
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
215*115*50mm
Condition :
Original New
Weight :
0.95KG
Single Output :
power 250w
Working temperature :
-10℃~+50℃
Input voltage range :
90-132VAC/180-264VAC 47-63Hz
Description

Single Output S-250-24 Power Supply 81.5% Efficiency 10A By Switch


Summary

  • Single output: power 15w
  • Input voltage: 90-132VAC/180-264VAC by switch

Technique parameter:

Model S-250-5 S-250-12 S-250-15 S-250-24 S-250-36 S-250-48
DC output voltage current 5V 0-45A 12V 0-20A 15V 0-16A 24V 0-10A 36V 0-6.7A 48V 0-5A
Wave and noise 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p
Inlet stability ±2% ±1% ±1% ±1% ±1% ±1%
Load stablity ±2% ±1% ±1% ±1% ±1% ±1%
Efficiency 74% 79% 79% 81.5% 84% 84%
Adjustable range for DC voltage ±10% ±10% ±10% ±10% ±10% ±10%
input voltage range 90-132VAC/180-264VAC by switch 254-370VDC 47-63Hz
Inpact current Cold start current 50A/230VAC 25A/115VAC
Overload proctection 105%-135% cut off the output, automatic recovery
Over-voltage protection 115%-150% shut down O/P voltage, re-power on to recover
Setup rise hold up time 200ms, 150ms, 16ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature -10℃~+50℃
Overall dimension 215*115*50mm
Weight 0.95kg
Packing 45.5*31.5*26cm/20PCS/19kg

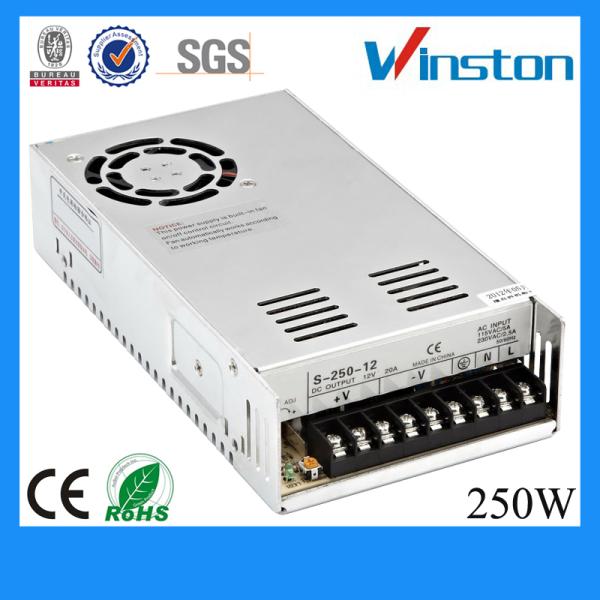

Product Picture

S-250-24 Variable Switch Mode Power Supply Single Output Power Supply

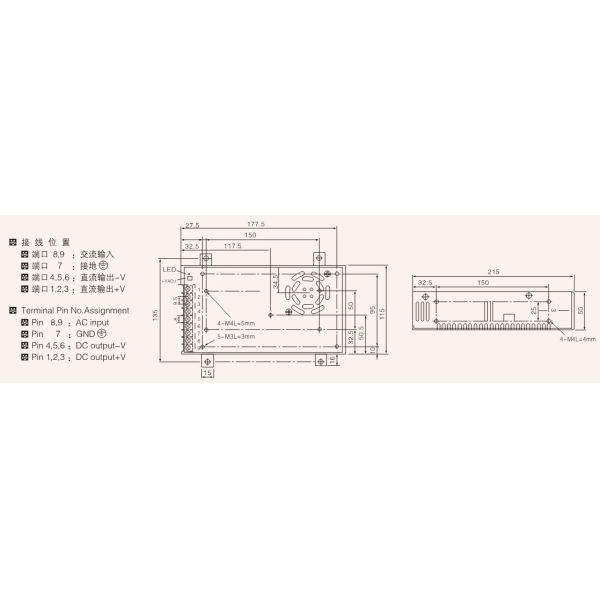

Dimensions

S-250-24 Variable Switch Mode Power Supply Single Output Power Supply


The use of power supply

1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.

2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.


About us

S-250-24 Variable Switch Mode Power Supply Single Output Power Supply

S-250-24 Variable Switch Mode Power Supply Single Output Power SupplyS-250-24 Variable Switch Mode Power Supply Single Output Power Supply

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms

FOB ,CIF ,CFR,EXW,DDP

Payment terms

T/T,L/C,Western union,Paypal,Escrow,MoneyGram

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery
