S-25W Single Output Power Supply Cold Start Current 15A 0.3KG
S-25W Single Output Power Supply Cold Start Current 15A 0.3KG
S-25W Single Output Power Supply Cold Start Current 15A 0.3KG
S-25W Single Output Power Supply Cold Start Current 15A 0.3KG
S-25W Single Output Power Supply Cold Start Current 15A 0.3KG
S-25W Single Output Power Supply Cold Start Current 15A 0.3KG
S-25W Single Output Power Supply Cold Start Current 15A 0.3KG
S-25W Single Output Power Supply Cold Start Current 15A 0.3KG
Specifications
Brand Name :
Winston/OEM
Model Number :
S-25W
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD5.06
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
98*97*35mm
Condition :
Original New
Weight :
0.3KG
Single Output :
power 25w
Working temperature :
-10℃~+50℃
Input voltage range :
90-132VAC/180-264VAC 47-63Hz
Description

S-25W Single Output Power Supply Cold Start Current 15A 0.3KG


Summary

  • Single output: power 25w
  • Input voltage: 90-132VAC/180-264VAC by switch

Technique parameter:

Model S-25-5 S-25-12 S-25-15 S-25-24
DC output voltage current 5V 0-5A 12V 0-2.1A 15V 0-1.67A 24V 0-1.1A
Wave and noise 50mVp-p 50mVp-p 75mVp-p 100mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±1% ±0.5% ±0.5% ±0.5%
Efficiency 65% 68% 70% 72%
Adjustable range for DC voltage ±10% ±10% ±10% ±10%
input voltage range 90-132VAC/180-264VDC by switch 254-370VDC 47-63Hz
Inpact current Cold start current 30A/230VAC 15A/115VAC
Overload proctection 105%-150% cut off the output, automatic recovery
Over-voltage protection
Setup rise hold up time 200ms, 100ms, 30ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature -10℃~+50℃
Overall dimension 98*97*35mm
Weight 0.3kg
Packing 43*32.5*24cm/60PCS/18kg

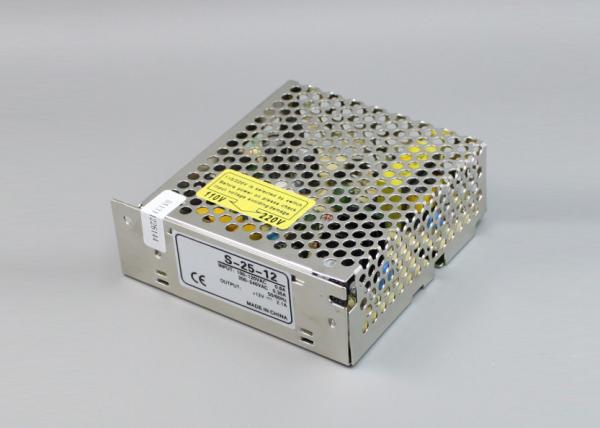

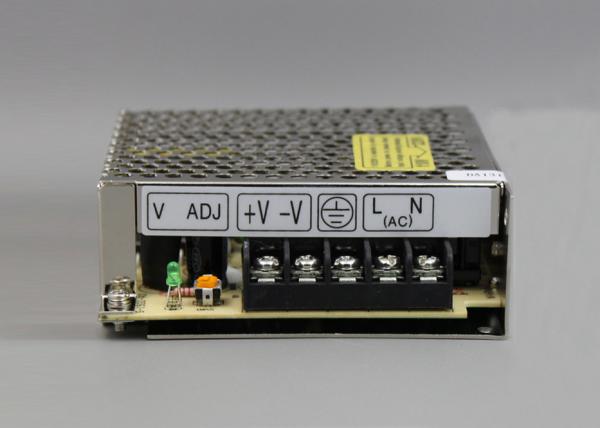

Product Picture

S-25W Single Output Power Supply Cold Start Current 15A 0.3KG

Dimensions

S-25W Single Output Power Supply Cold Start Current 15A 0.3KG


The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.


About us

S-25W Single Output Power Supply Cold Start Current 15A 0.3KG

S-25W Single Output Power Supply Cold Start Current 15A 0.3KGS-25W Single Output Power Supply Cold Start Current 15A 0.3KG

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms

FOB ,CIF ,CFR,EXW,DDP

Payment terms

T/T,L/C,Western union,Paypal,Escrow,MoneyGram

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery
