S-50-24 Programmable Power Supply 150 Percent Cut Off The Output
S-50-24 Programmable Power Supply 150 Percent Cut Off The Output
S-50-24 Programmable Power Supply 150 Percent Cut Off The Output
S-50-24 Programmable Power Supply 150 Percent Cut Off The Output
S-50-24 Programmable Power Supply 150 Percent Cut Off The Output
S-50-24 Programmable Power Supply 150 Percent Cut Off The Output
Specifications
Brand Name :
Winston/OEM
Model Number :
S-50-24
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD7.04
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
159*98*38mm
Condition :
Original New
Weight :
0.5KG
Single Output :
power 50w
Working temperature :
-10℃~+50℃
Input voltage range :
90-132VAC/180-264VAC 47-63Hz
Description

Single Output S-50-24 Power Supply 150% Cut Off The Output Automatic Recovery


Summary

  • Single output: power 50w
  • Input voltage: 90-132VAC/180-264VAC by switch

Technique parameter:

Model S-50-5 S-50-12 S-50-15 S-50-24
DC output voltage current 5V 0-10A 12V 0-4.2A 15V 0-3.4A 24V 0-2.1A
Wave and noise 75mVp-p 100mVp-p 100mVp-p 100mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±1% ±0.5% ±0.5% ±0.5%
Efficiency 71% 78% 78% 82%
Adjustable range for DC voltage ±10% ±10% ±10% ±10%
input voltage range 90-132VAC/180-264VDC by switch 254-370VDC 47-63Hz
Inpact current Cold start current 36A/230VAC 18A/115VAC
Overload proctection 105%-150% cut off the output, automatic recovery
Over-voltage protection
Setup rise hold up time 200ms, 100ms, 20ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature -10℃~+50℃
Overall dimension 159*98*38mm
Weight 0.5kg
Packing 34*32*24cm/30PCS/15kg

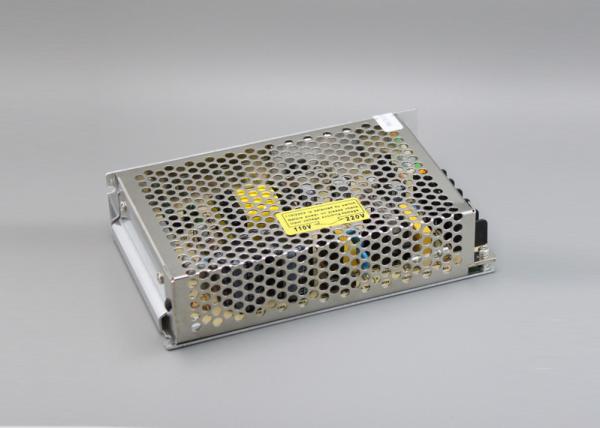

Product Picture

S-50-24 Programmable Power Supply 150 Percent Cut Off The Output

Dimensions

S-50-24 Programmable Power Supply 150 Percent Cut Off The Output


The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.
