DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling
DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling
DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling
DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling
DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling
DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling
Specifications
Brand Name :
Winston/OEM
Model Number :
DRP - 240W
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD48.4
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
125.5*125.5*100mm
Condition :
Original New
Weight :
1.2KG
Single Output :
power 240w
Working temperature :
-10℃~+50℃
Input voltage range :
85-264VAC 120-370VDC 47-63Hz
Description

DRP - 240W Single Output Din Rail Power Supply 1.2KG Low - loss Nature Air Cooling


Summary

  • Single output: power 240w
  • Input voltage: 85-264VAC 120-370VDC

Features

● Comply with EN61000-3-2 passive PFC function
● High efficiency as 89%, low-loss
● Protection type :cutting-out/over-load/ over-voltage/ over-temperature
● Nature air cooling
● Built-in constant current limit circuit
● Installation rail:TS-35/7.5 or TS-35/15
● Comply with UL508 (Industrial control equipment)
● Comply with EN61000-6-2(EN50082-2)
● 100% full-load age test
● Three years quality warranty

Technique parameter:

Model DRP-240-24 DRP-240-48
DC output voltage current 24V 0-10A 48V 0-5A
Wave and noise 80mVp-p 150mVp-p
Inlet stability ±0.5% ±0.5%
Load stablity ±1% ±0.5%
Efficiency 84% 85%
Adjustable range for DC voltage ±10% ±10%
input voltage range 85-264LAC 120-370VDC 47-63Hz
Inpact current Cold start current 45A/230VAC 27A/115VAC
Overload proctection 105%-150% cut off the output, automatic recovery
Over-voltage protection 30-36V for 24V model, 54-60V for 48V model
Setup rise hold up time 800ms, 40ms, 20ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature -10℃~+50℃
Overall dimension 125.125.100mm
Weight 1.5kg
Packing 41.5*27.5*25cm/12PCS/14.5kg

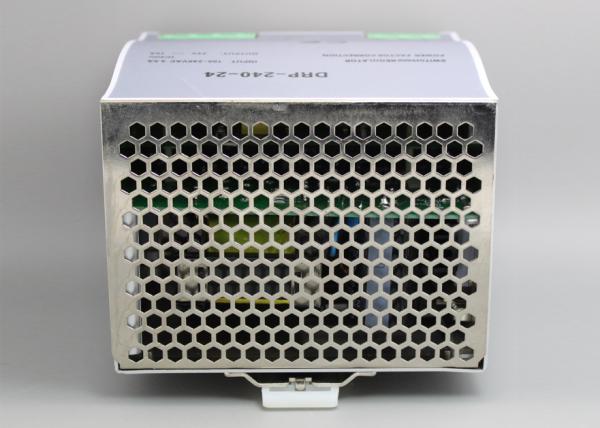

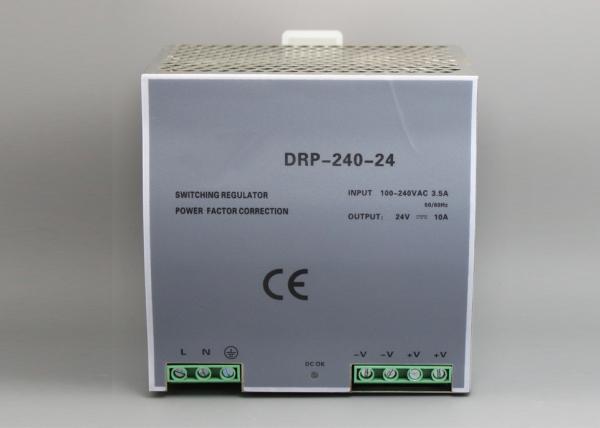

Product Picture

DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling

Dimensions

DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling

The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.

The use of power supply

1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.

2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
