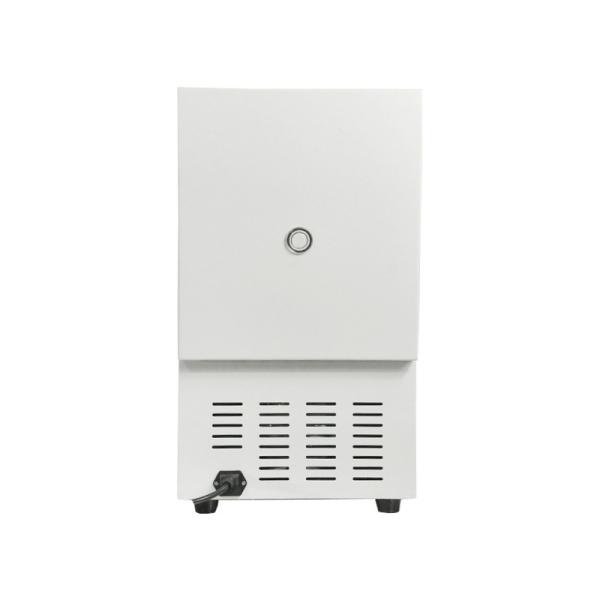

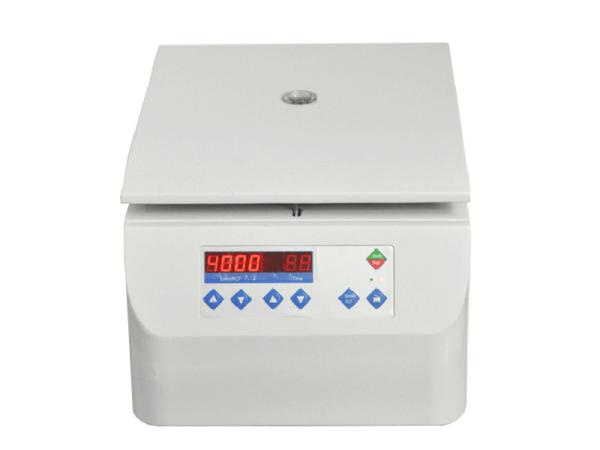

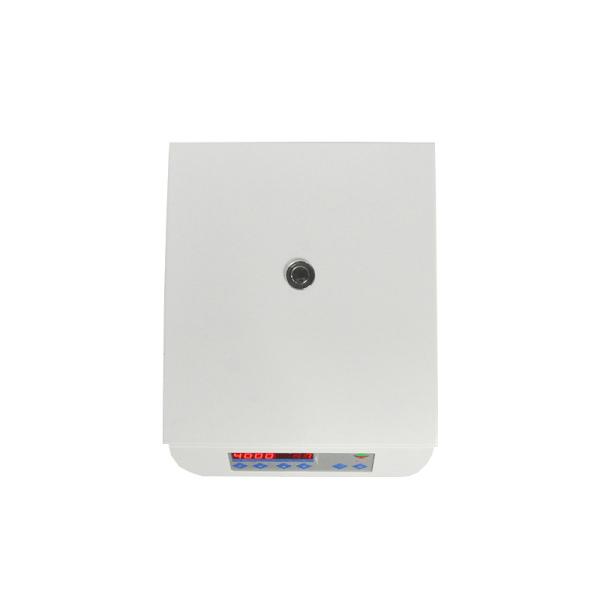

TD6M Low Speed Centrifuge laboratory centrifuge up to 6000rpm with 50ml tubes
- With brushless DC motor, maintenance-free.

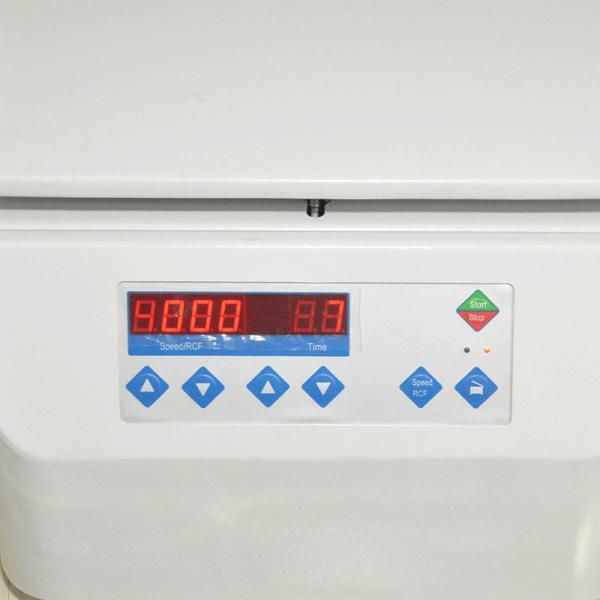

- Controlled by Microprocessor with touching panel and digital display, easy to operate.
- Steel body, stainless steel centrifugal chamber, resist corrosion, easy to clean, safe and stable.
- Arbitrarily setting the parameter of time and speed etc, easy to use.
- 0-9 Accel/Decel modes, 40 self-defining programs can be stored and recall.
- Short spin function.
- It’s mainly used in biochemistry Laboratory and Clinical Laboratory in Hospital and so on.
Specifications
Small Low Speed Centrifuge, with rotor |
Model |
TD6M |
Max.Speed (r/min) |
6000 |
Max. RCF (x g) |
5120 |
Max. Capacity (ml) |
400 |
Control |
Microprocessor |
Drive |
DC Brushless Motor |
Speed Range (r/min) |
100-6000 |
Speed Control Accuracy (r/min) |
±30 |
Timer Range(min) |
1-99 |
Noise (dB) |
≤ 60 |
Power Supply V (Hz) |
220/110 (50/60), 8A, single phase |
Dim. (W x D x H) mm |
355 x 490 x 280 |
Weight (kg) |
22 |
Rotors
Rotor Type |
Rotor No. |
Max. Capacity
(place x ml)
|
Max. Speed
(r/min)
|
Max. RCF
(x g)
|
Tube Size
(Range, ml)
|
Adapters for smaller tubes |
Fixed Angle Rotor |
1 |
12 x 10/15 |
6000 |
5120 |
1.5-15 |
Available |
Fixed Angle Rotor |
6 x 50 |
6000 |
5120 |
1.5-30 |
Available |
Fixed Angle Rotor |
4 x 50 |
6000 |
5120 |
1.5-50 |
Available |
