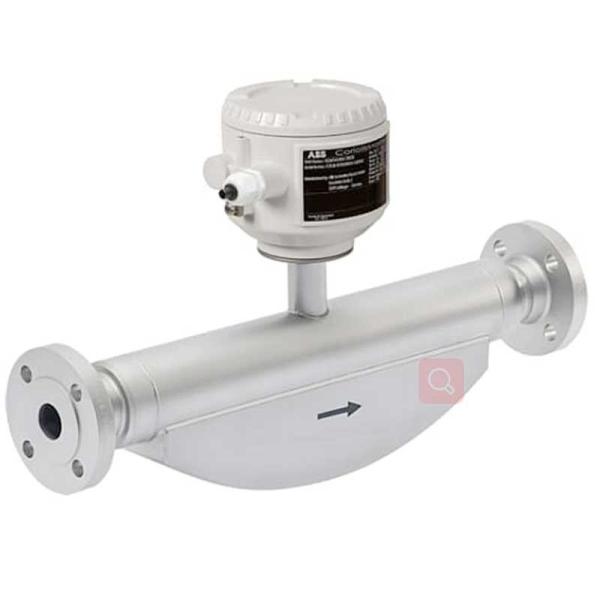

FCB430 FCB450 ABB Flow Meter Coriolis Mass Flowmeter CoriolisMaster
FCB430 FCB450 ABB Flow Meter Coriolis Mass Flowmeter CoriolisMaster
FCB430 FCB450 ABB Flow Meter Coriolis Mass Flowmeter CoriolisMaster
FCB430 FCB450 ABB Flow Meter Coriolis Mass Flowmeter CoriolisMaster
FCB430 FCB450 ABB Flow Meter Coriolis Mass Flowmeter CoriolisMaster
FCB430 FCB450 ABB Flow Meter Coriolis Mass Flowmeter CoriolisMaster
FCB430 FCB450 ABB Flow Meter Coriolis Mass Flowmeter CoriolisMaster
FCB430 FCB450 ABB Flow Meter Coriolis Mass Flowmeter CoriolisMaster
Specifications
Brand Name :
ABB
Model Number :
FCB430 and FCB450
MOQ :
1
Price :
100
Payment Terms :
L/C
Supply Ability :
11
Delivery Time :
20 days
Packaging Details :
11
Accuracy :
High
Cost :
Reasonable
Durability :
High
Environmental Impact :
Low
Installation :
Easy
Linearity :
High
Maintenance :
Low
Pressure Loss :
Low
Product Name :
ABB Flow Measurement Products
Rangeability :
Wide
Repeatability :
High
Response Time :
Fast
Signal Noise :
Low
Signal Output :
High
Stability :
High
Communication Protocol :
HART, PROFIBUS, FOUNDATION Fieldbus
Fluid :
Gas, Liquid
Installation Type :
In-line, Insertion
Material :
Stainless Steel, Alloy Steel, Titanium
Measuring Principle :
Differential Pressure
Output Signal :
4-20mA
Pressure Range :
0-100Bar
Process Connection :
Flange, Thread, Sanitary
Product Type :
Flow Measurement
Range :
Wide
Temperature Range :
0-150℃
Warranty :
1 Years
Description

Coriolis mass flowmeter CoriolisMaster FCB430 and FCB450

CoriolisMaster FCB400 series of compact Coriolis mass flowmeters feature low pressure drop, high capacity, intuitive ABB common display, five modular I/O`s and various communication protocols, now with OIML R117 and MID approved.

With no up or downstream piping requirements the compact Coriolis flowmeters can be installed in the tightest spaces, enabling applications not possible before.

Sensor
Model FCB400 standard design FCH400 hygienic design
Chassis 　 Integral mount design, remote mount design
Measuring accuracy for liquids FCB430 FCB450 FCH430 FCH450
Mass flow* 0.4%.0.25%and 0.2% 0.1% and 0.15% 0.4%,0.25% and 0.2% 0.1% and 0.15%
Volume flow* 0.4%.0.25%and0.2% 0.15% and0.11% 0.4%.0.25%and 0.2% 0.15%and 0.11%
Density 0.01kg/l 0.002kg/l
0.001kg/l (optional)
0.0004kg/l (optional)		 0.01kg/l ·0.002kg/l
0.001 kg/l (optional)
0.0004kg/l (optional)
Temperature 1K 0,5K 1K 0,5K
Measuring accuracy for gases* 1% 0.5% 1% 0.5%
Permissible measuring medium
temperatura Tmedlum		 -50 to 160°C
(-58 to 320F)		 -50 to 205°C
(-58 to 400F)		 -50 to 160°C
(-58 to 320F)		 -50 to 205C
(-58 to 400F)
Process connection
Flange DIN 2501/EN 1092-1 DN 10 to 200；PN 40 to PN 160 一
Flange ASME B16.5 DN 2/1 to 8 in； CL150 to CL1500 一
jis flange DN 10 to 200: JIS 10K to 20K 一
Pipe fitting DIN 11851 DN 10 to 100 (3/8 to 4 in) DN 20 to 100 (% to 4in)
Pipe fitting SMS 1145 DN 25 to 80 (1 to 3in) 一
Tri-clamp DIN 32676(ISO2852)
Tri-clamp BPE		 DN 15 to 100 (1/4 to 4in)
DN3/8 to 4in		 DN 20 to 100 (%4 to 4in)
DNW:to 4in
Female thread DIN ISO 228 andASME B 120.1 DN 15；PN100 一
Other connections On request Onrequest
Wetted material Stainless steel1.4435 or 1.4404(AISI 316L), nickel alloy C4/C22 Stainless steel, polished 1.4404 (AISI 316L) or 1.4435(AISI 316L)
IP rating Integral mount design: IP 65 / IP 67, NEMA 4X
Remote mount design: IP 65 /IP 67/IP 68 (sensor only, immersion depth:5m), NEMA 4X
Approvals
Explosion protection ATEX/IECEx/UKEX/cFMus /EAC-Ex ATEX /IECEx/UKEX/cFMus/EAC-Ex
Hygiene approvals 一 FDA compliant
Legal metrology OIML R117, MID, devices for legal metrology in accordance with API /AGA
Further approvals At www.abb.com/flow or upon request.
Indication of accuracy in % of the measured value


The FCB400 series delivers:

  • Up to five modular I/Os
    – Multivariable meter design
    – Optional plug-in cards
    – Automatic firmware update
    – Various communication protocols available:
    EthernetIP, Modbus TCP, Web Browser and Profinet
  • SmartSensor
    – All digital solution
    – Installation flexibility
    – Meter intelligence located in the sensor
  • SensorApplicationMemory
    – Maximum data security
    – Plug and play electronics replacement
  • ABB common look and feel
    – Easy Set-up
    – Operation through the glass via capacitive keys
  • VeriMass on-board verification and diagnostics
    – Online preventive maintenance
    – Extended maintenance cycles
    – Reduced maintenance effort
  • Designed for 70 °C (158 °F) ambient temperature and high vibrations
  • Enhanced Coriolis control (ECC) option for advanced measurement for multiphase conditions and other challenging fluids
  • Lower pressure drop
  • Self-draining
  • Global approvals for explosion protection
  • OIML R117 and MID approved

The FCB450 adds:

  • DensiMass software for direct concentration measurement
  • FillMass software for filling application control
  • OIML R117; MID approved

Data

General specifications:

  • Nominal sizes / measuring ranges
    – DN 15 (1/2 in.) / 0 to 8,000 kg/h (17,637 lb/h)
    – DN 25 (1 in.) / 0 to 35,000 kg/h (77,162 lb/h)
    – DN 50 (2 in.) / 0 to 90,000 kg/h (198,416 lb/h)
    – DN 80 (3 in.) / 0 to 250,000 kg/h (551,156 lb/h)
    – DN 100 (4 in.) / 0 to 520,000 kg/h (1,146,404 lb/h)
    – DN 150 (6 in.) / 0 to 860,000 kg/h (1,895,975 lb/h)
  • Ex approvals
    – ATEX zone 0/1/2, cFMus Div 1/2 and zone 0/1/2
    – NEPSI Zone 0/1/2
    – Various other approvals
    – OIML R117; MID approved
  • Wetted materials
    – 1.4404 / 1.4435 (316L) or Hasteloy C
  • Accuracy for liquids
    FCB430
    – Mass and volume: 0.4 % o. r. / 0.25 % o. r. / 0.2 % o. r.
    – Density: 10 g/l
    FCB450
    – Mass: 0.15 % o. r. / 0.1 % o. r., volume: 0.15 % o. r.
    – Density: 0.002 kg/m³ or 0.001kg/m³ needs to extend to 0.0004 kg/m³
  • Measuring medium temperature
    FCB430
    – -50 to 160 °C (-58 to 320 °F)
    FCB450
    – -50 to 205 °C (-58 to 400 °F)
  • Outputs
    – 5 modular I/Os
    – HART 7.1
    – PROFIBUS DP
    – Modbus
    – Ethernet
    • Ethernet IP
    • Modbus TCP
    • Webserver
    • More protocols in preparation
  • Power supply
    – 11 to 30 V DC, 110/230 V AC
    – Power over Ethernet
