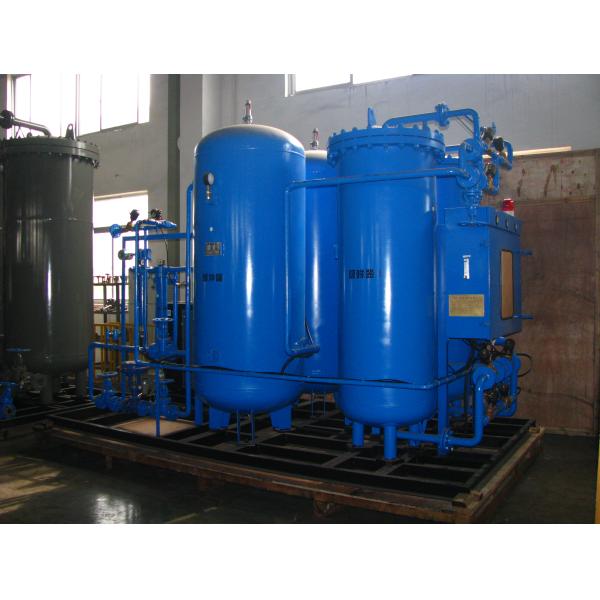

Medicine Filling Nitrogen Gas Generation Nitrogen Production Unit 280 Nm3/h

Medical intermediate product/Medicine filling 280 Nm3/h nitrogen gas generator system

PSA nitrogen generator for Medical intermediate product:

1).Purity:95%-99.999%
2).Capacity:5~3000Mm3/h

3).Outlet Pressure:0.1-0.7Mpa
4).Low compressed air consumption
5).Durable components

Working Principle:

Under certain temperature,the residual oxygen in the low-purity nitrogen and the carbon provided by carbon catalytic generate CO2 after nitridation of C+O2=CO2.After removing the CO2 by PSA technique and further denitrification ,high-purity nitrogen is produced.
Technical Features
There is no H2 in it and it is suitable for use in the occasions which have strict requirement for H2 and

O2.
High-efficiency and energy-saving technique makes the energy consumption of the system reduce greatly.
The deaerator adopts two-tower structure and adding and replacing of carbon catalytic agent can

be done under non-stopping state.
Automatic venting device with national patented technology ensure s the quality of the produced nitrogen.
The key parts in the system adopt the famous brand,which is the effective guarantee of the equipment quality.
It ha s functions of diagnosis,alarming and automatic troubleshooting for several failures.

Technical Indexes:

Nitrogen Output:10~5000Nm³ / h
Nitrogen Purity : ≥ 99.9995%
Oxygen Content: ≤ 5 ppm
Carbon Dioxide Content: ≤ 1 ppm
Dew Point: ≤ -70 ºC

Specifications:

Features

* Proven PSA technology

* Simple engineering design

* International standardized manufacturing techniques

* More advanced and more economical air separation modules

* Patented REFLUX composition control system saves energy cost

* Automated Operation

* Turn-key solution and pre-commissioned

* Skid mounted design, easy installation

* Long Life and low maintenance
