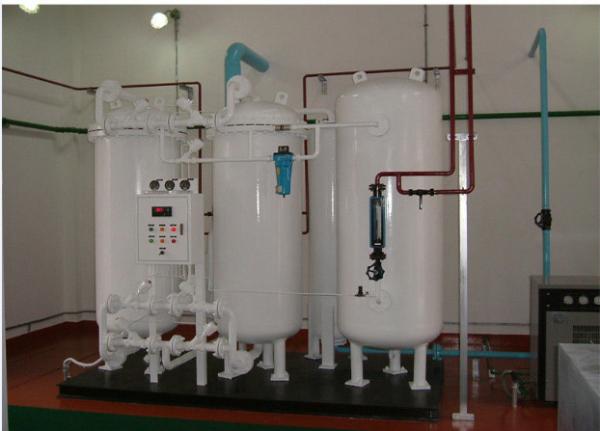

Automatic Nitrogen Generating Equipment / Food Nitrogen Generation Unit
Automatic Nitrogen Generating Equipment / Food Nitrogen Generation Unit
Specifications
Brand Name :
SINCE
Model Number :
PN
Certification :
CE,ABS,CCS,BV,DNV,ASME,GOST,
Place of Origin :
Suzhou, China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets /per year
Delivery Time :
2 months after received down payment
Packaging Details :
Exported wooden case
Type :
Nitrogen Generating Equipment
Capaicty :
5-5000 Nm3/h
Purity :
95%-99.9995%
Feature :
Automatic
Operate power :
1 KW
Application :
Food
Description

Automatic Nitrogen Generating Equipment / Food Nitrogen Generation Unit

Nitrogen Generating Equipment Principle

When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and

adsorptive capacity to separate oxygen from nitrogen on carbon molecular sieve. When air is

compressed to 0.8MPa, air source enters in pressure-swing adsorption tower for separation after

being purified through dry and oil-water separation process (filter). Oxygen molecules are

diffused and adsorbed in carbon molecular sieve under pressure. Non-adsorbed nitrogen

is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged

in adsorption tower under depressurization. Moreover, adsorbent can be recycled.

Nitrogen Generating Equipment Application:

1)Food preservation by filling in nitrogen, agitation of beverages.

2)Nitrogen protection and filling of injection solution,transfusion and oral liquid in pharmacy industry

3)Chemical and new material industries: chemical ,urethane elastic fiber, rubber, plastic, tyre,

polyurethane, biological technology, intermediate , etc.

4) Electronic industry: peak welding, circumfluence welding, piezoelectricity, electronic porcelain,

electronic copper tape, battery, electronic alloy material , etc.

Nitrogen Generating Equipment Main Technical Parameters :

Nitrogen Capacity/Flow rate: 3-3000Nm³/h

Nitrogen Purity: 95%-99.9995% (95%, 97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.999%, 99.9995%)

Nitrogen Generating Equipment Specifications:

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%

0.5

1800*1400*1800

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%

0.5

2000*1700*2250

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%

0.5

2600*2200*2850

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%

0.5

2800*2200*2500

PN-80-49

80

99.99%

0.5

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%

0.5

3200*1400*2800

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%

0.5

3500*1500*2800

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly
