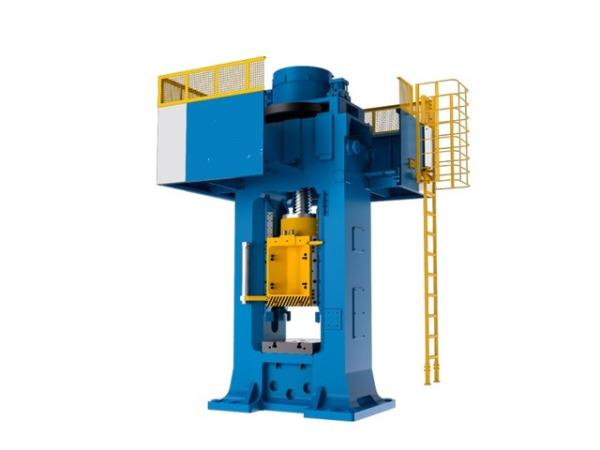

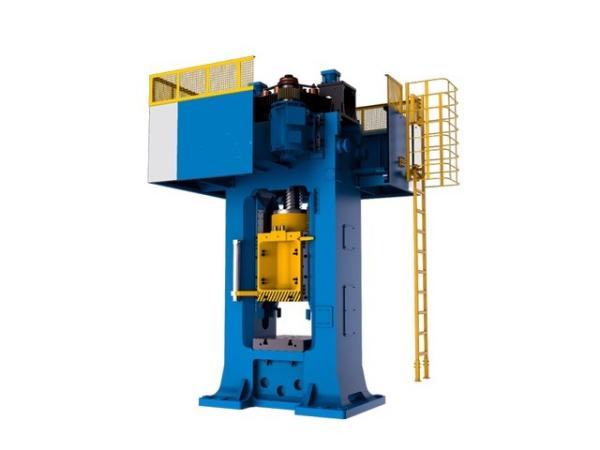

Direct Drive CNC Electric Screw Press Machine Metal Power Hammer Hot Forging Press J58K-1000
Direct Drive CNC Electric Screw Press Machine Metal Power Hammer Hot Forging Press J58K-1000
Direct Drive CNC Electric Screw Press Machine Metal Power Hammer Hot Forging Press J58K-1000
Direct Drive CNC Electric Screw Press Machine Metal Power Hammer Hot Forging Press J58K-1000
Specifications
Brand Name :
PSL
Model Number :
J58K-1000
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10-20 sets per month
Delivery Time :
120-150 working days
Packaging Details :
Naked in container
Condition :
New
Product name :
Electric Screw Punching Press machine
Name :
CNC Electric Screw Press
Type :
J58K-1000
Application :
Metal Hot Stamping and Punching
Key Selling Points :
Hot forging, high accuracy, automatic production line
Usage :
Processing Metal, high speed auto stamping
Function :
Electric screw press, Hot forging automatic punching line
Nominal Pressure :
2500KN - 40000KN, 250T - 4000T
Cnc or not :
CNC
Control :
Touch screen, PLC control
Stroke of slide :
500mm
Stroke speed :
18spm
Max. Die set height :
920mm
Gross working capacity :
170KJ
Power source :
AC 120kw
driving :
Motor+screw direct-drive
Color :
Gray White or customized
Voltage :
380V,as your requirements
After-sales service provided :
Video technical support online
Warranty :
One Year
Description

J58 Direct-Drive CNC Electric Screw Press Precision Hot Forging Press machine

Main Features,

Designed by German Schuler team, unique variable frequency and direct-drive motor is adopted;

AC permanent magnet synchronous Motor rotor is directly connected to flywheel, maintenance is much easier without intermediate driving parts;

High rigidity frame, small deformation;

High sensitivity hydraulic overload protection device;

Main bolt and flywheel are connected by clearance-free pin;

High Precision energy control, good operation stability and good consistency of products;

Super long UX" guide rail, high precision retentivity, strong load deviation resistance;

Man-machine interface facilitates setting of parameters like blow energy and etc.

Programmable cam controller, to ensure convenient operation and reliable performances;

Suitable for die forging, precision punching, calibration, bending, coining and etc;

Main Technical Specification

Technical Data

Items

Model

 J58-250 J58-315 J58-400 J58-700 J58-1000

Nominal pressure		 kN 2500 3150 4000 7000 10000
Permissible continuous press force (centric load) kN 4000 5000 6400 11000 16000
Maximum die-to-die btow force (centric load) kN 5000 6300 8000 14000 20000
Gross working capacity kJ 10 24 32.5 90 170
Stroke of Slide mm 350 380 400 450 500
Stroke S.P.M 29 24 23 20 18
Distance bed -slide min. mm 730 750 760 780 920
Bolster L-R mm 540 580 620 750 860

F-B		 mm 570 610 650 860 920
Technical Data
Items
Model		 J58-1600 J58-2000 J58-2500 J58-3150 J58-4000
Nominal pressure kN 16000 20000 25000 31500 40000
Permissible continuous press force (centric load) kN 26000 32000 40000 50000 64000
) Maximum die-to-die blow force (centric load) kN 32000 40000 50000 63000 80000
Gross working capacity kJ 300 450 560 700 1000
Stroke of Slide mm 560 600 630 680 720
Stroke S.P.M 17 16 16 15 14
Distance bed -slide min. mm 1080 1200 1300 1450 1460
Bolster L-R mm 1000 1100 1200 1320 1600
F-B mm 1080 1180 1280 1400 1990
