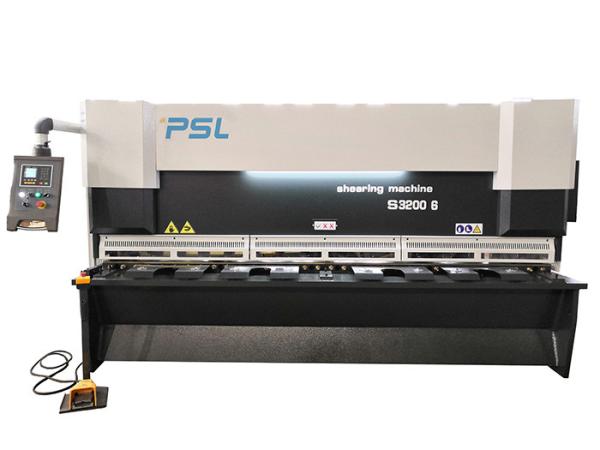

Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic
Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic
Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic
Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic
Specifications
Brand Name :
PSL,OEM
Model Number :
QC11K-6x3200
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30-45days
Packaging Details :
Naked into container
Name :
Hydraulic Guillotine Shear
Condition :
New
Main motor :
Servo motor to save energy
Cutting material :
Metal Stainless Steel Carbon Steel Aluminum,MS/SS/GI etc steel plate
Throat gap :
100mm, 150-500mm
Control mode :
NC controller Estun E21s,ELGO P40,Delem DAC360T
Driving :
Inverter, servo driver
Back-gauge :
Ball screw + Linear guider, traveling 1000mm
Color :
White+Blue or customized
Voltage :
Customized,220V/380V/400V
Warranty :
2 Years
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Description
Servo main motor Automatic hydraulic Guillotine shearing machine
Main Features and characteristics,

1. Using computer CAD design. The frame, blades slider and other important parts are analyzed by ANSYS finite element analysis software to ensure the rationality and strength of the frame and structure. Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic

2. Introducing advanced European technology and adopting integrated hydraulic control system, it has good reliability. more reliable and easy for maintenance.Siemens motors, Allead pumps and Rexroth hydraulic valves are used ont the Shear.

Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic

3. The new high-power servo motor is applied to our hydraulic plate shearing machine. When the machine is not working, the motor is in the stop state, which can not only prevent the oil temperature of the oil tank from rising too fast, but also save electricity, save energy and environmental protection and reduce production costs.

Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic

4. The Hydraulic Shear is a variable Rake Action machine which is produced in a variety of cutting lengths & capacity. Back-gauge beam moving is controlled by NC/CNC controller. Cutting angle and up/low blades clearance can be operated by NC/CNC controller according to different plates thickness. Ball screw and linear guider are used in Back-gauge. It improves the shearing effective and shearing quality.

Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic

5. High accuracy back gauge with ball screw and linear guider.The distance of the backgauge is adjusted by AC motor or servo motor and is easy adjusted and displayed by NC controller E21s or TP-07 or Delem DAC310 360T.

Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic

6. Equipped lighting-alignment, so easy to align when shearing. special for some users who needs measure different sizes in two sides firstly, and then cut down.

Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic

6. It adopts professional gate type tool holder structure. Safe fences have been assemblied onto the machine to avoid hands enter the holddown and cutting area, and ensure the operation safety.

Plate Sheet Cutting Shearing Machine 4 Feet Guillotine Metal Shear Automatic

Specifications of Shear QC11K-6x3200,

Specification QC11K-6x3200
Max. Cutting thickness

6mm (Mild steel)

3mm (stainless steel)
Max. Cutting width 3200mm
Strokes 9-30/min
Backgauge stroke 10-750mm
Shear angle 0.5-2.5Degree
Depth of throat 150mm
Height of working table 750mm
Width of working table 600mm
Main servo motor power 7.5kw
Dimensions: 3750x1770x2150
Net weight Appro. 5.8Tons
Volt.

380V,50HZ

Standard configures,

Optional model Manufacturer Remarks
CNC system E21s
TP-07
DAC310
DAC360


ESTUN

DELEM
Hydraulic system Main solenoid valves

Rexroth

Jianhu
Back gauge

AC motor
Servo motor (Optional)

Ball screw + Linear guider

PSL

Taiwan
Oil pump Inner Gear oil pump

Allead
Main power

Servo motor (Optional)

 VECHI
Front work table Special pallet and ball rack PSL
Security Front steel fences + Back safe sensor protection (Optional) PSL
Back supporting device Pneumatic support frame (Optional) PSL
Blade clearance Motorized
NC controller operating		 PSL
electric Schneider Relay,Contactor Schneider
Foot switch Korean Kaikun vertical switch Korean Kaikun
Deep throat 150mm -500mm(Optional) PSL

QC11K series main parameters,

Model

Max.

Tkn.

 Yield strength Max. Length Angle X.Stroke Power L*W*H(mm) Weight
QC11K-6*2500 6mm ≤450kN/cm 2500mm 0.5-2.5° 750mm 7.5kW 3140*1740*2040 4800Kg
QC11K-6*3200 6mm ≤450kN/cm 3200mm 0.5-2.5° 750mm 7.5KW 3750*1770*2150 5800Kg
QC11K-6*4000 6mm ≤450kN/cm 4000mm 0.5-2.5° 750mm 11KW 4830*1840*2150 7500Kg
QC11K-6*5000 6mm ≤450kN/cm 5000mm 0.5-2.5° 750mm 15KW 5830*1840*2150 13000Kg
QC11K-6*6000 6mm ≤450kN/cm 6000mm 0.5-3° 750mm 15KW 6480*2100*2300 18000Kg
QC11K-8*2500 8mm ≤450kN/cm 2500mm 0.5-2.5° 750mm 11KW 3040*1700*1700 5500Kg
QC11K-8*3200 8mm ≤450kN/cm 3200mm 0.5-2.5° 750mm 11KW 3860*1700*1700 6200Kg
QC11K-8*4000 8mm ≤450kN/cm 4000mm 0.5-2.5° 750mm 11KW 4640*1700*1700 7900Kg
QC11K-8*5000 8mm ≤450kN/cm 5000mm 0.5~3° 750mm 18.5KW 5400*2400*2000 13500Kg
QC11K-8*6000 8mm ≤450kN/cm 6000mm 0.5~3° 750mm 22KW 6480*2100*2350 19000Kg
QC11K-8*8000 8mm ≤450kN/cm 8000mm 0.5~3° 750mm 22KW 8580*2130*2350 29500Kg
QC11K-10*2500 10mm ≤450kN/cm 2500mm 0.5-2.5° 950mm 15KW 3040*1800*1700 6500Kg
QC11K-10*3200 10mm ≤450kN/cm 3200mm 0.5-2.5° 950mm 11KW 3850*1830*1900 7500Kg
QC11K-10*4000 10mm ≤450kN/cm 4000mm 0.5-2.5° 950mm 15KW 4650*2100*2000 11000Kg
QC11K-10*5000 10mm ≤450kN/cm 5000mm 0.5~3° 950mm 15KW 5750*2100*2000 16000Kg
QC11K-10*6000 10mm ≤450kN/cm 6000mm 0.5~3° 950mm 15KW 6500*2100*2300 24000Kg
QC11K-10*8000 10mm ≤450kN/cm 8000mm 0.5~3° 950mm 15KW 6800*2100*2300 32000Kg
QC11K-13*2500 13mm ≤450kN/cm 2500mm 0.5-2.5° 1000mm 15KW 3285*1830*2390 7500Kg
QC11K-13*3200 13mm ≤450kN/cm 3200mm 0.5-2.5° 1000mm 15KW 3855*1830*2390 9500Kg
QC11K-13*4000 13mm ≤450kN/cm 4000mm 0.5-2.5° 1000mm 18.5KW 4850*1830*2390 12500Kg
QC11K-13*6000 13mm ≤450kN/cm 6000mm 0.5~3° 1000mm 30KW 6850*1930*2650 30000Kg
QC11K-13*8000 13mm ≤450kN/cm 8000mm 0.5~3° 1000mm 30KW 8950*2130*2850 46000Kg
QC11K-13*9000 13mm ≤450kN/cm 9000mm 0.5~3° 1000mm 45KW 9980*2130*2850 65000Kg
QC11K-13*10000 13mm ≤450kN/cm 10000mm 0.5~3° 1000mm 45KW 11050*2500*3100 85000Kg
QC11K-16*2500 16mm ≤450kN/cm 2500mm 0.5~3° 1000mm 22KW 3440*1940*2830 9500Kg
QC11K-16*3200 16mm ≤450kN/cm 3200mm 0.5~3° 1000mm 22KW 4010*1940*2830 11000Kg
QC11K-16*4000 16mm ≤450kN/cm 4000mm 0.5~3° 1000mm 30KW 5010*1980*2830 15500Kg
QC11K-16*5000 16mm ≤450kN/cm 5000mm 0.5~3.5° 1000mm 30KW 5900*2600*2830 25000Kg
QC11K-16*6000 16mm ≤450kN/cm 6000mm 1~3.5° 1000mm 37KW 6900*2600*2830 36000Kg
QC11K-16*8000 16mm ≤450kN/cm 8000mm 1~3.5° 1000mm 45KW 8900*2900*3430 75000Kg
QC11K-20*2500 20mm ≤450kN/cm 2500mm 1~3° 1000mm 30KW 3440*1980*2830 14000Kg
QC11K-20*3200 20mm ≤450kN/cm 3200mm 1~3° 1000mm 30KW 4010*1900*2830 17000Kg
QC11K-20*4000 20mm ≤450kN/cm 4000mm 1~3.5° 1000mm 37KW 4850*2600*2900 22000Kg
QC11K-20*6000 20mm ≤450kN/cm 6000mm 1~3.5° 1000mm 55KW 6700*3000*3000 54000Kg
QC11K-30*2500 30mm ≤450kN/cm 2500mm 1~3.5° 1000mm 45KW 3440*1900*2830 25000Kg
QC11K-30*3200 30mm ≤450kN/cm 3200mm 1~3.5° 1000mm 45KW 4200*1900*3000 34000Kg

Remarks: This parameter is based on 2019 system. If the parameters are not updated in time, please understand nd contact with us by Chat online or email. THANKS.
