Mini Full Electric Servo CNC Press brake ECO Bending machine 10T 600mm

Application Introduction:

1. Significant energy saving

100% ELECTRIC SERVO PRESS BRAKE = ECO-FRIENDLY! ENERGY SAVINGS!

Small power when the ram goes up without load, and almost no power when the ram stops.

2. Environmental protection and no pollution

The pure electric servo bending machine does not use hydraulic oil, So there is no waste oil treatment and pollution.

3. The Ram has fast speed and high production efficiency than traditional hydraulic types.

4. High bending accuracy

5. Low maintenance cost

The transmission system of pure electric servo bending machine is simple, there is basically no maintenance cost, and only regular lubrication is required.

6. The Mini type Electric Servo Press Brake is installed 4 wheels, it can move and work in anywhere easily.

Main Features:

• Structure of this Press Brake

Complete steel-welded structure; left and right houses, working table are welded into a whole frame. and then the main frame is fixed on a strong mounted platform.

Small span high rigidity slider design, rigidity is 50% higher than ordinary slider structure.

• All-electric servo system

Adopts the most advanced full close loop servo synchronized controlling system

The machine’s servo motors drastically reduce energy consumption, making them environmentally friendly.In addition to this, the motors themselves do not require hydraulic oil, ensuring a cleaner, safer workspace.

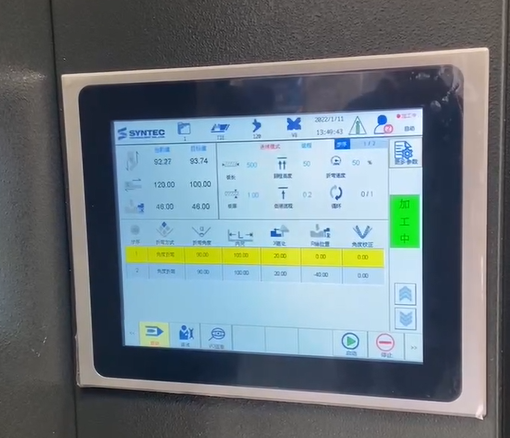

• Professional CNC system

Delem CNC system DA53T,DA58T even DA66T can be used by default and can be customized.

And there are also more economic choose, as LZ1000, SYNTEC.

• Angle programming|graphic programming

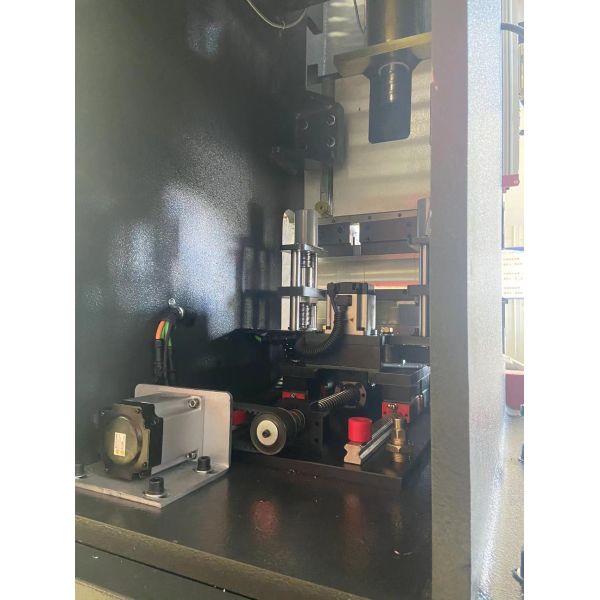

• Precision back gauge structure

The machine is suitable for the production with multi-steps of bending with high bending accuracy. Adopt E type back gauge, with sufficient mechanical strength and stiffness.

X-axis & R-axis adopt ball screw and linear guide, which is driven by servo motors, and the back gauge is positioned quickly and accurately.

• Upper and lower tools standard segment

• Reliable electrical system

Electrical component (Relay, Contactors) France Schneider

Dustproof cabinet grade IP54 to guarantee the high quality electrical system

Function of open door and power off

High quality Estun servo motor drivers

• Laser safety guarding can be optional.

EPB series parts

Adopts the most advanced full close loop servo synchronized controlling system
